3-38

Profile Software User's Guide

CONFIDENTIAL – Covered by ADS Software License Agreement

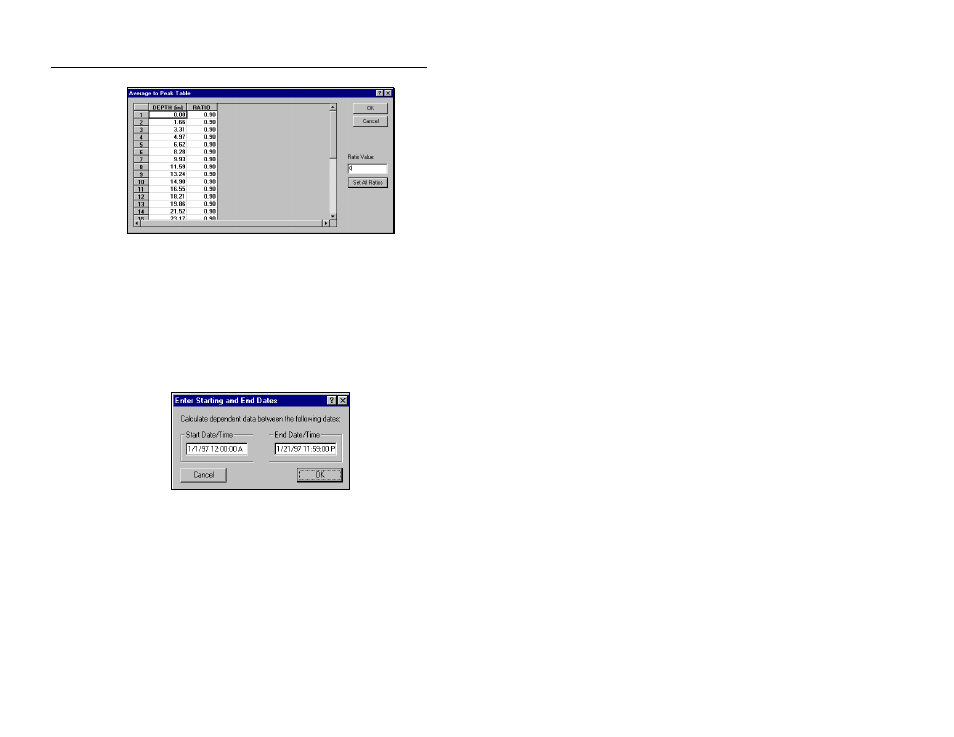

Average-to-Peak Table dialog

6. Edit the table either by entering individual depth and

corresponding ratio values directly to the table or setting all of
the ratios in the table to a single value. To set all of the ratios
to a single value, enter a value into the Ratio Value field and
then select the Set All Ratios button.

7. Select OK to close and exit the Average-to-Peak Table

window.

The Enter Starting and End Dates dialog displays.

Enter Starting and End Dates dialog

8. Regenerate any dependent data affected by depth and ratio

change(s) by entering the dates of the affected time period into
the Start Date/Time and End Date/Time fields.

The dependent data regenerates.
