Ultrasonic Device

Edit the ultrasonic device in the following way. These instructions
apply to all monitors using an ultrasonic device except for the
FlowShark. For instructions on editing the ultrasonic device
parameters for a FlowShark monitor, refer to Ultrasonic Device
(FlowShark) on page 2-108.

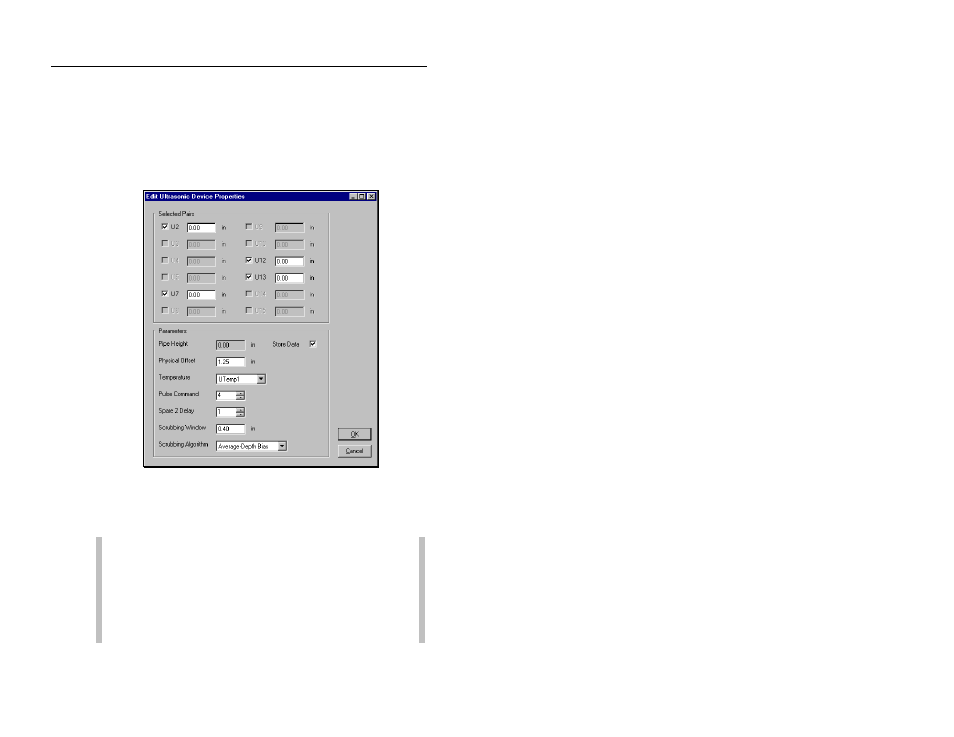

Edit Ultrasonic Device Properties

• Selected Pairs Select the checkboxes corresponding to the

four ultrasonic pairs you want to log. Profile defaults to pairs
2, 7, 12, and 13.

Note: The field beside each pair represents the electronic
offset for that pair. The electronic offsets represent the
confirmation values Profile applies to the raw readings to
calculate depth. These offsets default to 0 in Profile.
ADS does not recommend entering electronic offsets for
the ultrasonic pairs in this dialog. The confirmation
process performed after monitor activation enables you to
