Cpu operation and dma operation dreq0, Is programmed for edge-sense, Figure 49. tend0 output timing diagram – Zilog Z80180 User Manual

Page 123: Dma transfer (reference figure 49)

Text mode
Original mode

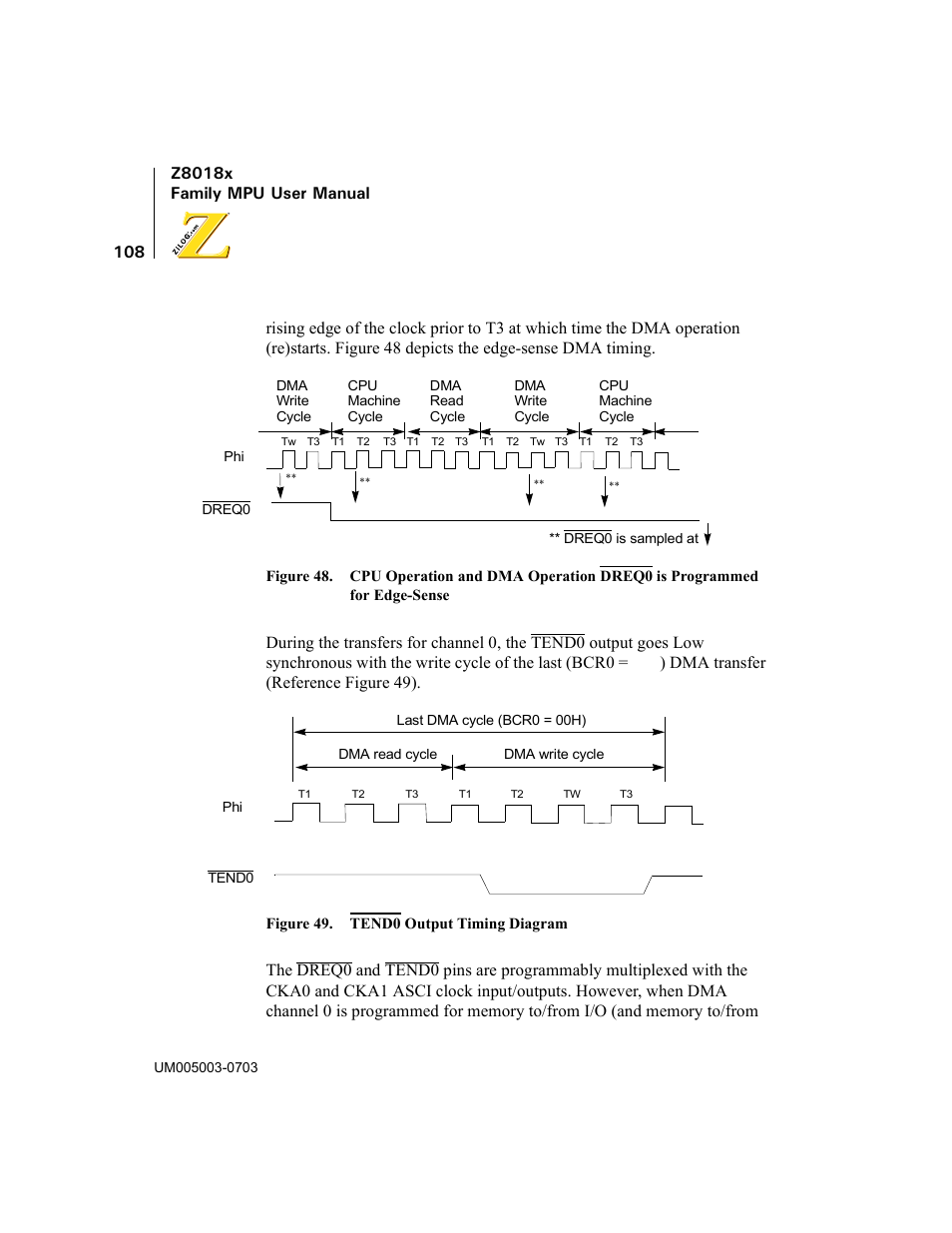

Cpu operation and dma operation dreq0, Is programmed for edge-sense, Figure 49. tend0 output timing diagram | Dma transfer (reference figure 49) | Zilog Z80180 User Manual | Page 123 / 326
