Chapter 12: File Downloads and Uploads
Section II: Advanced Operations 198

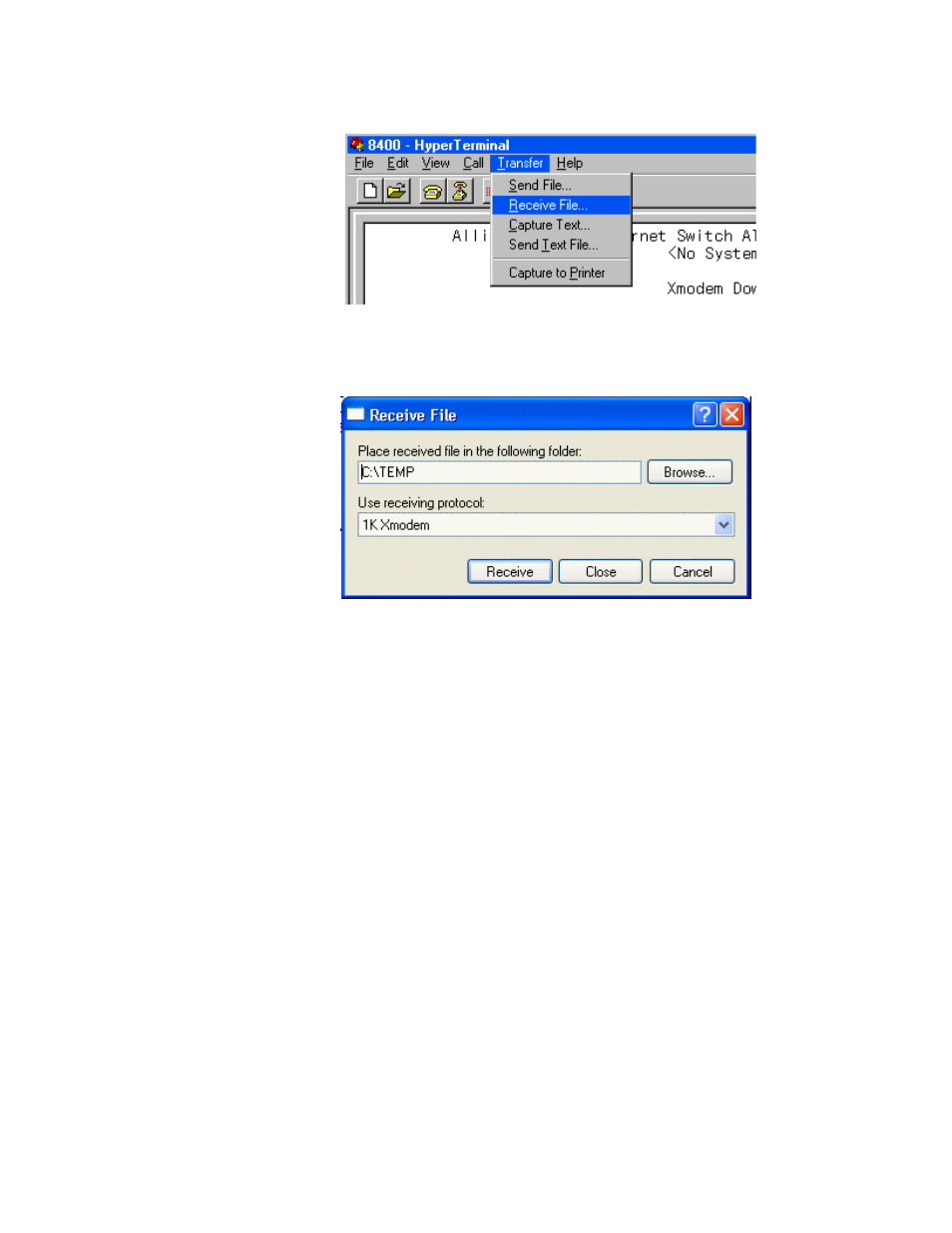

11. From the HyperTerminal main window, select Receive File from the
Transfer pull-down menu, as shown in Figure 58.
Figure 58 Local Management Window
The Receive File window is shown in Figure 59.
Figure 59 Receive File Window
12. Click Browse and specify the location on your computer where you
want the system file stored.
13. Click in the Protocol field and select as the transfer protocol either
Xmodem or, for a faster download, 1K XModem.
14. Click Receive.
15. When prompted, enter a file name for the This is the name given the
file when stored on your workstation. When naming a file, be sure to
give it an extension that corresponds to its file type. The extensions
and file types are listed in Table 2 on page 190.
The switch uploads the file from the switch to your computer. This
completes the procedure for uploading a file from the switch from a
local management session using Xmodem.
