Chapter 12: File Downloads and Uploads
Section II: Advanced Operations 192
12. Click Browse and specify the location and system file to be
downloaded onto the switch.
13. Click in the Protocol field and select as the transfer protocol either
Xmodem or, for a faster download, 1K XModem.
14. Click Send.
The file immediately begins downloading onto the switch. The
Xmodem File Send window in Figure 54 displays the status of the
download.

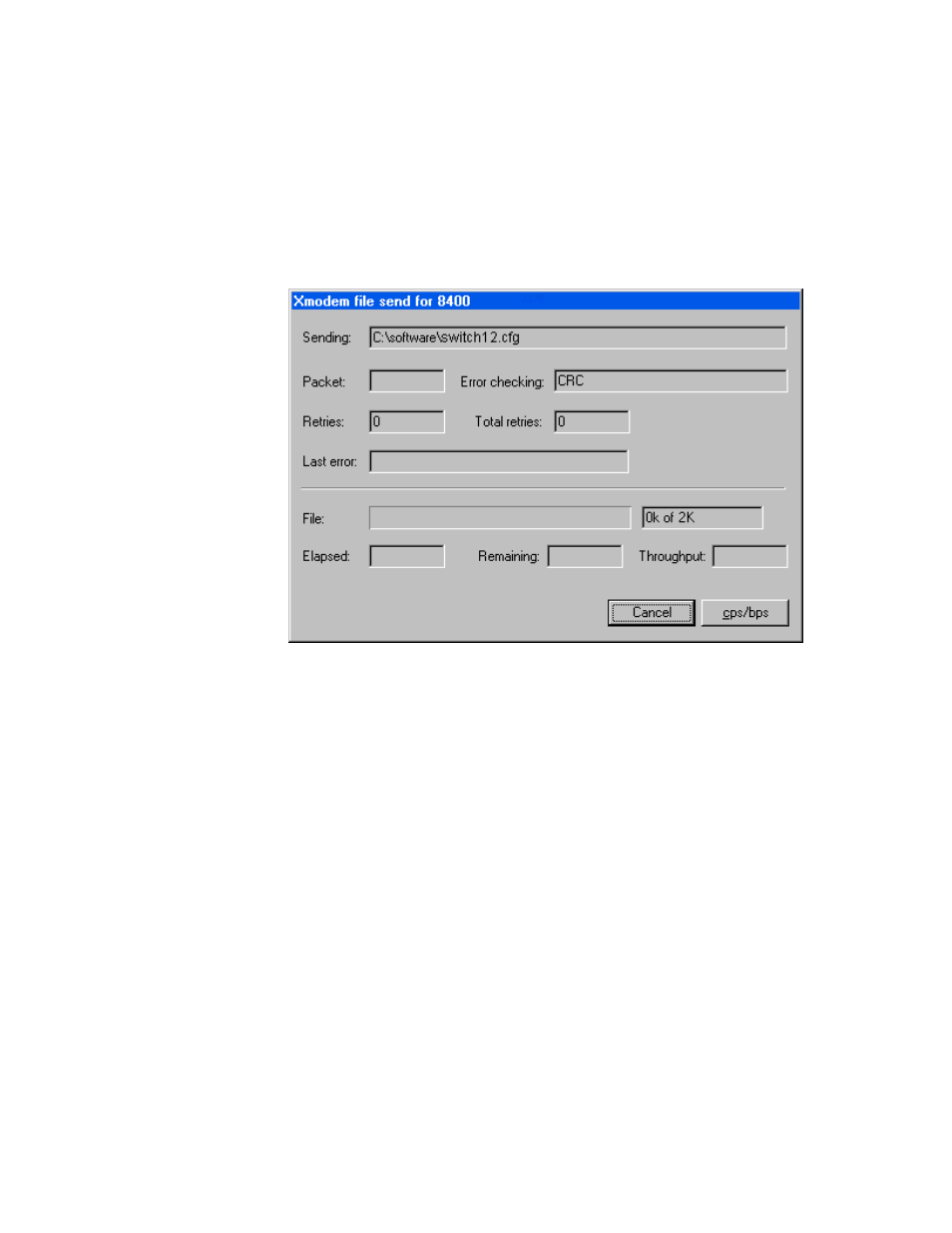

Figure 57 XModem File Send Window
The download is complete when the Downloads and Uploads menu
is displayed.
15. If you downloaded a new configuration file and you want to make it
the switch’s active boot file, go to Setting the Active Boot
Configuration File on page 166. If you downloaded a CA certificate
and need to add it to the certificate database, refer to Adding a
Certificate to the Database on page 672.
