For details about double-press operation settings of
the [BKGD] button, see “Setting the Button and Fader
Lever Operation Mode” (page 432).
For details about settings of the [ALL] button, see
“Setting the Operation Mode of the [ALL] Button in
the Transition Control Block” (page 433).
More than one next transition selection buttons can be
pressed and lit at the same time.
3
To change the key overlay sequence for a transition,
set the key priority for after the transition.
For details about the method of operation, see “Key
Priority Settings” (page 87).
4
Select the video for after the transition executes.
Select the background video using the background B
bus cross-point buttons.
To insert a key, select the key signal, and make key
settings as required.
For details about key settings, see “Keys” (page 108).
To carry out an instantaneous cut transition, skip to
step
7 .
5
Select the transition type using the transition type
selection buttons.
To switch gradually to the new video overlaid on
the current video: Press the [MIX], [NAM],
[SUPER MIX], or [PST COLOR MIX] button,
turning it on.
To switch from the current video to the new video
using a wipe: Press the [WIPE] or [DME] button,
turning it on.
To play a frame memory clip while switching from
the old video to the new video: Press the
[FM1&2 CLIP], [FM3&4 CLIP], [FM5&6 CLIP],
or [FM7&8 CLIP] button corresponding to the
frame memory clip to use, turning it on.
You can also use the Misc >Transition menu to select
a transition type for a switcher bank
(see page 90) .
You can change the assignment of the transition
selection buttons in the transition control block in the
Setup menu
(see page 412) .
6
Make the required settings, according to the selected
transition type.
• Super mix settings (see page 90)
• Preset color mix settings (see page 90)
• Wipe settings (see page 142)
• DME wipe settings (see page 161)
• Clip transition settings (see page 181)
• Transition rate (the time from the beginning of a
transition to its completion) settings (see page 92)
Using transition preview mode (see page 99) , you can
check the transition on the preview monitor.
When you have selected a wipe or DME wipe as the
transition type, set the transition execution range
(see
page 94) .
7
Carry out the transition in the transition execution
section.
To switch video gradually due to a mix or wipe, for
example: Press the [AUTO TRANS] button, or
operate the fader lever.
When you press the [AUTO TRANS] button, the
transition is executed at the set transition rate.
To switch video instantaneously: Press the [CUT]
button.
For details, see “Executing a Transition” (page 92).
Operations on the transition control block
(simple type)

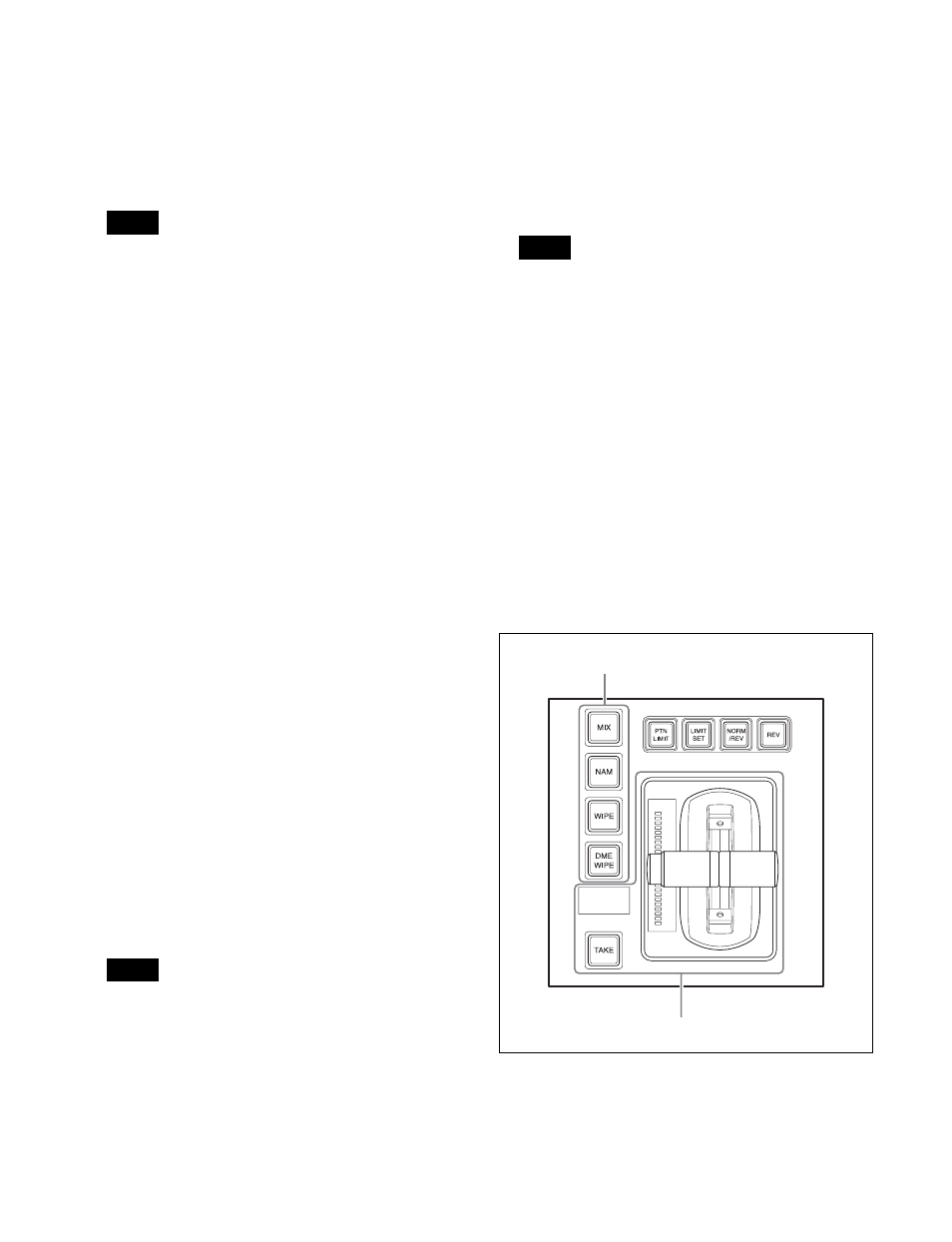

Transition control block (simple type)
Note
Note
Note
Transition execution section
Transition type selection buttons
