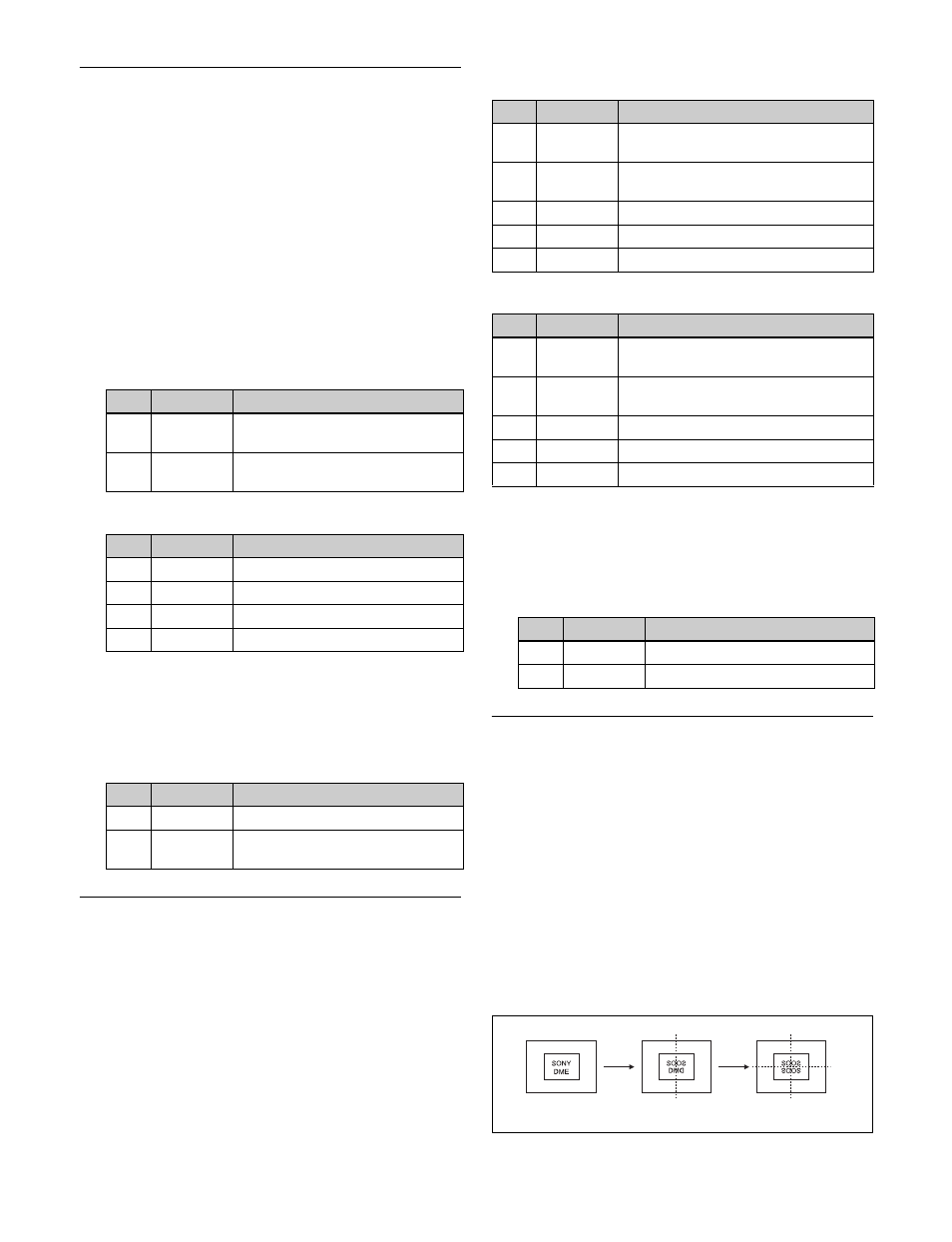

256
Split Settings
You can set the degree to which the image is split, the split
positions, and other parameters.
Applying the Split effect
1
In the group of the Non Linear >Split menu
(4141.11), select the separation method.
Single: Leave gaps between splits as-is.
Double: Fill gaps between splits with the same image.
2
Set the following parameters.
To set the split position
1
Press [Position].
2
Set the following parameters.
Split Slide Settings
You can set the degree of transition, the degree of
randomness in the distance moved by each block, the
degree of sliding, block width, block angle, and other
parameters.
Applying the Split Slide effect
In the Non Linear >Split Slide menu (4141.12), set the
following parameters.
To set the partition position
1
Press [Position].
2
Set the following parameters.
Mirror Settings
You can create an image reflected in the directions left to
right, right to left, bottom to top, top to bottom, or any
combination of directions. You can also set the position of
the border between the original and reflections.
Applying the Mirror effect
In the Non Linear >Mirror menu (4141.13), set the
reflection method (multiple selection supported).
Left to Right: Reflect left side on right.
Right to Left: Reflect right side on left.
Top to Bottom: Reflect top side on bottom.
Bottom to Top: Reflect bottom side on top.
Parameter group [1/2]
No. Parameter Adjustment
1 Transition
H Degree of left and right separation
2 Transition
V Degree of top and bottom
separation
Parameter group [2/2]
No. Parameter Adjustment
1 Top Offset of top edge
2 Left Offset of left edge
3 Right Offset of right edge
4 Bottom Offset of bottom edge
No. Parameter Adjustment
1 H Degree of left and right separation
2 V Degree of top and bottom
separation
Parameter group [1/2]
No. Parameter Adjustment
1 Transition
H Degree of transition in horizontal
direction
2 Random H Degree of randomness in distance
moved by blocks in horizontal direction
3 Skew H Degree of skew in horizontal direction
4 Width H Horizontal width of partition
5 Angle Angle of partition line
Parameter group [2/2]
No. Parameter Adjustment
1 Transition
V Degree of transition in vertical direction
2 Random V Degree of randomness in distance
moved by blocks in vertical direction
3 Skew V Degree of skew in vertical direction
4 Width V Vertical width of partition
5 Angle Angle of partition line
No. Parameter Adjustment
1 H Horizontal partition position
2 V Vertical partition position
Left to Right Top to Bottom
