23

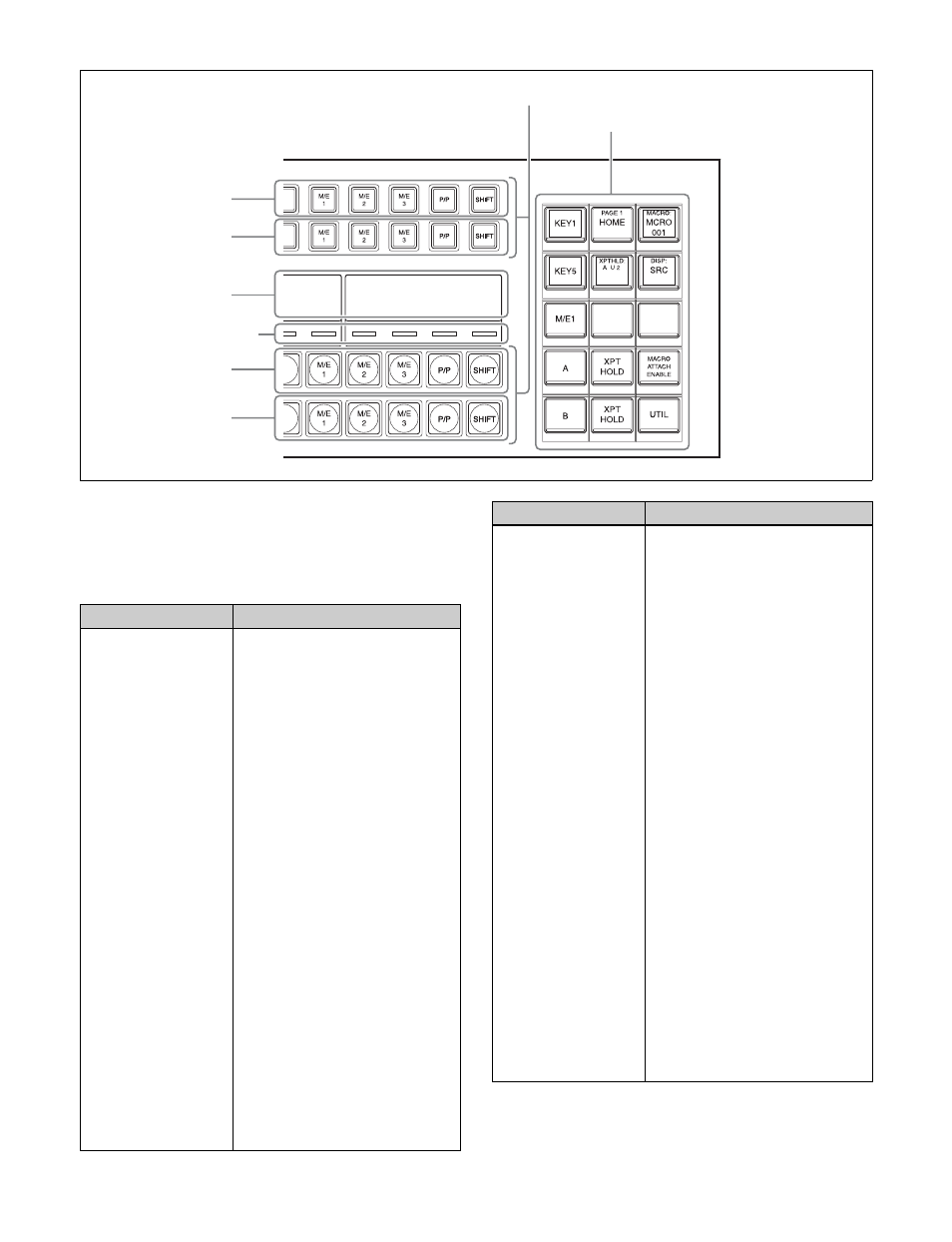

a
Button rows
Used as cross-point buttons for selecting signals and
functions.
The 1st row buttons can also be used as 2nd row delegation
buttons (key/AUX bus delegation mode).
a
Button rows
b
Display
c
Cross-point
indicators
d
Cross-point pad
1st row
2nd row
3rd row
4th row
Name
Description
1st row
• Selects the following bus signals
selected using the cross-point
pad delegation buttons.
Key bus
a)
, utility bus, DME
external video bus, DME utility
bus
• Selects the following functions
when utility/shotbox bank is
selected using the cross-point
pad delegation buttons (utility/
shotbox mode).
b)
Utility command, menu shortcut,
macro recall, shotbox recall
• Selects the shifted signal on the
background A bus when the
[DUAL BKGD BUS] button of the
cross-point pad is lit (dual
background bus mode).
• Selects the DME external video
bus signal while the [UTIL] button
of the cross-point pad is pressed
(utility bus mode).
c)
• Selects the bus signal or utility/
shotbox function
b)
selected by a
delegation button on the cross-
point pad when free assign mode
is set.
• Selects the bus or utility/shotbox
bank when key/AUX bus
delegation mode is set.
2nd row
• Selects the following bus signals
selected using the cross-point
pad delegation buttons.
Key bus
a)
, utility bus, DME
external video bus, DME utility
bus
• Selects the following functions
when utility/shotbox bank is
selected using the cross-point
pad delegation buttons (utility/
shotbox mode).
b)
Utility command, menu shortcut,
macro recall, shotbox recall
• Selects the shifted signal on the
background B bus when the
[DUAL BKGD BUS] button of the
cross-point pad is lit (dual
background bus mode).
• Selects the DME utility 1 bus or 2
bus signal while the [UTIL] button
of the cross-point pad is pressed
(utility bus mode).
c)
• Selects the bus signal or utility/
shotbox function
b)
selected by a
delegation button on the cross-
point pad when free assign mode
is set.
• Selects the bus signal or utility/
shotbox function
b)
selected by
the 1st row delegation button
when key/AUX bus delegation
mode is set.
Name
Description
