31
For details about operation of external devices, see
“Control of VTRs and Disk Recorders” (page 288).

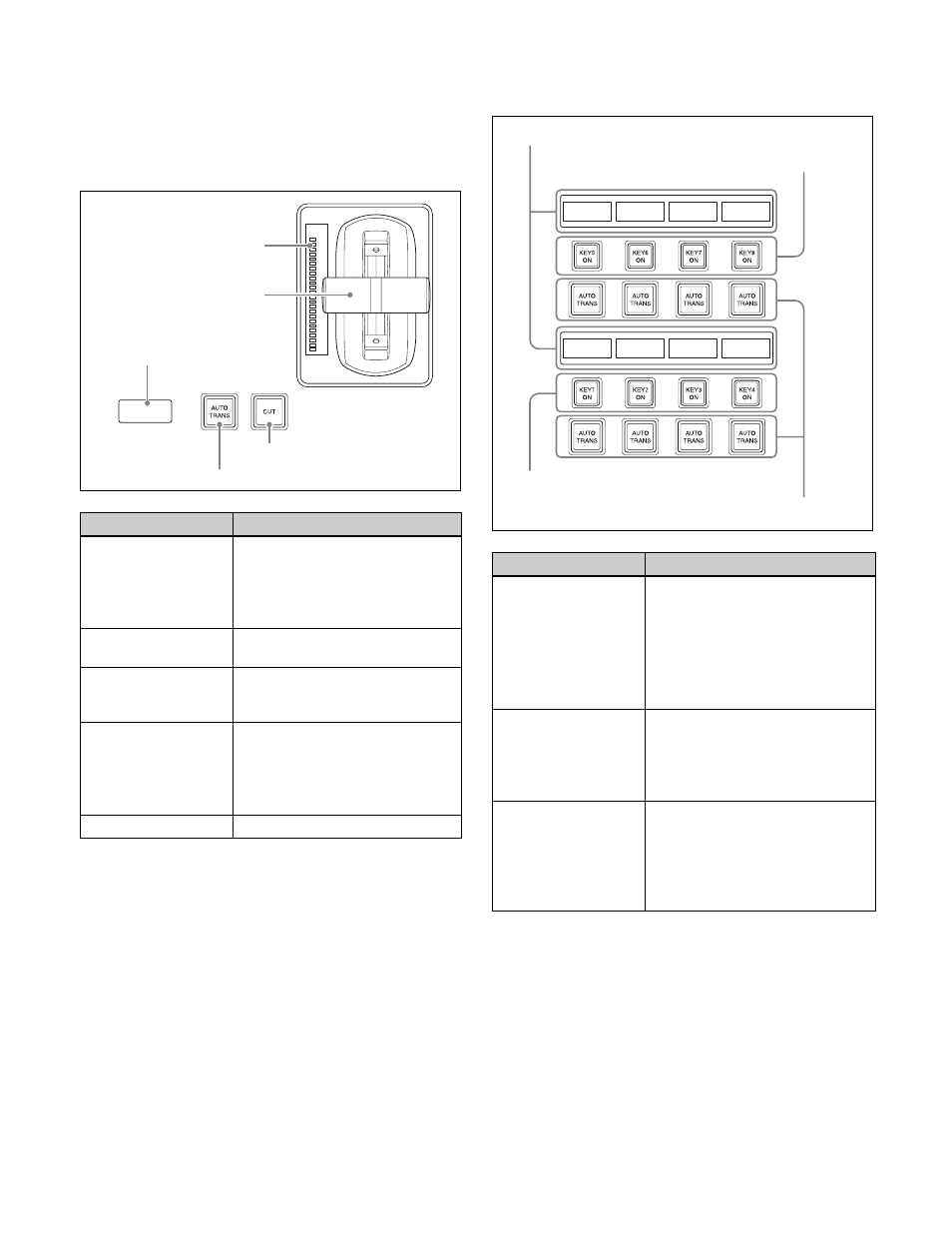

c Transition execution section
This section is used to execute transitions and check the
progress of the transition.
d Independent key transition execution section
This section executes independent key transitions.
You can change the position of the key 1 to key 8 operation
buttons in the Setup menu. However, the [AUTO TRANS]
button is assigned with the [KEYx ON] (x = 1 to 8) button
of the same key as a set.
For details, see “Setting Transition Control Block Button
Assignments” (page 412).
Name Description
Fader lever • Move this up or down to carry out
the transition.
• Press the [KF] button, turning it
on, to enable the fader lever to be
used as a keyframe fader.
Transition indicator Displays the transition progress
using LEDs.
Transition rate display Displays the configured transition
rate (the time from the beginning of
a transition to its completion).
AUTO TRANS (auto
transition) button • Executes an auto transition with
the set transition rate and
transition type.
• During the transition, the button
is lit amber.
CUT button Executes an immediate transition.
Transition
indicator
Fader lever
Transition rate display
AUTO TRANS button
CUT button
Name Description
Independent key
transition display
section Displays the following information
for key 1 to key 8.
Key material name (key source
name when a key source is
selected on the key bus of the
cross-point control block), DME
channel or resizer being used,
transition rate, and transition type
KEY1 ON to KEY8 ON
buttons • Inserts or removes the key
instantaneously.
• If a key is currently inserted, the
corresponding key button is lit
amber.
AUTO TRANS (auto
transition) buttons • Inserts or removes the key
automatically, for key 1 to key8,
with the set transition rate and
transition type.
• During the transition, the button is
lit amber.
Independent key transition display section
KEY1 ON to KEY4 ON buttons
KEY5 ON to KEY8 ON buttons
AUTO TRANS buttons
