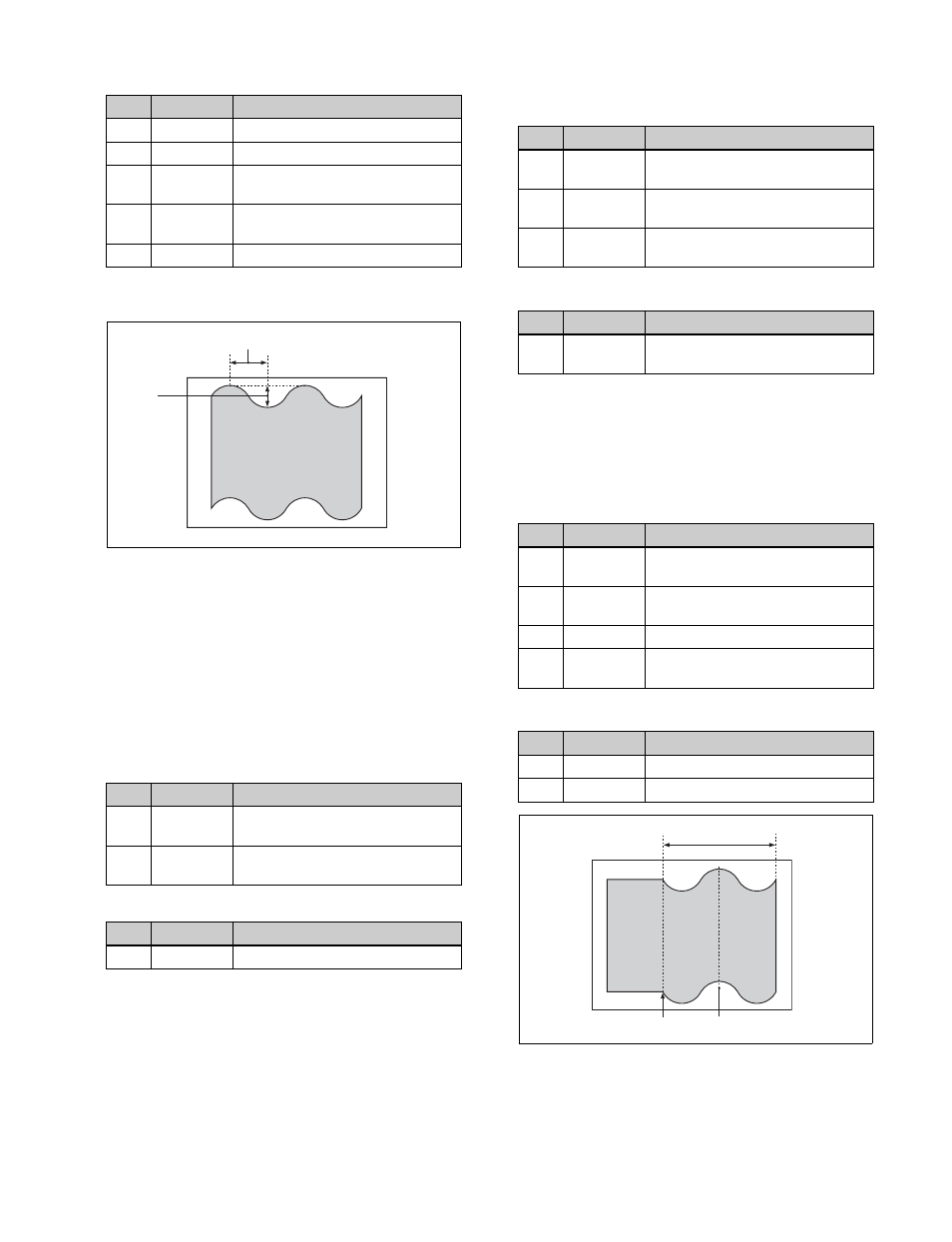

251
When [Size] is selected
a) Set when [Lock] is enabled.
b) Set when [Lock] is disabled.
To stop the wave
Press [Lock], turning it on.
The wave alternately stops and starts each time the button
is pressed.
To select the waveform
1
Press [Form].
2
Set the following parameters.
When [H&V] is selected in the
When [Size] is selected in the
a) 1 (SINE): Sine wave
2 (PARABOLA): Parabolic wave
3 (TRIANGLE): Triangular wave
4 (RECTANGLE): Rectangular wave
5 (CIRCLE): Circular wave
6 (CUBIC): Cubic curve wave
To randomize the modulated waveform
1
Press [Random], turning it on.
2
Set the following parameters.
When [H&V] is selected in the
When [Size] is selected in the
To limit the wave range
1
Press [Range], turning it on.
2
Set the following parameters.
When [H&V] is selected in the
When [Size] is selected in the
To smooth the range envelope when the wave
range is limited
1
Press [Range Envelope], turning it on.
No.
Parameter
Adjustment
1
Amp H
Amplitude of wave
2
Freq H
Frequency of wave
3
Offset H
a)
Phase shift direction and offset of
wave in horizontal direction
4
Speed H
b)
Direction of travel and speed of
wave
5
Slant
Slant of wave
No.
Parameter
Adjustment
1
Form H
Type of waveform in horizontal
direction
a)
2
Form V
Type of waveform in vertical
direction
a)
No.
Parameter
Adjustment
1
Form H
Type of waveform
a)
Offset
Amp
No.
Parameter
Adjustment
1
Random H
Degree of randomness in
horizontal waveform modulation
2
Random V
Degree of randomness in vertical
waveform modulation
3
Random All Degree of randomness in both
vertical and horizontal directions
No.
Parameter
Adjustment
1
Random H
Degree of randomness in
waveform modulation
No.
Parameter
Adjustment
1
Size H
Level of horizontal wave
modulation
2
Offset H
Center point of horizontal
modulation range
3
Size V
Level of vertical wave modulation
4
Offset V
Center point of vertical modulation
range
No.
Parameter
Adjustment
1
Size H
Level of wave modulation
2
Offset H
Center point of modulation range
Size
Envelope
Offset
