Page 22

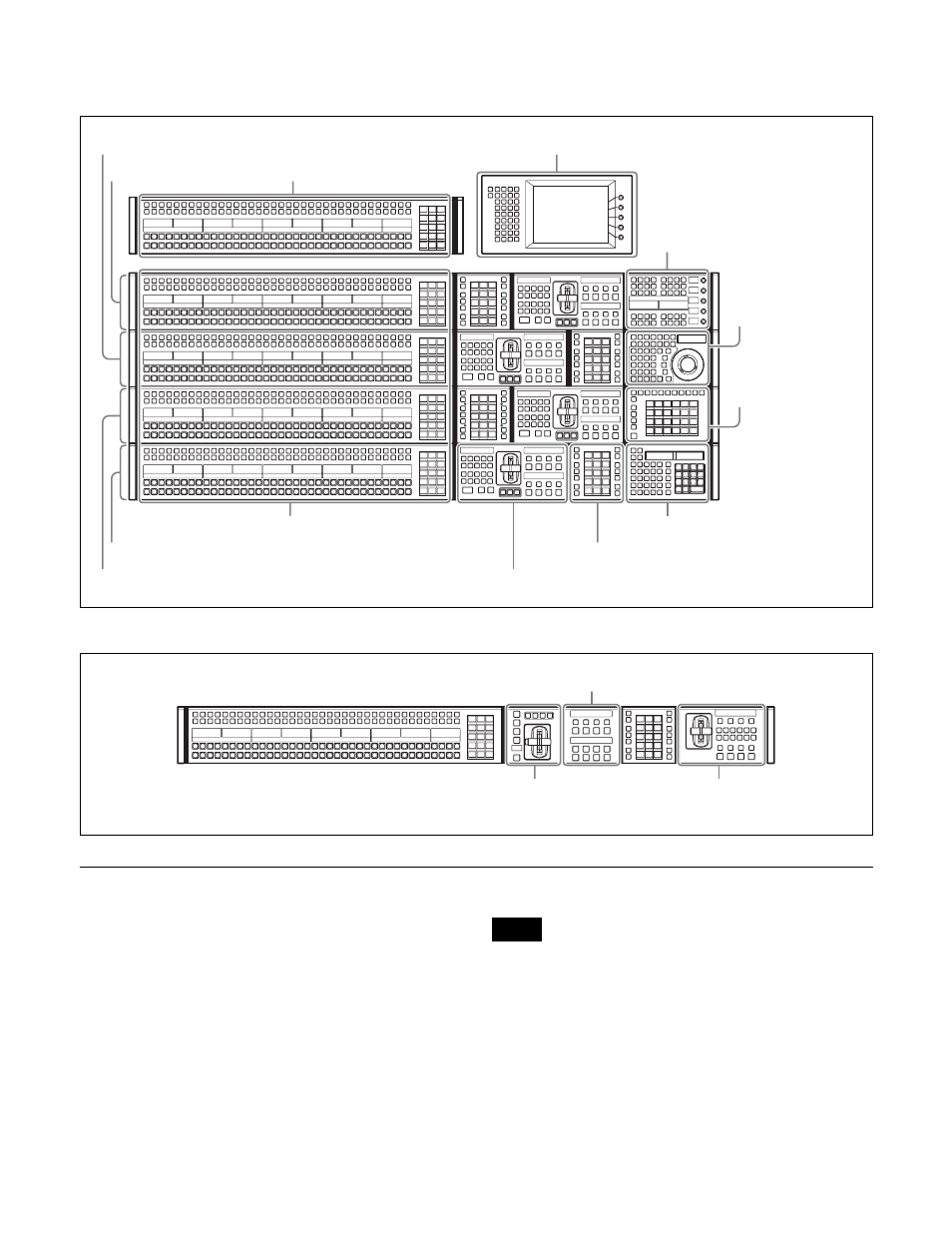

4M/E configuration example using 36-button modules for cross-point control block and AUX bus
control block

M/E configuration example using transition control block (simple type)

Cross-Point Control Block

The cross-point control block is used to select the signals
to be used in the M/E banks and PGM/PST bank.
The button rows on the cross-point control block are set to
key bus mode by default. They can be set to free assign
mode or key/AUX bus delegation mode in the Setup menu.

For details, see “Free assign mode” (page 27) and “Key/
AUX bus delegation mode” (page 28).

To use as a cross-point control block, the control panel
target row must be set to an M/E row or P/P row in the
Engineering Setup >Panel >Config menu (7321).

For details, see “Setting the Configuration for Each
Bank” (page 408).

M/E-1 bank

M/E-2 bank

M/E-3 bank

PGM/PST (program/preset) bank

Cross-point control block (

page 22

)

AUX bus control block

(page 46)

Flexi Pad control block

(page 34)
