216

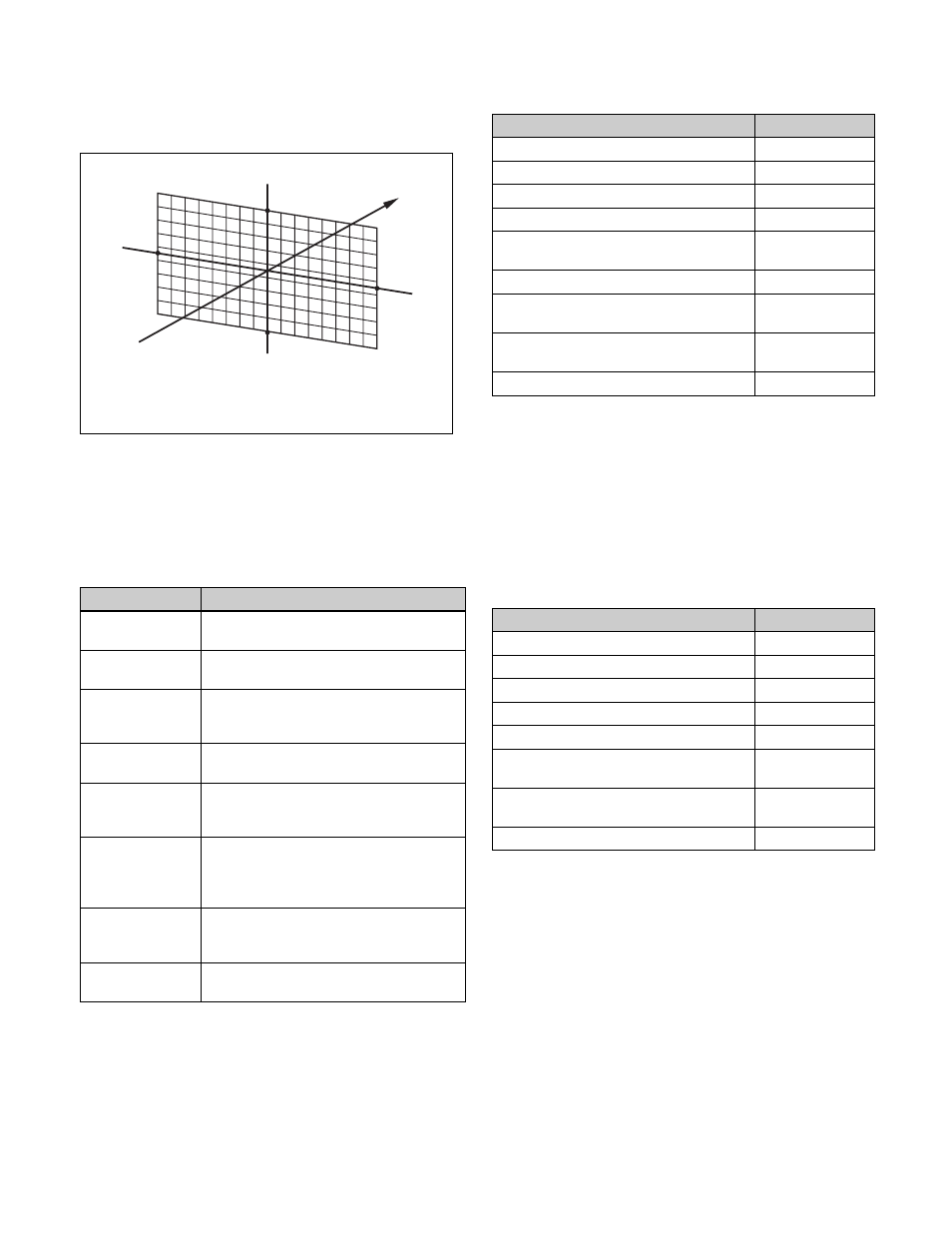

• Upper right corner of image or monitor
X = 16.00, Y = 9.00, Z = 0.00
• Lower left corner of image or monitor
X = –16.00, Y = –9.00, Z = 0.00
Valid values of three-dimensional parameters
The following table shows the valid range of three-
dimensional parameters for transforms. The three-
dimensional parameters of an image change when you use
the trackball or Z-ring to execute a transform. You can also
execute a transform by changing parameter values entered
on the numeric keypad control block.
Detents
The system defines points called detents at regular
intervals in three-dimensional space. You can change the
current three-dimensional parameter values to the nearest
detent point values by pressing the [CTR] button in the
device control block.
The following table shows the interval between detents
defined for each transform operation mode
(see page 217) .
Three-dimensional parameter default
values
Each of the transform operation modes has default values
for three-dimensional parameters. If required, you can
return the current value to the defaults by pressing the
[CTR] button in the device control block twice in rapid
succession.
The following table shows the default parameter values for
each transform operation mode.
Resetting of parameter values set in
source space
In some transform operation modes, if you switch to target
space after setting up a three-dimensional transform in
source space, the setting values in source space (three-
dimensional parameter values) are converted to values in
target space (source/target conversion).
Once a conversion has taken place, the original source
space parameters do not return to their original values
when you switch back to source space. They are reset.
Source/target conversion occurs in the following operation
modes:
• Move image (Location XYZ)
• Rotate image (Rotation)
Operation mode Valid range of parameter values
Move image
(Location XYZ) –999.9999 to +999.9999
Rotate image
(Rotation, Spin) –999.9999 to +999.9999
Move rotation
axis
(Axis Location) –999.9999 to +999.9999
Scale image
(Location Size) 0.0000 to +999.9999
Change image
aspect ratio
(Aspect) 0.0000 to +2.0000
Change image
perspective
(Perspective Y>) –999.9999 to +999.9999
Change image
perspective
(Perspective ) 0.0000 to 999.9999
Change image
slope (Skew) –9.9999 to +9.9999
Z-axis –
The plus direction on
the Z-axis is into the
image or monitor
screen.
X-axis
Y-axis
Z-axis +
X-axis
Y-axis
+9.00
+16.00
–16.00
–9.00
Operation mode Detent interval
Move image (Location XYZ) 1.0000
Rotate image (Rotation, Spin) 0.1250
Move rotation axis (Axis Location) 1.0000
Scale image (Location Size) 0.2500
Change image aspect ratio (Aspect Y>) 0.2500
Change image aspect ratio (Aspect ) 0.1000
Change image perspective (Perspective
) 1.0000
Change image perspective (Perspective
) 0.0100
Change image slope (Skew) 0.1000
Operation mode Default value
Move image (Location XYZ) 0.0000
Rotate image (Rotation, Spin) 0.0000
Move rotation axis (Axis Location) 0.0000
Scale image (Location Size) 1.0000
Change image aspect ratio (Aspect) 1.0000
Change image perspective (Perspective
) 0.0000
Change image perspective (Perspective
) 1.0000
Change image slope (Skew) 0.0000
