Press [Set].
To clear the signal format setting
Press [Clear].
6
Press [Execute].
Setting the format converter conversion
method
You can set the format converter conversion method for
each FC channel.
The conversion method items and the target conversion
formats are given below.
1
In the Engineering Setup >Switcher >Input >Internal
FC menu (7332.5), press [FC Adjust].
The FC Adjust menu (7332.2) appears.
2
Display the target FC channels to set in the status area.
Press [FC 1-4], [FC 5-8], [FC 9-11], or [FC 13-16] to
switch the display in the status area.
3
In the status area, select an FC channel.
4
Set the conversion method.
To configure the enhancer
1
Press [Enhancer], turning it on.
2
Set the following parameters.
a) 0 (high frequency) to 2 (low frequency)
To set the up-converter aspect ratio
1
In the
Edge Crop:
Add black bars on the left and right sides
of a 4:3 aspect ratio image to convert it to a 16:9
image.
Letter Box:
Crop the top and bottom of a 4:3 aspect
ratio image to convert it to a 16:9 image.
Squeeze:
Stretch a 4:3 image horizontally to covert it
to a 16:9 image.
Item
Conversion format
Enhancer
• 1080P (Level A)
t
3840×2160P
(Level A, 2SI)
• 1080P (Level B)
t
3840×2160P
(Level A, 2SI)
• 1080i
t
3840×2160P (Level A, 2SI)
• 1080P (Level A)
t
3840×2160P
(Level A, SQD)
• 1080P (Level B)
t
3840×2160P
(Level A, SQD)
• 1080i
t
3840×2160P (Level A,
SQD)
Up-converter
aspect ratio
• 576i
t
1080i
• 480i
t
1080i
• 576i
t
720P
• 480i
t
720P
Down-converter
aspect ratio
–
I/P converter
conversion mode
• 1080i
t
3840×2160P (Level A, 2SI)
• 1080i
t
3840×2160P (Level A,
SQD)
• 1080i
t
1080P (Level A)
• 1080i
t
720P
Up-converter
conversion mode
• 576i
t
1080i
• 480i
t
1080i
• 576i
t
720P
• 480i
t
720P
Parameter group [1/2]
No.
Parameter
Adjustment
2
Detail Gain Adjust the edge enhancement
sharpness
3
Limiter
Adjust the maximum signal level to
be added to the original signal
4
Crisp
Set the amplitude value for which
low-amplitude signals are not
enhanced
5
Level
Depend
Set the luminance range for edge
enhancement
Parameter group [2/2]
No.
Parameter
Adjustment
2
Frequency
Set the center frequency for edge
enhancement
a)

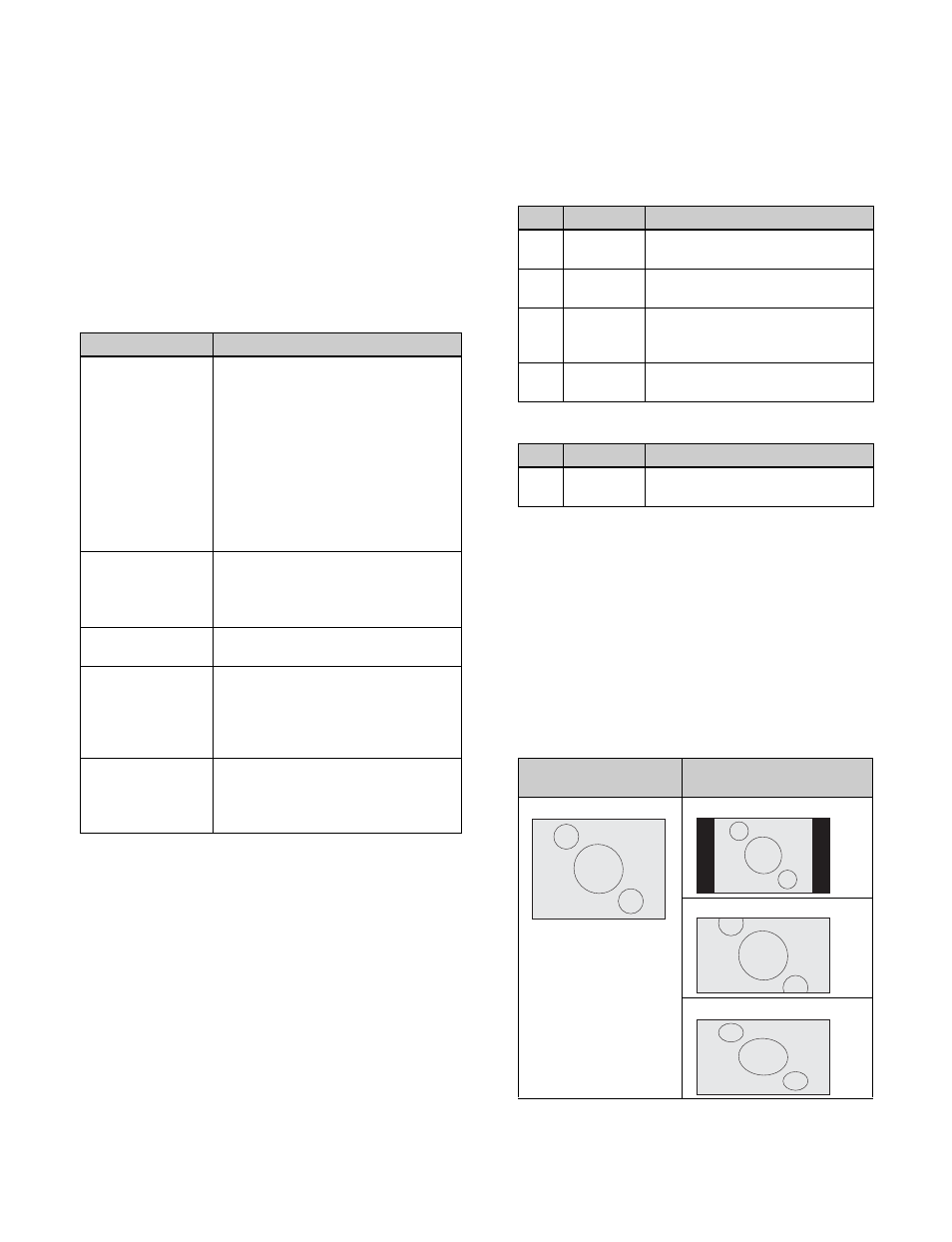

Original image (4:3)
Format converted image
(16:9)
Edge Crop
Letter Box
Squeeze
