Signal Selection
You carry out signal selection with the cross-point buttons
in the cross-point control block of the M/E bank or PGM/
PST bank, and the buttons in the AUX bus control block
(AUX bus operation mode). Depending on the module used, each row has 36 buttons,
28 buttons, or 20 buttons. This section describes modules
with 36-button rows.

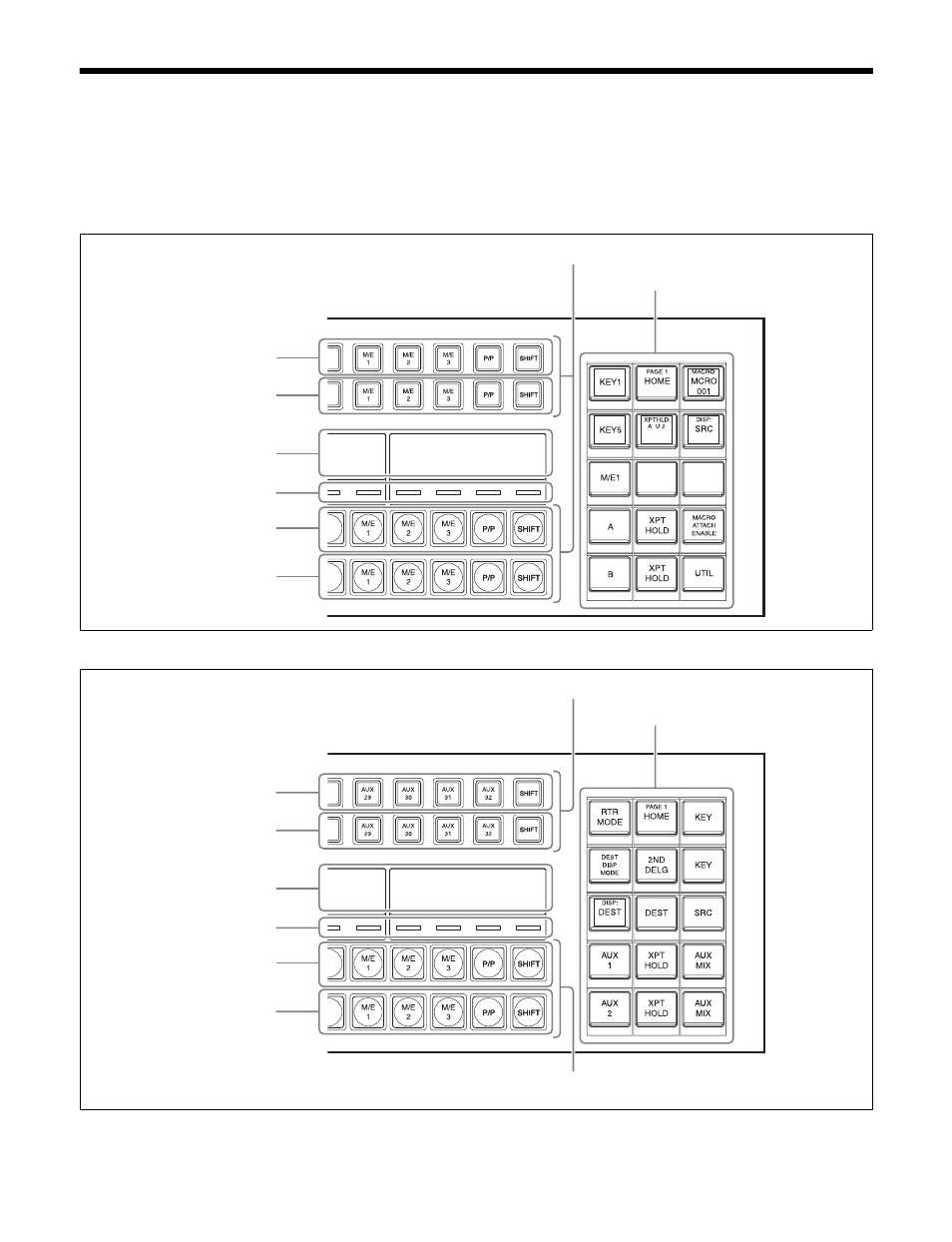

Cross-point control block
AUX bus control block (AUX bus operation mode)
Cross-point button rows
Display
Cross-point indicators
Cross-point pad
1st row
2nd row
3rd row
4th row
Delegation button rows
Display
Cross-point indicators
Cross-point pad
1st row
2nd row
3rd row
4th row
Cross-point button rows
