a Menu title button
This button displays the title of the menu screen.
The menu title of the sub menu site
(see page 61) is
displayed using a different color than the main menu site.
Switching the VF buttons between the Key1 to
Key4 and Key5 to Key8 button displays
You can switch the displays using the [KEY1-4] and
[KEY5-8] menu title buttons.
When [KEY1-4] is lit, Key1 to Key4 appear in the VF1 to
VF4 buttons. When [KEY5-8] is lit, Key5 to Key8 appear
in the VF1 to VF4 buttons.
b Menu page number button
This shows the menu screen page number.
When you press this button, the top menu window
(see
page 55) opens. You can enter the page number for the
desired menu, or press one of the top menu selection
buttons in the window, to display that menu.
When the system is accessing a local drive, the indicator is
lit red.
When an indicator is lit, do not power off the switcher.
c VF buttons
These indicate the larger subdivisions (2nd level) of the
menu.

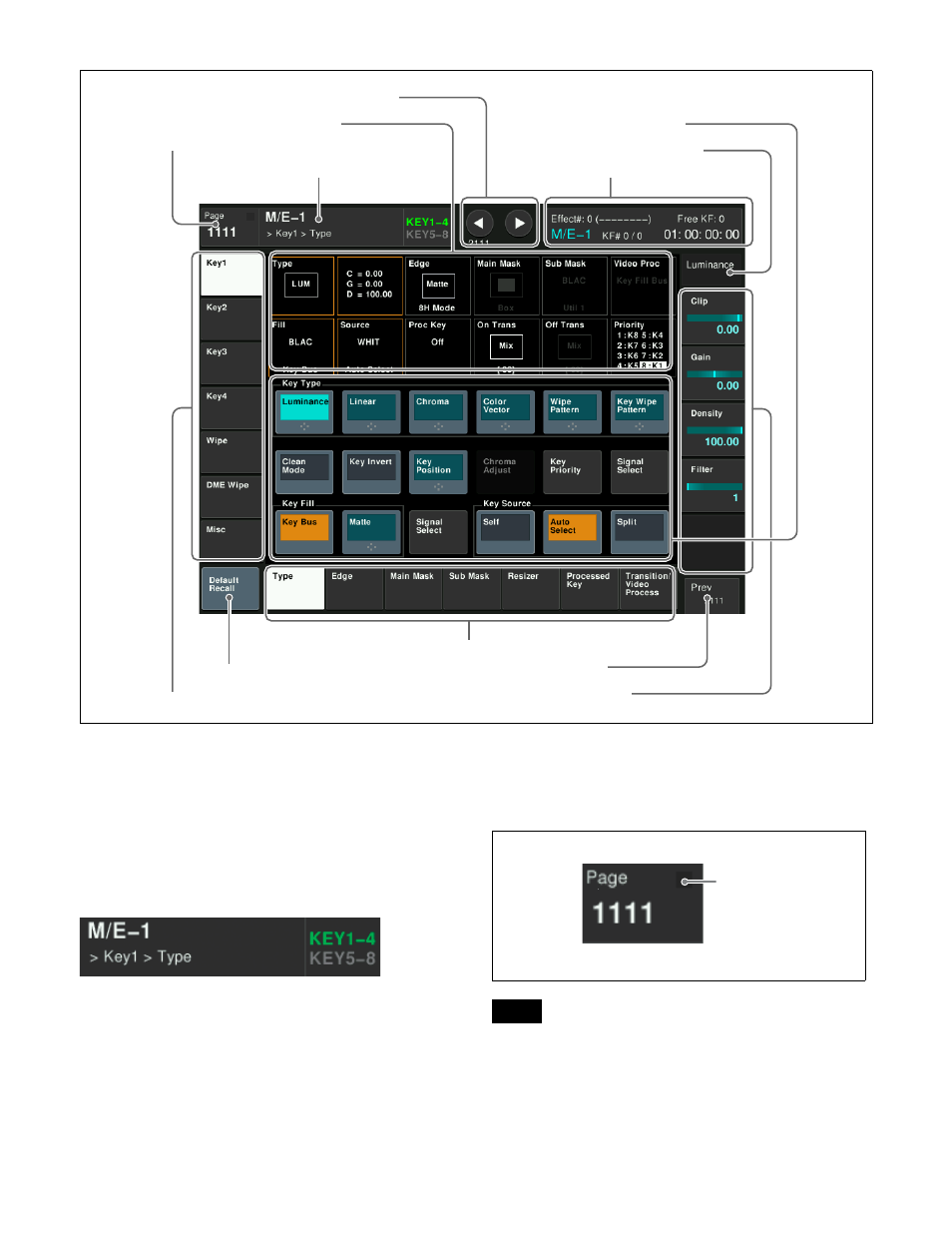

1 Menu title button
2 Menu page number button
3 VF buttons
4 HF buttons
qs b button and B button
6 Function button area
7 Parameter group button
9 Previous page button
0 Keyframe status
qa Default Recall button
5 Status area
8 Parameter setting buttons
Note
Indicator
