277

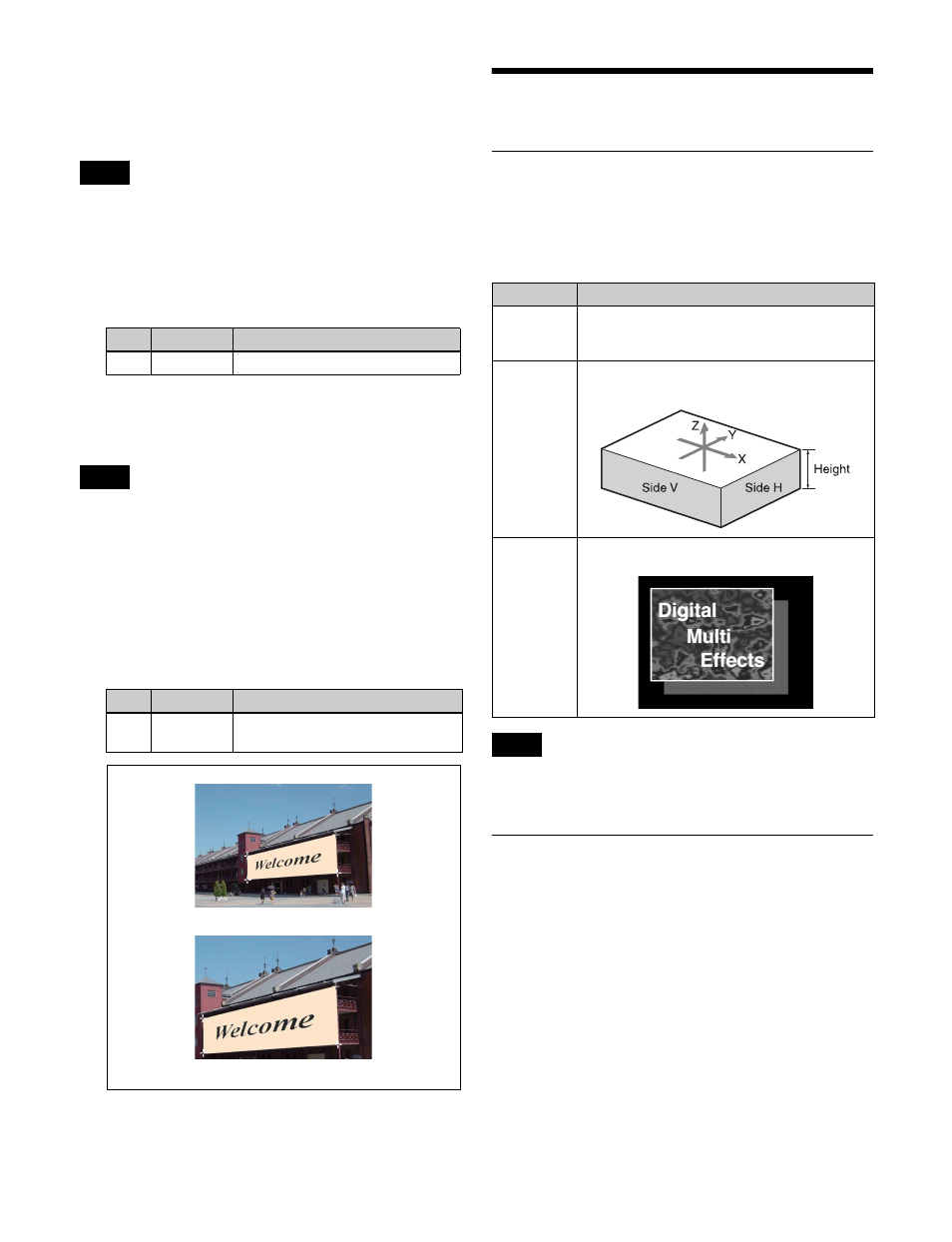

To adjust the density of the foreground
You can adjust the density of the foreground image to be
translucent so that the background shows through, making
it easier to position the corners.
This setting is not saved in a keyframe or snapshot.
1
In the Corner Pinning menu (4142), press [Video
Through], turning it on.
2
Set the following parameter.
To adjust the zoom
You can enlarge the image around the corner being
adjusted, to allow fine positioning of the corner.
• This setting is not saved in a keyframe or snapshot.
• This function is only enabled when combine is set.
• When all four corners are being positioned, this function
cannot be used.
1
In the Corner Pinning menu (4142), press [Zoom
Enable], turning it on.
2
Set the following parameter.
Global Effects
Overview
Global effects are special effects created by combining the
images of successive channels. The Global Effect menu is
used to add these effects.
The following types of global effects are available.
On the XVS-6000, global effects cannot be used when the
signal format is 3840×2160P 2SI.
Combiner Settings
When multiple channels (Ch) are selected on one keyer or
for one transition, the Combiner automatically combines
the selected images. Up to four channels can be combined.
You can control the mix of images, and also the image
overlap priority automatically. For a mix, you can control
the relative amounts of each channel.
Images can also cross in three dimensions.
Note
No. Parameter Adjustment
4 Density Image density
Notes
No. Parameter Adjustment
5 Zoom Degree of zooming in on the
corners
Zoom disabled
Zoom enabled
Effect Description/Image
Combiner Automatically combines the selected images
when multiple channels are selected on one
keyer or for one transition.
Brick Creates a cuboid using three successive
channels.
Shadow Gives the image a shadow.
Note
