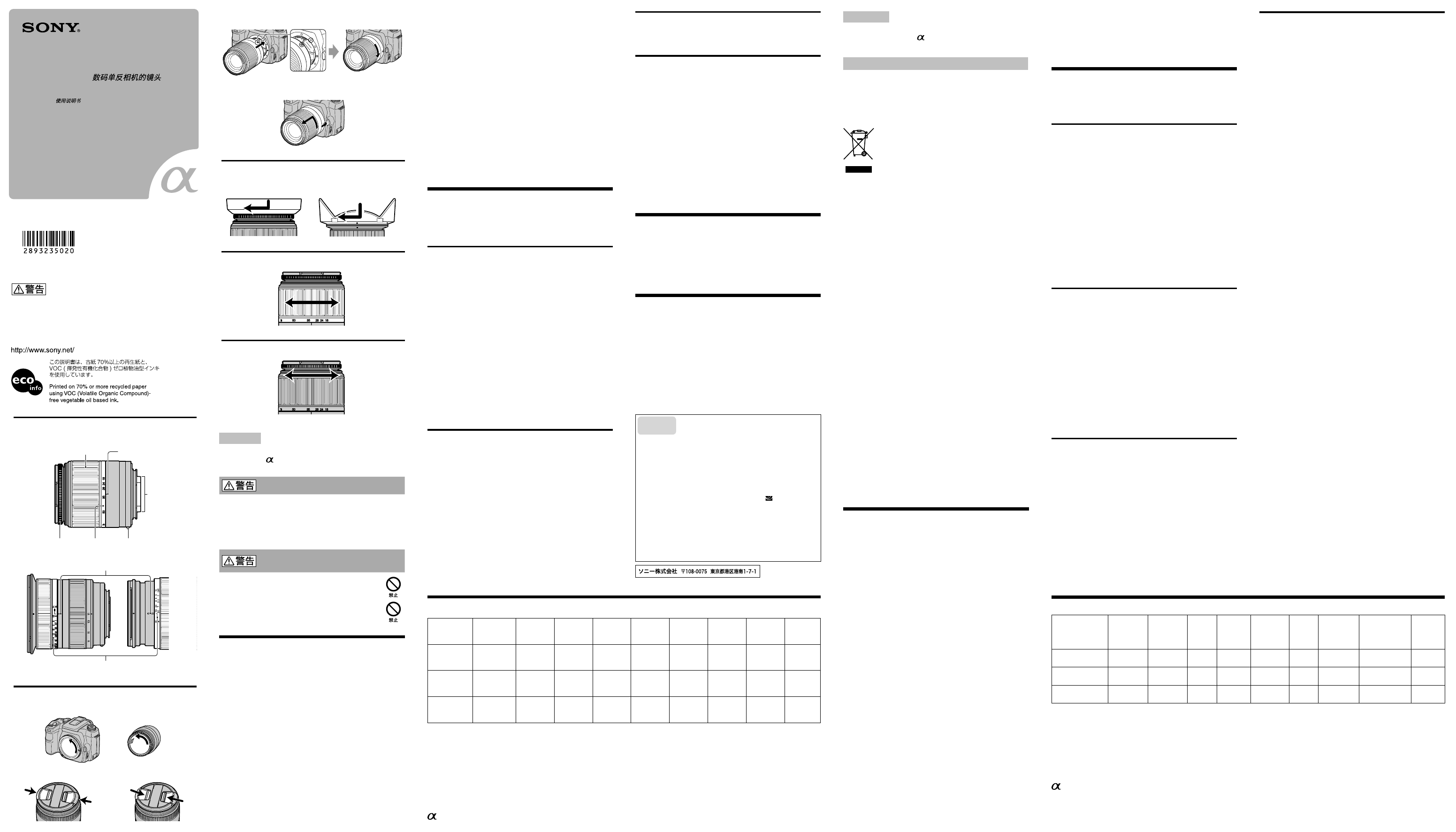

Sony Camera Lens - Manual

DT 18-70mm F3.5-5.6:
1 2
3
4 6 5
DT 11-18mm F4.5-5.6: DT 18-200mm F3.5-6.3:
8
7
DT 18-70mm F3.5-5.6: DT 11-18mm F4.5-5.6,
DT 18-200mm F3.5-6.3:
APS-C
35mm
•
•
•
•
•
•
•
•
•
1
• DT 11-18mm F4.5-5.6
•
2
•
DT 11-18mm F4.5-5.6
•
•
KK-CA
•

1 2 3 4
5 6 7 *
8 *
* DT 11-18mm F4.5-5.6, DT 18-200mm F3.5-6.3

(  –  )
1
• (1) (2) 2
(2)
2
•
•
(  –  )

DT 18-70mm F3.5-5.6:
DT 11-18mm F4.5-5.6, DT 18-200mm F3.5-6.3:
•
•
•
35mm
* 1
(mm)
* 1 * 2
(m)
( ) (mm)
(mm)
(g)
DT 11-18mm
F4.5-5.6
(SAL1118)
16.5-27 12-15 104 -76 0.25 0.125 F22-29 77 83 80.5 360
DT 18-70mm
F3.5-5.6
(SAL1870)
27-105 9-11 76 -23 0.38 0.25 F22-36 55 66 77 235
DT 18-200mm
F3.5-6.3
(SAL18200)
27-300 13-15 76 -8 0.45 0.27 F22-40 62 73 85.5 405
* 1 35mm APS-C
* 2
• ADI ADI
•
(1) (1) (1) (1)
English
This manual is for use with several different lenses.
This lens is designed for Sony
cameras (models equipped with APS-C
sized image sensor). You cannot use on 35mm-format cameras.
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
Do not directly look at the sun through this lens.
Doing so might harm your eyes or cause loss of eyesight.
Keep the lens out of reach of small children.
There is danger of accident or injury.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its packaging indicates that
this product shall not be treated as household waste. Instead it
shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. The recycling of
materials will help to conserve natural resources. For more detailed information
about recycling of this product, please contact your local Civic Office, your
household waste disposal service or the shop where you purchased the product.
For the customers in the U.S.A.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
CAUTION
You are cautioned that any changes or modifications not expressly approved
in this manual could void your authority to operate this equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
For the customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Notes on use
• Do not leave the lens in direct sunlight. If sunlight is focused onto a nearby
object, it may cause a fire. If circumstances necessitate leaving the lens in direct
sunlight, be sure to attach the lens cap.
• Be careful not to subject the lens to mechanical shock while attaching it.
• Always place the lens caps on the lens when storing.
• Do not keep the lens in a very humid place for a long period of time to prevent mold.
• Do not hold the camera by the lens part extended for zooming, etc.
• Do not touch the lens contacts. If dirt, etc., gets on the lens contacts, it may
interfere or prevent the sending and receiving of signals between the lens and the
camera, resulting in operational malfunction.
Precautions for flash use
• With certain of lens/flash combinations, the lens may partially block the light of
the flash, resulting in a shadow at the bottom of the picture. When using a built-
in camera flash, make sure to remove the lens hood and shoot from at least 1m (3.3
feet) away from your subject.
• The built-in flash cannot be used with DT 11-18mm F4.5-5.6. Use a separately
sold flash.
Vignetting
• When you use lens, the corners of the screen become darker than the center. To
reduce this phenomena (called vignetting), close the aperture by 1 to 2 stops.
• With certain of lens/filter combinations, the frame of the filter may block the
incident radiation. This may significantly lower the light intensity when shooting
with the aperture wide open (low f-stop). Take test photographs at different
aperture settings for best results. (DT 11-18mm F4.5-5.6 only)
Condensation
If your lens is brought directly from a cold place to a warm place,
condensation may appear on the lens. To avoid this, place the lens in a plastic
bag or something similar. When the air temperature inside the bag reaches
the surrounding temperature, take the lens out.
Cleaning the lens
• Do not touch the surface of the lens directly.
• If the lens gets dirty, brush off dust with a lens blower and wipe with a soft,
clean cloth (Cleaning Cloth KK-CA (optional) is recommended).
• Do not use any organic solvent, such as thinner or benzine, to clean the lens or
the camera cone.
 Names of parts
1···Zooming ring 2···Focal-length index 3···Lens contacts 4···Mounting index
5···Focal-length scale 6···Focusing ring 7···Distance scale
*
8···Distance index *
* DT 11-18mm F4.5-5.6, DT 18-200mm F3.5-6.3 only
 Attaching/detaching the lens
To attach the lens (See illustration –.)
1
Remove the rear and front lens caps and the camera body cap.
• You can attach/detach the front lens cap in two ways, (1) and (2). When you
attach/detach the lens cap with the lens hood attached, use method (2).
2
Align the orange index on the lens barrel with the orange
index on the camera (mounting index), then insert the lens
into the camera mount and rotate it clockwise until it locks.
• Do not press the lens release button on the camera when mounting the lens.
• Do not mount the lens at an angle.
To remove the lens (See illustration –.)
While pressing and holding the lens release button on the
camera, rotate the lens counterclockwise until it stops, then
detach the lens.
 Attaching lens hood
It is recommended that you use a lens hood to reduce flare and ensure
maximum image quality.
DT 18-70mm F3.5-5.6:
Fit the hood into the mount on the end of the lens barrel and
rotate the hood clockwise until it clicks.
DT 11-18mm F4.5-5.6, DT 18-200mm F3.5-6.3:
Align the red lines on the lens hood and the lens. Turn the hood
clockwise until the red line on the lens meets the red dot on the
hood and it clicks into place.
• When using a built-in camera flash, make sure to remove the lens hood to avoid
blockage of the flash light.
• If a marking (red line, red dot, etc.) is provided, attach the lens hood properly.
Otherwise, the lens hood may interfere with the desired effect or may appear in
pictures.
• When storing, turn over the lens hood and place it onto the lens backwards.
 Zooming
Rotate the zooming ring to the desired focal length.
Specifications
Name
(Model name)
Equivalent
35mm-format
focal length* 1
(mm)
Lens groups-
elements
Angle of
view* 1
Minimum
focus* 2
(m (feet))
Maximum
magnification
(X)
Minimum
f-stop
Filter diameter
(mm)
Dimensions
(maximum
diameter × height)
(mm (in.))
Mass
(g (oz.))
DT 11-18mm
F4.5-5.6 (SAL1118)
16.5-27 12-15 104°-76° 0.25(0.8) 0.125 f/22-29 77
Approx. 83Ч80.5
(3 3/8Ч3 1/4)
Approx. 360
(12 11/16)
DT 18-70mm
F3.5-5.6 (SAL1870)
27-105 9-11 76°-23° 0.38(1.2) 0.25 f/22-36 55
Approx. 66Ч77
(2 5/8Ч3 1/8)
Approx. 235
(8 5/16)
DT 18-200mm
F3.5-6.3 (SAL18200)
27-300 13-15 76°-8° 0.45(1.5) 0.27 f/22-40 62
Approx. 73Ч85.5
(2 7/8Ч3 3/8)
Approx. 405
(14 5/16)
* 1 The values for equivalent 35mm-format focal length and angle of view are based on Digital Single Lens Reflex Cameras equipped with an APS-C sized image sensor.
* 2 Minimum focus is the shortest distance from the image sensor to the subject.
• This lens is equipped with a distance encoder. The distance encoder allows more accurate measurement (ADI) by using a flash for ADI.
• Depending on the lens mechanism, the focal length may change with any change of the shooting distance. The focal length assumes the lens is focused at infinity.
Included items: Lens (1), Front lens cap (1), Rear lens cap (1), Lens hood (1), Set of printed documentation
Designs and specifications are subject to change without notice.
is a trademark of Sony Corporation.


•
•
• DT 18-200mm F3.5-6.3 DT
•
•
• 1
 ....................... 0570-00-0770
(
 PHS .....0466-38-0231
(
)
9 8
9 5


–1
(1) (2)



–2

 Focusing
When using the auto focus, the camera focuses the lens automatically.
• While the camera is auto focusing, do not touch the focusing ring as it rotates.
Only rotate the focusing ring manually when the camera is set to the direct
manual focus, otherwise a malfunction may result.
When focusing manually, set your camera to the manual focus and rotate the
focusing ring while looking through the viewfinder. The focus signal in the
viewfinder indicates the current condition of the focus.
• The focusing ring can be rotated slightly past the infinity to provide accurate
focusing under various operating temperatures. Do not rotate the focusing ring
all the way to the end when focusing manually, even at infinity. Look through the
viewfinder and set the focus precisely.
• For Lens model DT 18-200mm F3.5-6.3, the focusing ring rotates the opposite
way than the other DT Zoom lenses.
©2006 Sony Corporation Printed in Malaysia
2-893-235- 02(1)
SAL1118/1870/18200
