Set the Additional Bus Capacitance Parameter
Follow these steps to set the Additional Bus Capacitance parameter.
1. Start your DriveExplorer software.
2. From the Explore menu, choose Connect>Local or press CTRL+L.
DriveExplorer software will read your system.

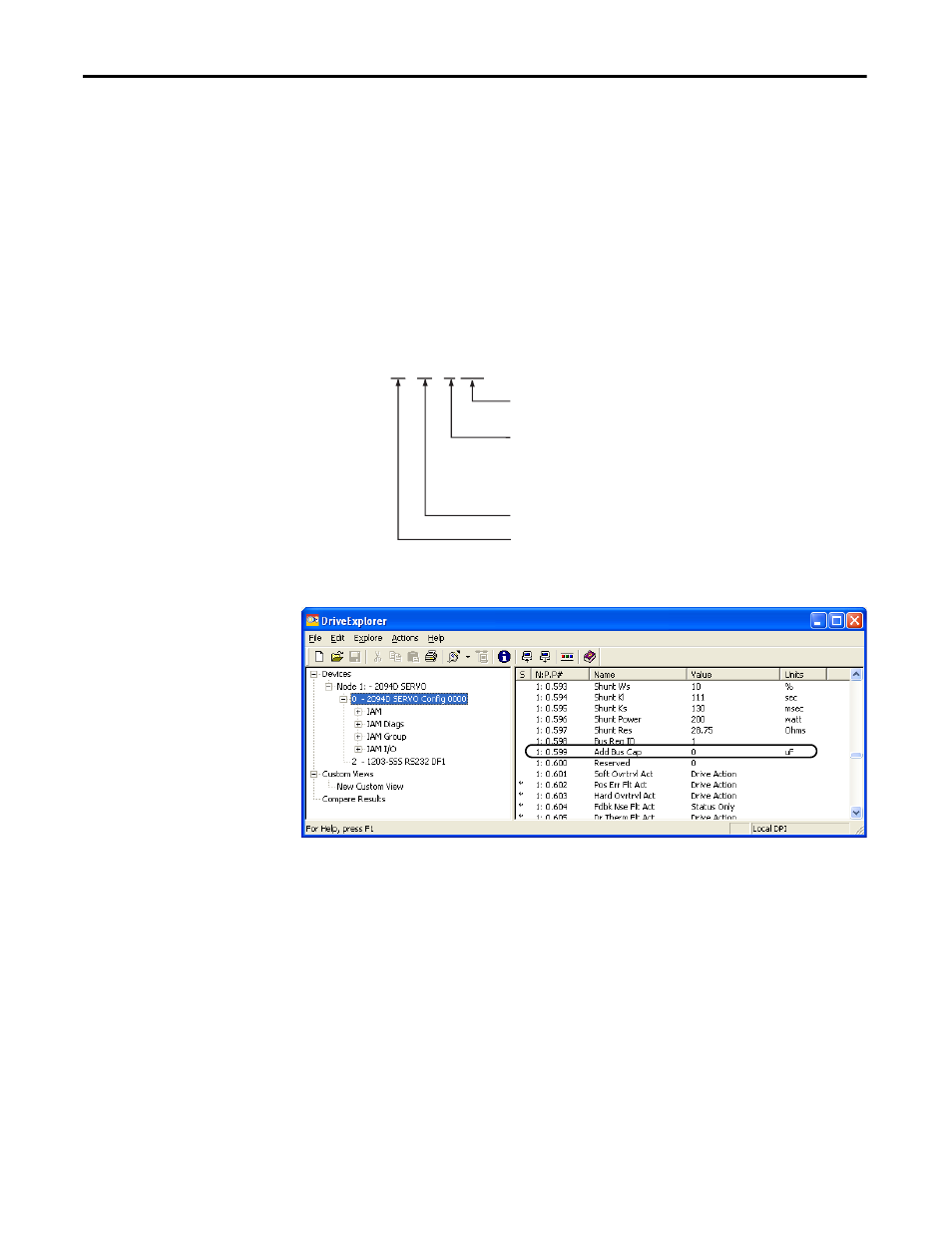

3. Observe the Linear List of parameters as grouped by Node, Port, and Axis
hierarchy as shown below.
4. Choose Devices>Node>Product and navigate to the parameter x:x:x599
as shown below.
5. Double-click the x:x:x599 Add Bus Cap parameter.
N: P. x xxx
Network Node Number
DPI Port Number
Parameter Number
30 = Version Data
Linear List Legend
Axis Number
0 = IAM (axis 1)
1 = AM (axis 2)
2 = AM (axis 3)
3 = AM (axis 4)
