Chapter 8 Removing and Replacing the Kinetix 6000 Drive Modules
8. Verify that the system is operating properly.
Remove the Power Rail This procedure assumes you have removed all modules from the power rail.
Follow these steps to remove the power rail.
1. Disconnect the braided grounding strap from the grounding stud on the
right side of the power rail.
2. Loosen the mounting bolts (removing the bolts is not necessary).
3. Lift the power rail up and off of the mounting bolts.
TIP Because parameter settings reside in the Logix Designer application, you
do not need to perform any tuning or set-up procedures.

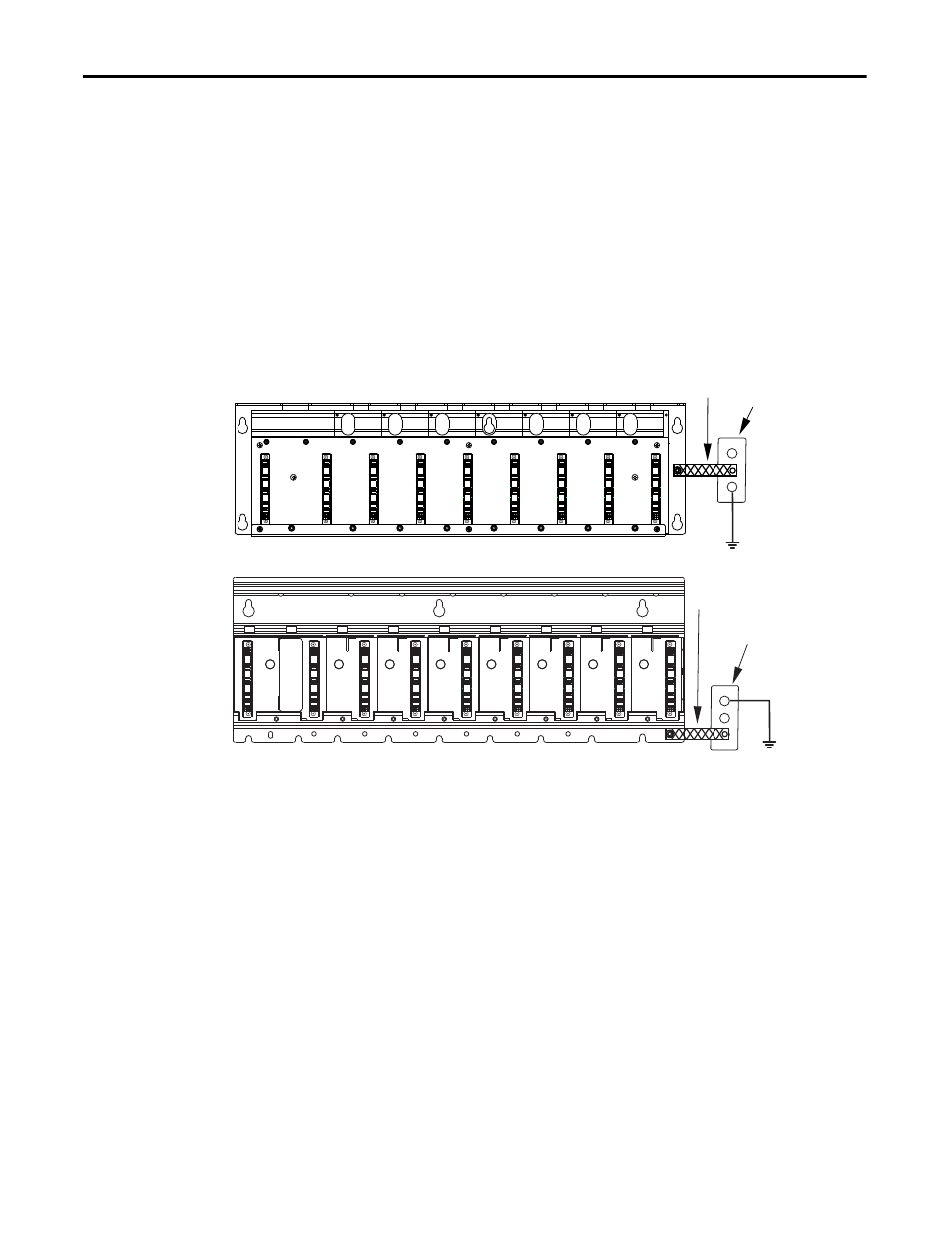

Braided Ground Strap
100 mm (3.9 in.)
Bonded Cabinet Ground
Power Rail
2094-PRx
Braided Ground Strap
100 mm (3.9 in.)
Bonded Cabinet Ground
Power Rail
2094-PRSx
