2.7.2 SEPARATE 24 V DC POWER SOURCES TO CONTROLLER AND ITBs

The procedure to connect the controller TB2 screw lugs to a controller-dedicated 24 V dc power
source is provided in Table 2-4. The ITB power source must be negatively grounded; the controller
power source can float, be positively grounded, or negatively grounded.

Table 2-4. Controller-Dedicated 24 V dc Power Source

Step

Procedure

See Figure

1

From the negative distribution strip, connect the negative (-) 24 V input line,
via a remote SPST switch (SPST switch is on this input if positive ground),
to TB2-3 (

L2).

Figure 2-15

2

From the positive distribution strip, connect the positive (+) 24 V input line,
via a remote SPST switch (SPST switch is on this input if negative ground or
if power supply floats), to TB2-4 (

L1).

Figure 2-15

3

Connect TB2-1, Power Common (

PC), to a common bus bar that is

connected to earth ground.
Individual wires should connect each controller Power Common (

PC) screw

lug to the common bus bar.

Figure 2-15

Figure 2-16

4

Connect the earth ground to TB2-5, Chassis Safety Ground (

G).

Figure 2-15

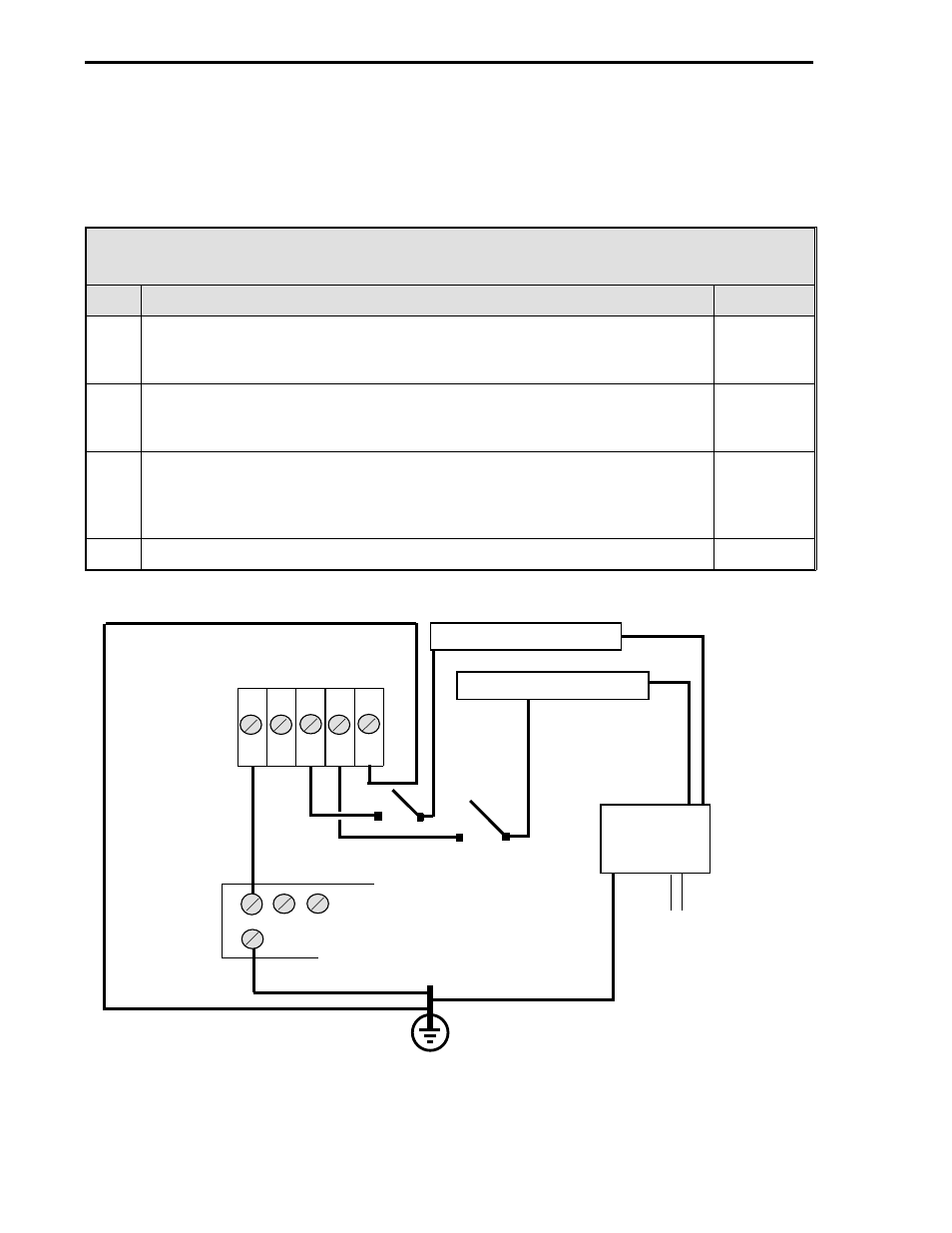

Figure 2-15. Controller Dedicated 24 V dc Power Source

1 2 3 4 5

PC L3 L2 L1 G

ONLY ONE SPST SWITCH NEEDED ON

P/S HOT SIDE (UNGROUNDED)

24 V dc

POWER

SUPPLY

-

+

EARTH GROUND

TB2 (REAR OF

CONTROLLER)

AC

COMMON BUS BAR

NEG DIST STRIP

POS DIST STRIP
