The existing contents of DATAPOINT C115 are dis-
played (shown as 100.000 in this example).
•

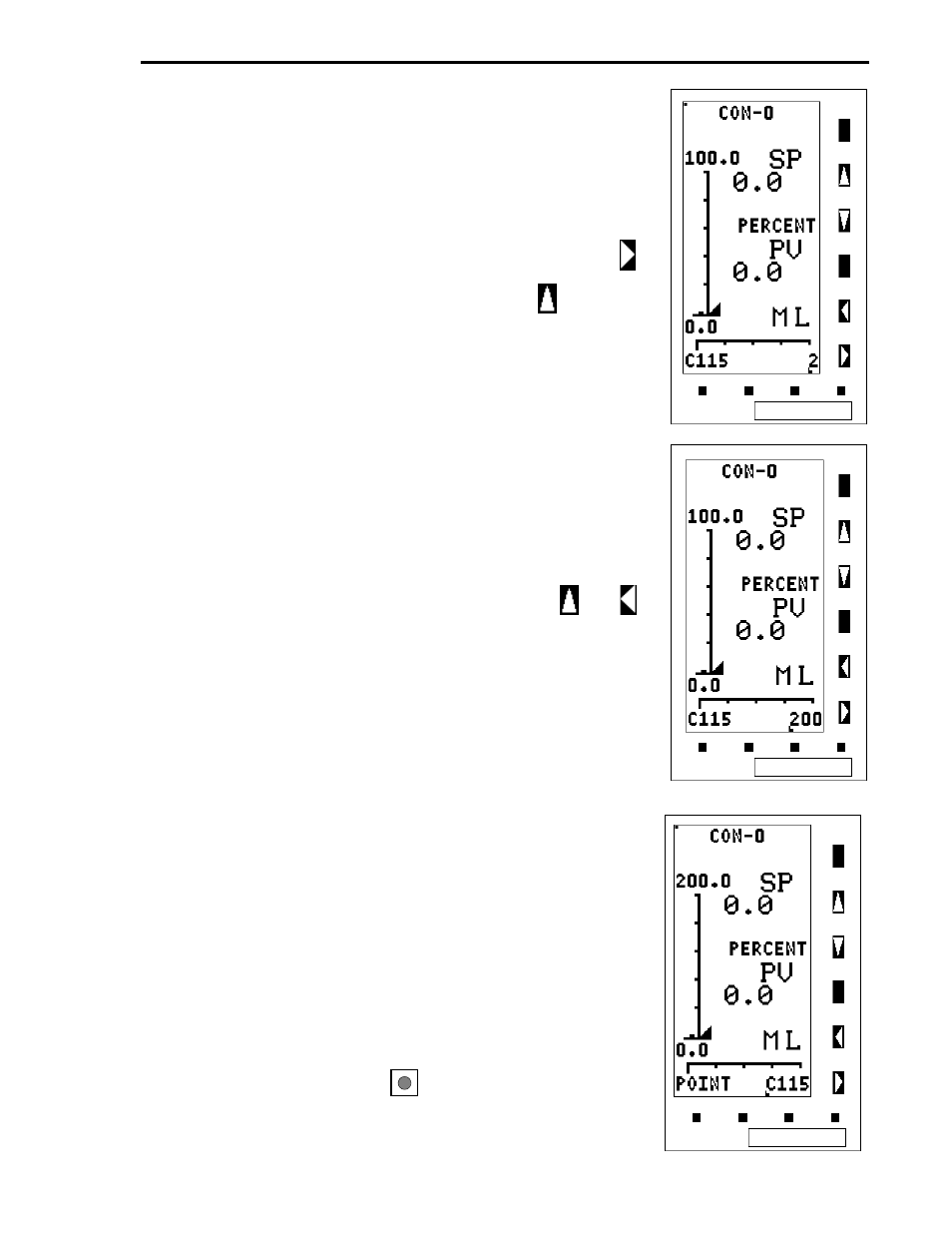

To change the value of C115, first shift the C115 con-
tents all the way right by pressing and holding the
button.
•
Replace the "1" with a "2" by pressing the button
until a "2" appears on the entry line, as shown in the
screen to the right.
•
Enter the two additional zeros by using the and
buttons as discussed previously.
•
The screen should now look as shown on the right.
•
Replace the current C115 value with the new one by
pressing the F3 button.
•
If you don’t want to make the change, the edit may be
aborted by pressing the F1 button.
•
After pressing F3, the display changes back to the
DATAPOINT display as shown to the right.
•
Notice the change in bar-graph scale to 200.0.
•
Press the Mode button to return the instrument to
operator mode.
