The MicroMod 53MC5000 Process Control Station provides a variety of standard displays to
give a multiperspective presentation of the controlled process. Unlike many other controllers that
have a singular bar graph display, the 53MC5000 Process Control Station has trend, parameter,
status, totalizer, and multi-bar graph displays (2 and 4 loop versions). A display locator grid identifies
the current display suite. User defined displays can be created with F-TRAN (requires extended

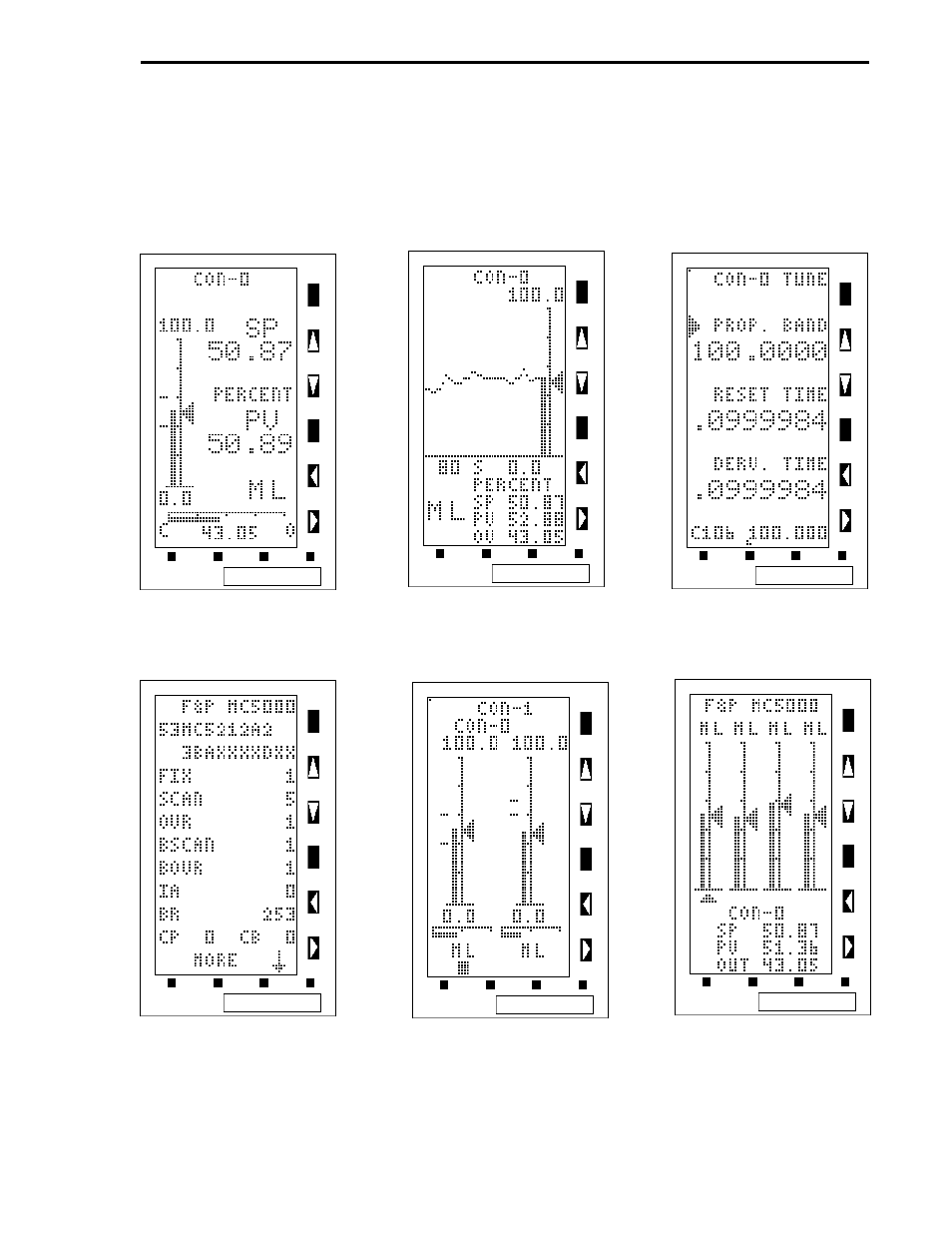

functionality). Typical low-resolution 53MC5000 Process Control Station displays are shown in
Figure 1-1.

Single Loop

Display

Single Loop with

Horizontal Trend

Display

Parameter

Display

Status Display

Four Loop

Display

Two Loop

Display

Figure 1-1. Typical Displays

Section 1. Introduction

1-3
