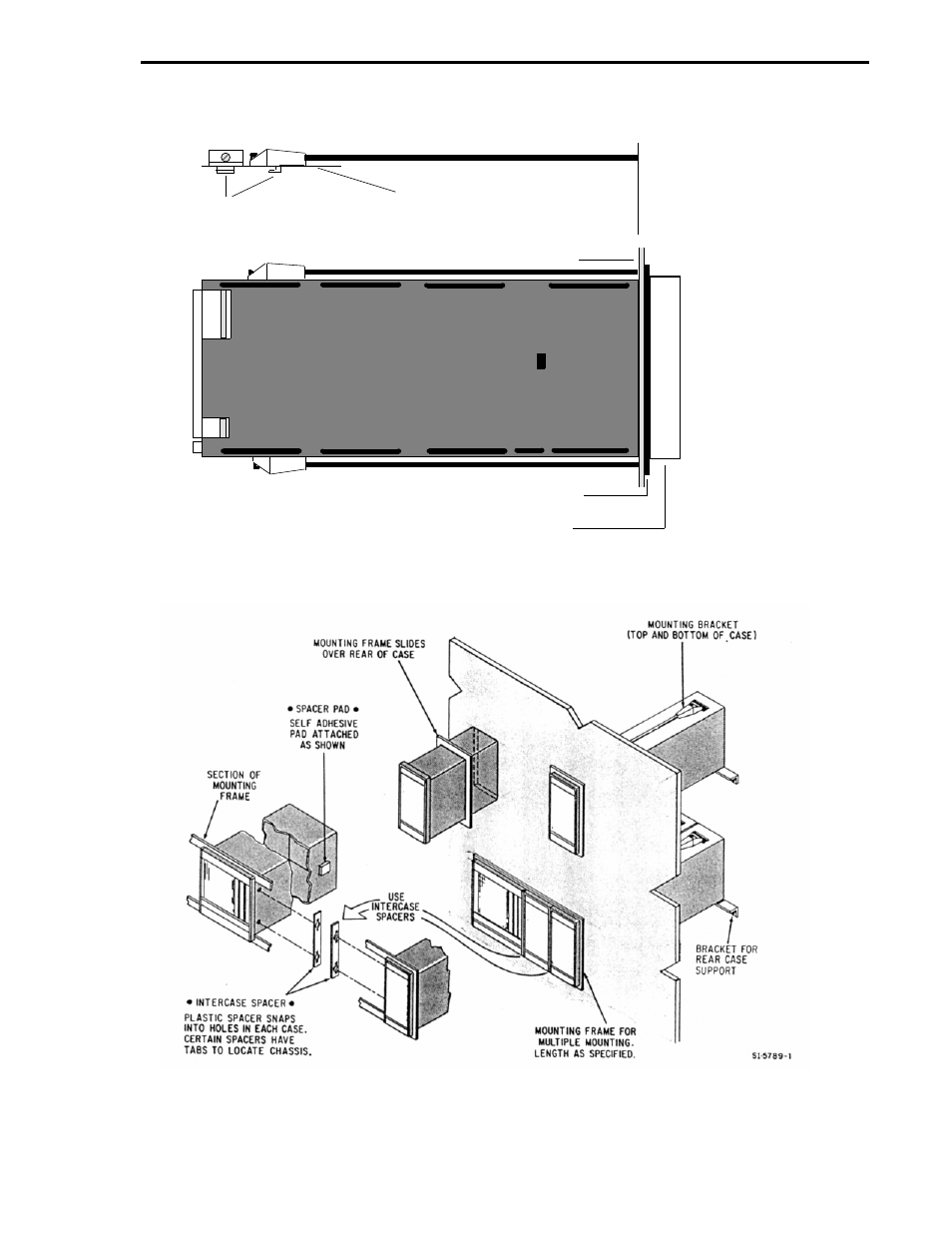

Figure 2-4. Bracket Rods
Figure 2-5. Intercase Spacing
MOUNTING BRACKET ROD
FOOT EXTENDS
THROUGH NOTCH
TOP OR BOTTOM
OF CONTROLLER
SITE MOUNTING PANEL
TRIM COLLAR (SUPPLIED
WITH CONTROLLER)
CONTROLLER BEZEL
1. SLIDE TRIM
COLLAR FROM
REAR OF
CONTROLLER
TOWARD FRONT
BEZEL.
2. SLIDE
CONTROLLER
THROUGH SITE
PANEL CUT-OUT.
3. INSERT UPPER
MOUNTING
BRACKET FOOT
INTO NOTCH.
4. POSITION CASE
AND TURN ROD
WITH SCREW-
DRIVER UNTIL IT
MEETS PANEL.
5. FOR LOWER
MOUNT-
