9.3 CS4 STANDARD DISPLAYS
Loading CS4 preconfigures the System Module display list for five displays. The five displays are
listed in Table 9-2 with appropriate reference sections, figure numbers, and configuration tables. A
configuration table is not listed for the Auto/Manual Point Display 3, as that information is provided
in this section. To configure the Single Loop CON0 with Horizontal Trend, Parameter, and System
Status displays, reference the Section 4 and Section 5 information listed in the table.
Table 9-2. CS4 Standard Displays
Title
See
Section
Section 4
Figure
Section 5
Table
Auto/Manual Point Display 3 (CDM = 4) 4.3 and
4.3.5
4-7

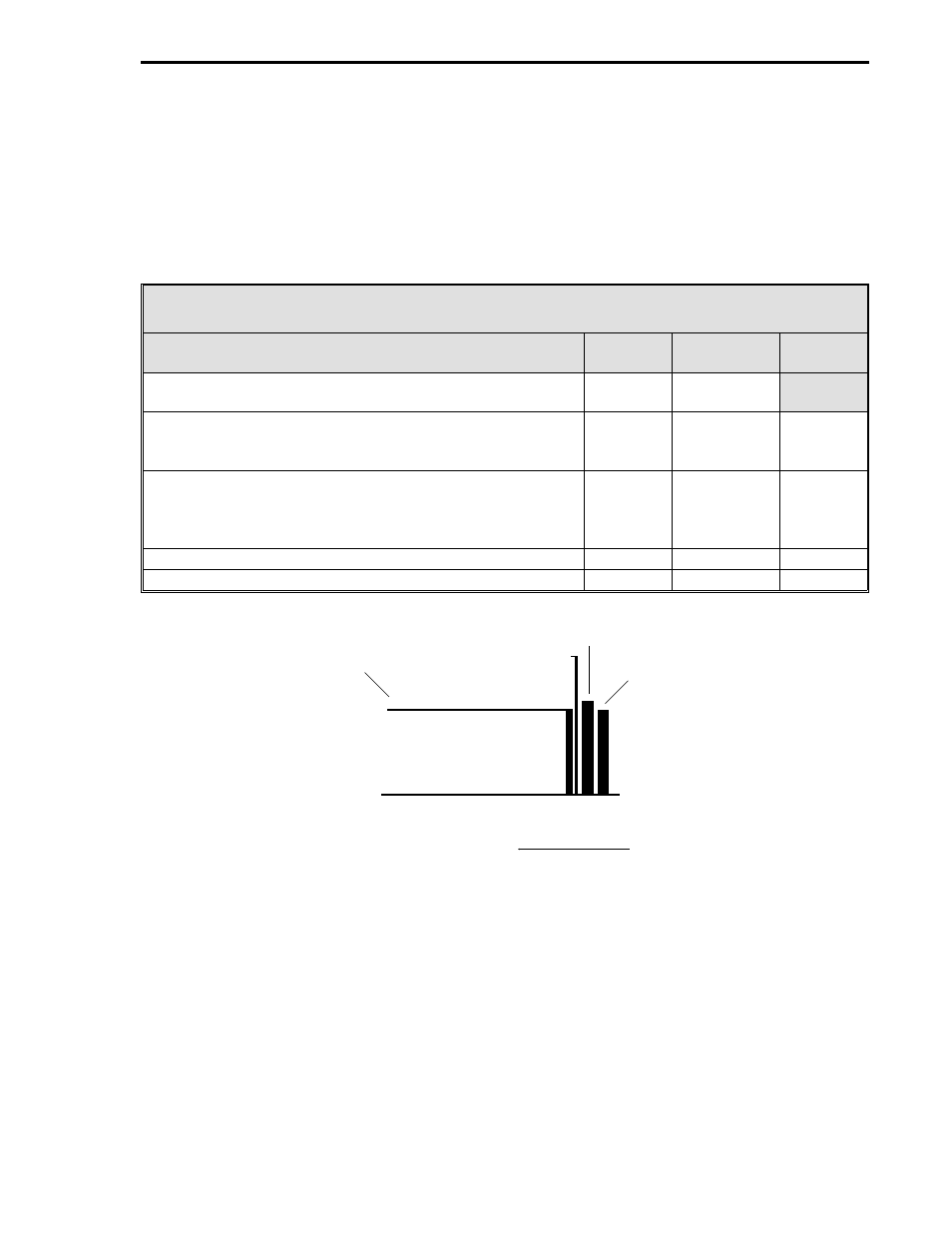

Single Loop with Horizontal Trend - As shown below, the
trend module for the Automatic/Manual Station is slightly
different than the one illustrated in Figure 4-10. 4.5 4-10 sheet 2
and figure
below
5-9
Parameter Module 0 - PID datapoints are not applicable
for this control strategy; therefore, this parameter module
can be ignored or reconfigured to display three other
datapoints that are frequently referenced. 4.6 4-11 5-11
Parameter Module 1- Alarm Limits 4.6 4-11 5-11
System Status 4.2 4-2 5-15
9.4 CS4 DATAPOINT CONFIGURATION SELECTIONS
See Figure 9-2 and Table 9-3 to configure datapoints for CS4 - Automatic/Manual Station.
Table 9-3 also lists the Section 5 modules that can be referenced for more detailed definitions of
the datapoints when required.
A datapoint does not have to be configured if the default value
listed in Table 9-3 is appropriate for the process application. Loading CS4 sets the CON0 dis-
play mode to 4 (CON Display Mode datapoint B339 = 4).
AI2 - ALARMED VARIABLE
AI0 - AUTO INPUT
AO0 - STATION OUTPUT
80 S 0.0
PERCENT
A
IN 50.56
OV 62.33
(THERE IS NO SETPOINT
VALUE IN THE BOTTOM
LEGEND)
Section 9. CS4 - Automatic/Manual Station
9-3
