4.3.4 POINT DISPLAY 3 (CDM = 3, RATIO CONTROLLER)
The Ratio Controller Display is illustrated in Figure 4-6. In the illustration the control module tag
name appears at the top of the display. The left side of the Ratio Controller Display (CDM = 3)
contains a fifty segment vertical axis with numerical values above and below it indicating its upper
and lower ranges. Left of the vertical axis is the process variable bar. Alarm limits appear left of the
process variable bar as indicators at the alarm limit values. On the immediate right of the vertical
axis are the setpoint arrowhead and ratio tick-pointer. The ratio tick-pointer indicates the value the
setpoint will assume when ratio operation is selected. Beneath the vertical axis is a forty segment
horizontal axis with the C and O close and open valve indicators at either end. The output bar moves
under the horizontal axis and the output value is also indicated numerically below the output bar. On
the right side of the display is the RAtio legend and the RAtio value that affects the output appears
immediately beneath it. The middle legend is the engineering units and the lower legend is PV with
the Process Variable value appearing below it. If the process variable bar moves beyond either
alarm limit indicator, an alarm overlay appears in the area below the control module tag name.

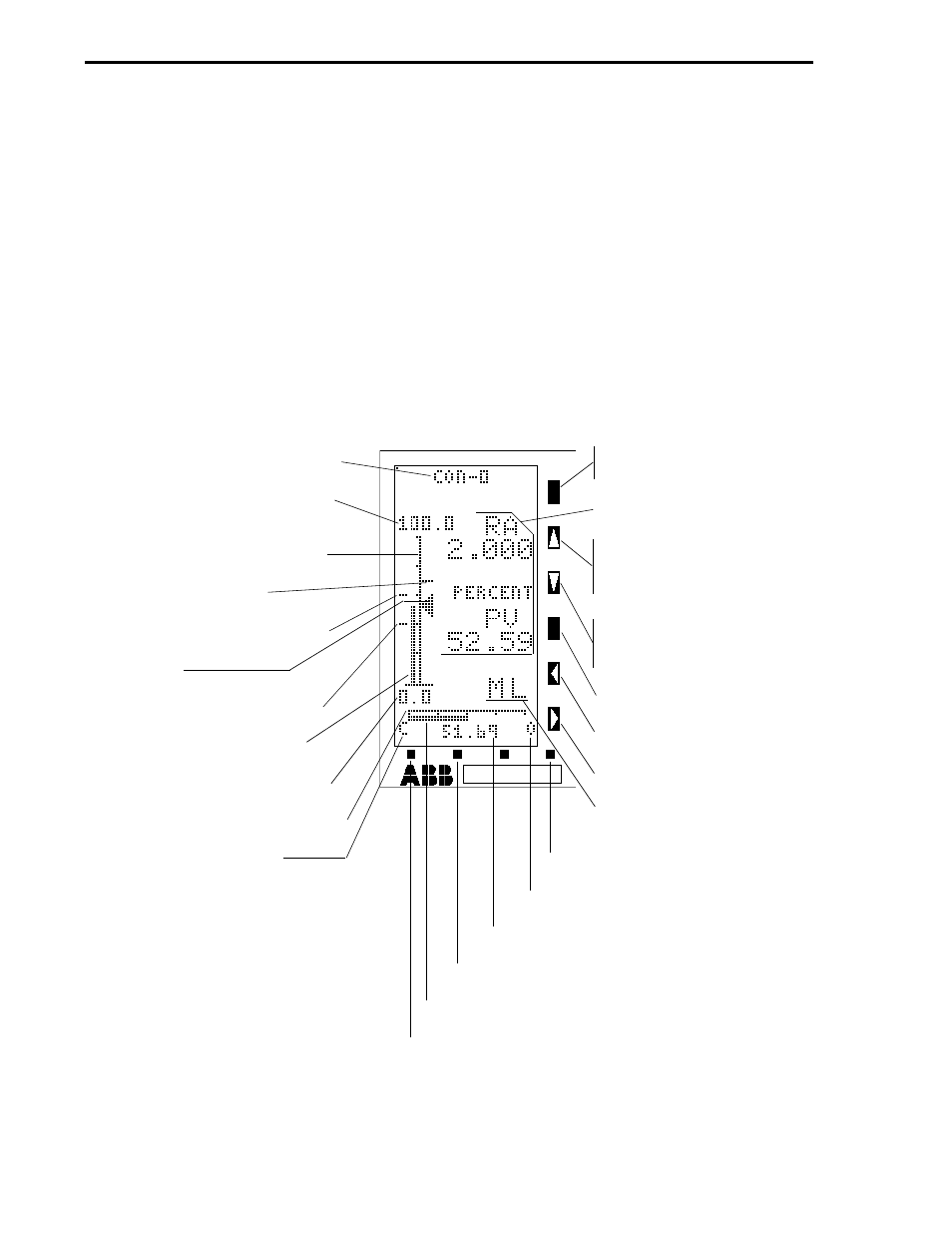

Figure 4-6. Point Display 3 (CDM = 3, Ratio Controller)
CONTROL MODULE TAG NAME
(A000)
CONTROLLER SPAN (C115) +
CONTROLLER LOWER RANGE
(C116)
50 SEGMENT VERTICAL AXIS
RATIO TICK-POINTER
CON0 ALARM LIMIT 1 (C103)*
SETPOINT
CON0 ALARM LIMIT 2 (C104)*
PROCESS VARIABLE BAR
CONTROLLER LOWER RANGE
(C116)
40 SEGMENT HORIZONTAL AXIS
C = CLOSE VALVE (SEE
REVERSE VALVE L109)
*(CONTROL ALARM MODE
B335=0)
**PB = PUSH BUTTON
MODE - ALARM RESET
O = OPEN VALVE
OUTPUT VALUE
F2 - PAGE IN LIST OR PAGE FORWARD
OUTPUT DYNAMIC BAR
F1 - NEXT DISPLAY GROUP OR PAGE BACK
R = RATIO CONTROL
L = LOCAL (SP) CONTROL
SELECT PB**
LEGENDS AND VALUES
R = RATIO TICK-POINTER
UP PB
L = SETPOINT UP PB
R = RATIO TICK-POINTER
DOWN PB
L = SETPOINT DOWN PB
AUTO/MANUAL OUTPUT
SELECTOR
M = DECREASE OUTPUT
PB
M = INCREASE OUTPUT
PB
M = MANUAL, L = LOCAL
STATUS INDICATORS
