T I M I N G
JTAG timing
510
Hardware Reference NS9215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
J T A G t i m i n g
All AC characteristics are measured with 10pF, unless otherwise noted.

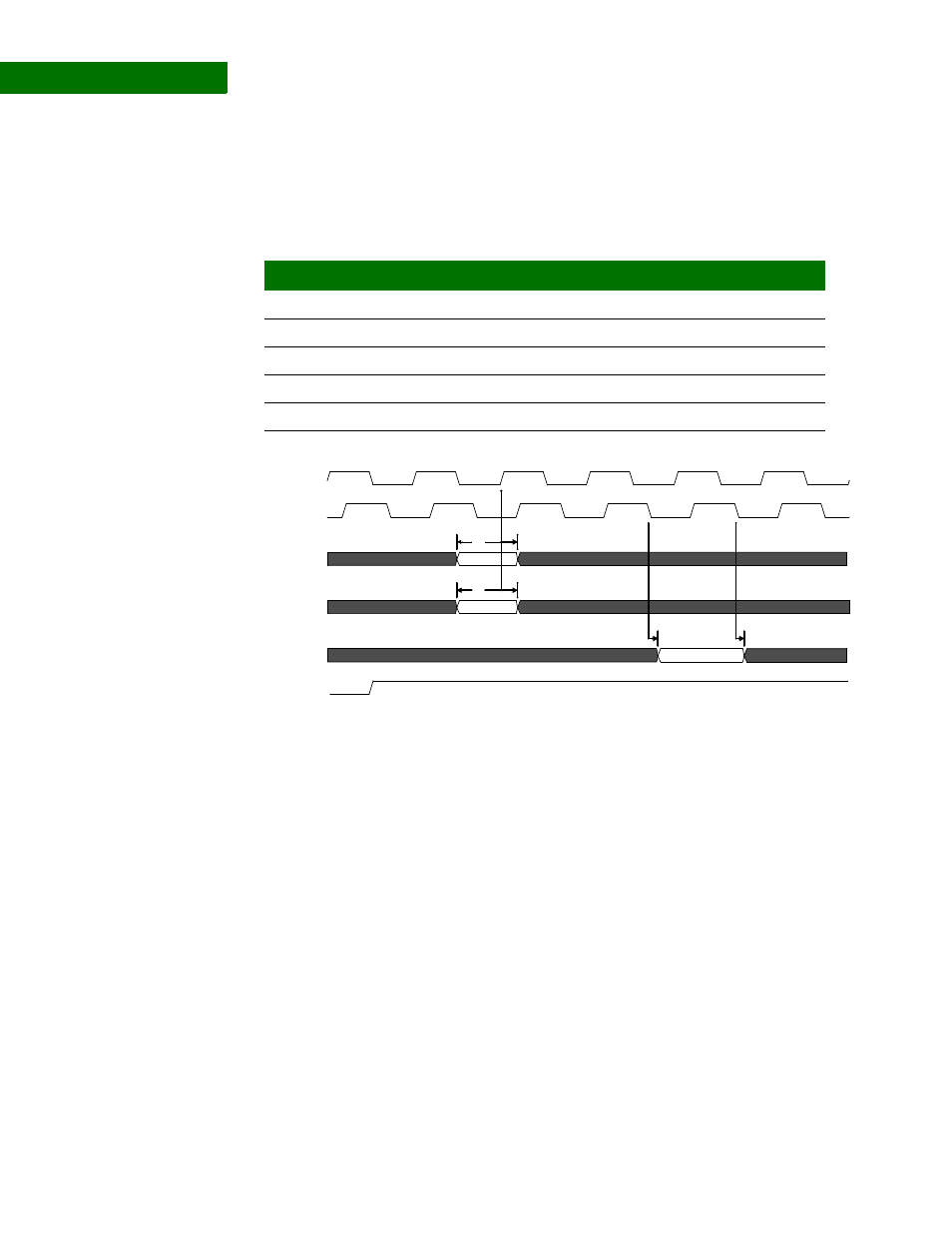

The next table describes the values shown in the JTAG timing diagram.
Notes:
1
Maximum tck rate is 10 MHz.
2
rtck_out
is an asynchronous output, driven off of the CPU clock.
3
trst_n
is an asynchronous input.
Parm
Description
Min
Max
Unit
J1
tms (input) setup to tck rising
5
ns
J2
tms (input) hold to tck rising
2
ns
J3
tdi (input) setup to tck rising
5
ns
J4
tdi (input) hold to tck rising
2
ns
J5
tdo (output) to tck falling
2.5
10
ns
J1
J2
J3
J4
J5
J5
tck
rtck_out
tms
tdi
tdo
trst_n
