Digi NS9215 - Manual (Page 503)

. . . . .
T I M I N G
Memory Timing
www.digiembedded.com 503
Ethernet timing
All AC characteristics are measured with 10pF, unless otherwise noted.
The table below describes the values shown in the Ethernet timing diagrams.
Notes:
1 Minimum specification is for fastest AHB bus clock of 88.5 MHz. Maximum specification is
for slowest AHB bus clock of 51.6 MHz.
2
C load = 10pf for all outputs and bidirects.
3 Minimum specification is for fastest AHB clock at 88.5 MHz.

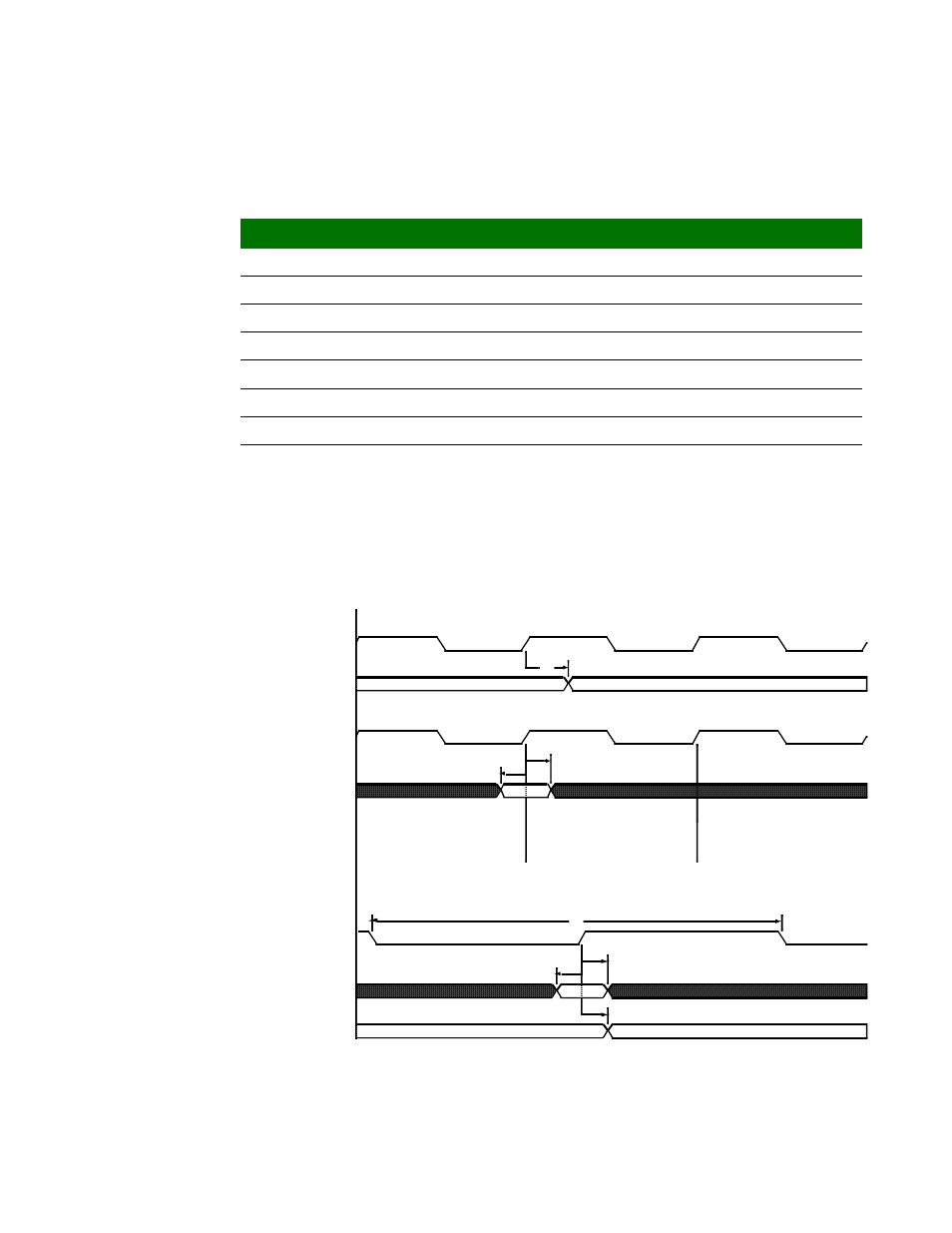

Ethernet MII
timing
Parm Description Min Max Unit Notes
E1 MII tx_clk to txd, tx_en, tx_er 3 11 ns 2
E2 MII rxd, rx_en, rx_er setup to rx_clk rising 3 ns
E3 MII rxd, rx_en, rx_er hold from rx_clk rising 1 ns
E4 mdio (input) setup to mdc rising 10 ns
E5 mdio (input) hold from mdc rising 0 ns 2
E6 mdc to mdio (output) 18 34 ns 1, 2
E7 mdc period 80 ns 3
E6
E5
E 4
E 3
E2
E1
E7 E7
t x _c lk
tx d[ 3:0 ],tx _ en ,tx _ er
r x _c lk
r x d [3:0 ],r x _e n, rx _ er
md c
md io ( inpu t)
md io ( ou tpu t)
