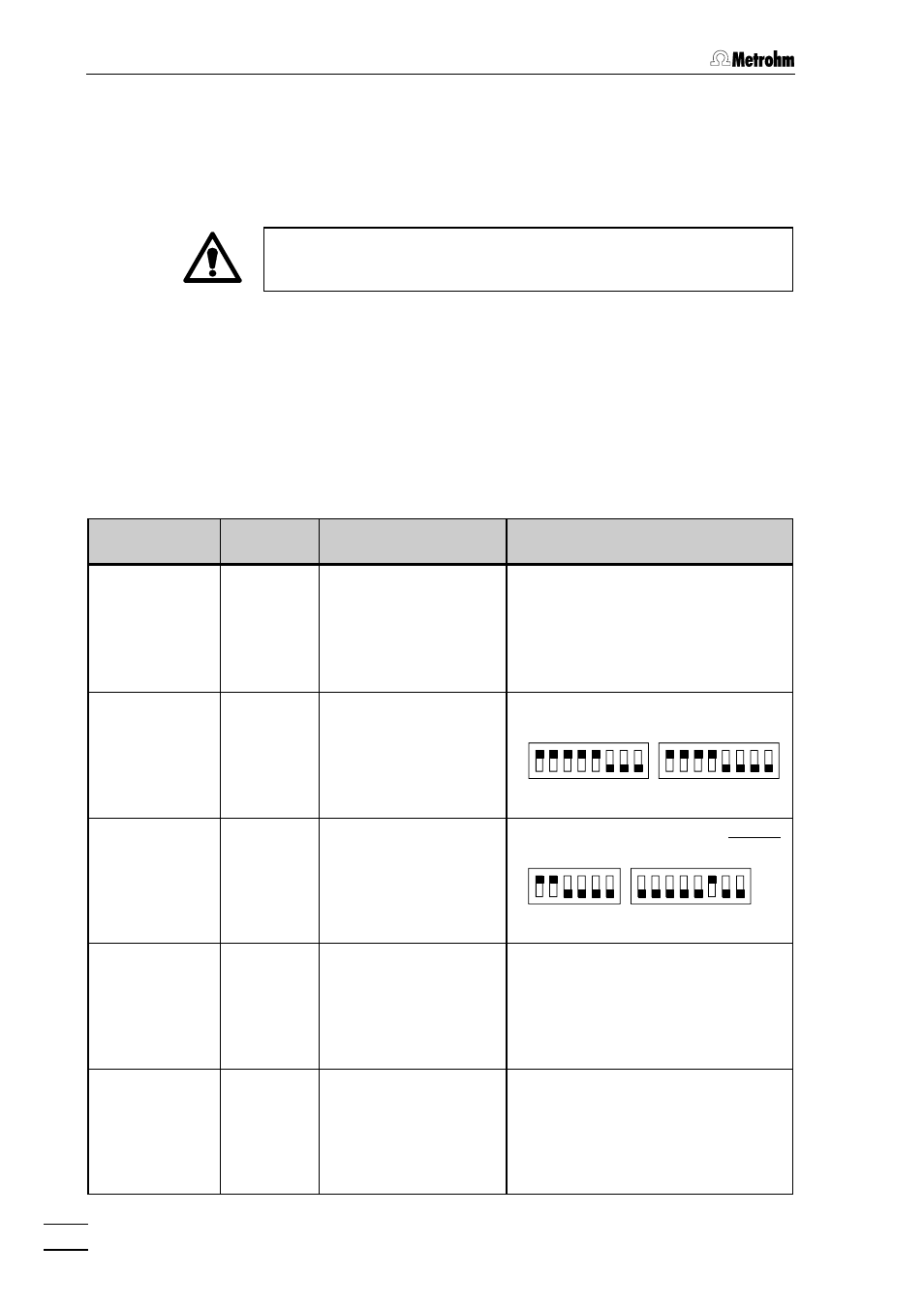

2.9.6 Connection of a printer
External printers are normally connected to the 732 IC Detectorr via the
RS232 interfaces 16 16 (see Fig. 3). If no 709 IC Pump is connected, a
printer can also be attached to connection 15 15 "709 IC Pump". You will
find more detailed information on the RS232 interfaces in section 6.1.
Before a printer is connected to the RS232 interfaces 16 16 or 15 15, the
732 IC Detector always be switched off with mains switch 9 9 !
Printers with the following printer drivers can be connected to the two
RS232 interfaces of the 732 IC Detector (see also section 4.4.2):
IBM
IBM Proprinter and printers with IBM emulation
Epson
EPSON printers and printers with EPSON emulation
Seiko
Seiko printer DPU-411/414
Citizen
Citizen printer IDP562 RS
HP
HP printer and printers with PCL3 emulation
The following table provides information on a few selected printers.
Printer Cable Settings on 732 IC
Detector
Settings on printer
IBM Proprinter 6.2125.050 >CONFIG/printer
send to: IBM
>CONFIG/RS settings
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
see printer manual
Epson
with 6-pin round
connector
6.2125.040 >CONFIG/printer
send to: Epson
>CONFIG/RS settings
baud rate: 9600
data bit: 8
stop bit: 1
parity none
handshake: HWs
Settings of the DIP switches:
SW1 SW2
on
off
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
Epson
with additional
serial interface
#8148
6.2125.050 >CONFIG/printer
send to: Epson
>CONFIG/RS settings
baud rate: 9600
data bit: 8
stop bit: 1
parity none
handshake: HWs
Settings of the DIP switches on the interface:
SW1 SW2
on
off
1 2 3 4 5 6 7 8 1 2 3 4 5 6
Epson LX-300 6.2125.050 >CONFIG/printer
send to: Epson
>CONFIG/RS settings
baud rate: 9600
data bit: 8
stop bit: 1
parity none
handshake: HWs
see printer manual
Epson and Canon
printers with
parallel interface
6.2125.020
+
2.145.0300
Serial/
parallel
converter
>CONFIG/printer
send to: Epson
>CONFIG/RS settings
baud rate: 9600
data bit: 8
stop bit: 1
parity none
handshake: HWs
see printer manual
