1.2 Parts and controls
732 IC Detector / 733 IC Separation Center
3
1.2 Parts and controls
1.2.1 732 IC Detector
SCALE
FULL
EVENT
R/S
PROG
THERMOSTAT
OVERLOAD
METHOD
PROGRAM
PRINT
PUMP R/S
REPORT
ZERO OFF
PLOT
MARK
SELECT CLEAR
QUIT ENTER ZERO 0
1
4
7
2 3
5 6
8 9
- /+
.
PARAM
IC Detector 732
CONFIG +0.023 µS/cm 15.2 min
Full Scale 5.00 µS/cm
88 11 22 33 44
77 66 55

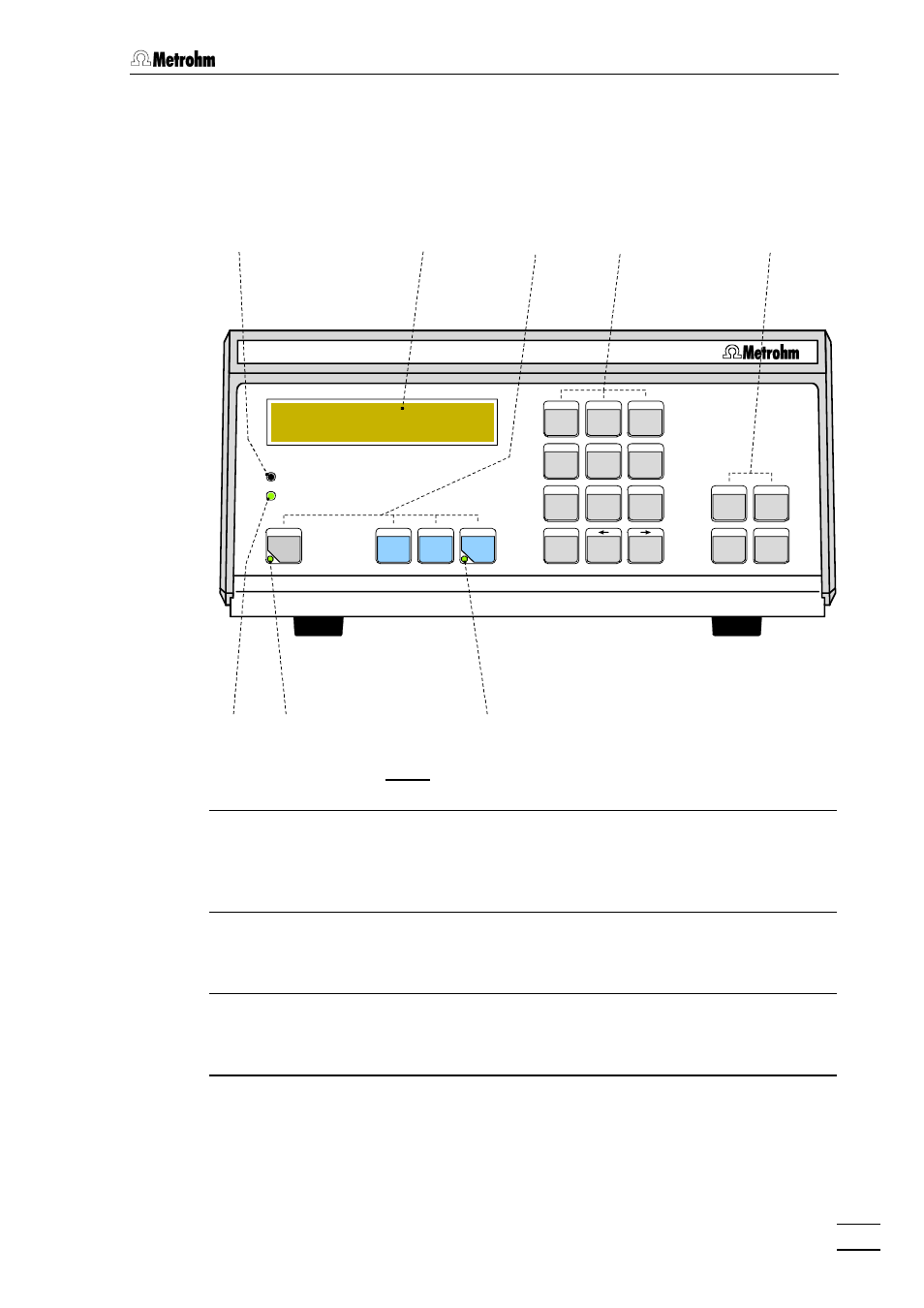

Fig. 2: Front of the 732 IC Detector
11 Display (LCD)
comprising 2 lines each of 24
characters
55 Program status display (LED)
LED dark: Program inactive
LED lit up: Program ready
LED flashes: Program running
22 Main function keys
Auto-zero, Parameters, Full Scale,
Program start/stop
66 Auto-zero display (LED)
LED dark: Auto-zero switched off
LED lit up: Auto-zero switched on
33 Numeric keys
Edit mode: Numeric keys
Basic mode: Function keys
77 Thermostat display (LED)
LED dark: Heating switched off
LED lit up: Heating switched on
44 Auxiliary function keys
Select, Clear, Quit, Enter
88 Overload display (LED)
LED lit up: Meas. signal >150%
of full-scale range
LED flashes: Meas. signal >180%
of full-scale range
