Metrohm 732 IC Detector - Manual (Page 105)

4 Operation
732 IC Detector / 733 IC Separation Center
98
>PARAM/detector
full scale: 1.00 mS/cm
0.05 µ S/cm … 10 mS/cm
Full-scale range (operating range)
The full-scale range (operating range) sets the desired
sensitivity for the display and analog output of the
measuring signal during the recording of a chroma-
togram. The following points should be noted:
• The possible values of the full-scale range which can
be selected with the key depend on thepreset measuring range "range". This value can bereduced in a total of 11 stages by a factor 1 (lowestsensitivity) up to maximum a factor of 2000 (highestsensitivity).• The full-scale range is primarily used to increase thesensitivity for the recording of the chromatogramfollowing the electronic background compensation ofthe eluent sensitivity (auto-zero function, see alsodescription in section 4.6.3).• For the selected full-scale range (FS), the linearity ofthe conductivity measurement is assured in therange -1.5 FS…+1.5 FS. If the measured value vio-lates these limits, overload display 88 lights up, butthe measured value is still displayed. If the measuredvalue lies outside ±1.8 FS, overload display 88 startsto flash, at the same time display 11 shows the abso-lute conductivity in place of the auto-zero value.• The full-scale range determines the limits for theoutput of the analog signal at analog outputs 1111(0…1 V) and 1212 (0…10 mV). The polarity of the out-put signal can be changed at any time with the pa-rameter "polarity" to "+" (0…+FS) or "–" (0…–FS).0R1.1 R0+ FS– FS+ 1.5 FS+ 1.8 FS– 1.5 FS
– 1.8 FS0+–0 V1 V / 10 mV1 V / 10 mVMeasuring rangeFull-scale range FSAnalog outputConductivityDisplay"--------"Overload lit upOverload flashesOverload lit upOverload flashes Pages: 1 … 103 104 105 106 107 … 223 wrong Brand wrong Model non readable See also other documents in the category Metrohm Equipment: 915 KF Ti-Touch (382 pages) 800 Dosino (53 pages) 767 Calibrated Reference (23 pages) 940 Professional IC Vario ONE/SeS/Prep 2 (54 pages) 754 Dialysis Unit (49 pages) 815 Robotic Soliprep for LC (76 pages) Vision Manual (207 pages) tiamo 2.1 Manual (1532 pages) 825 Lab Link (37 pages) 808 Titrando (70 pages) 902 Titrando (52 pages) 756 KF Coulometer (163 pages) 756 KF Coulometer (162 pages) 940 Professional IC Vario ONE/LPG (98 pages) 850 Professional IC Anion MCS Prep 3 (154 pages) 850 Professional IC Anion MCS Prep 3 (152 pages) 904 Titrando (58 pages) 850 Professional IC Anion MSM-HC MCS Prep 2 (150 pages) 930 Compact IC Flex Oven/ChS/Deg (47 pages) 872 Extension Module Liquid handling (64 pages) 814 USB Sample Processor (90 pages) 814 USB Sample Processor (91 pages) 940 Professional IC Vario (43 pages) Vision – Tutorial (40 pages) 799 GPT Titrino (242 pages) 889 IC Sample Center (68 pages) 761 Compact IC (228 pages) 851 Titrando (100 pages) 748 DH Sample Changer (32 pages) 940 Professional IC Vario ONE/SeS/HPG (51 pages) 896 Professional Detector – Amperometry (62 pages) 877 Titrino plus (139 pages) 881 Compact IC pro – Anion (129 pages) 940 Professional IC Vario ONE/ChS/HPG (112 pages) 930 Compact IC Flex Deg (41 pages) 840 PC Control 5.0 / Touch Control (351 pages) 940 Professional IC Vario ONE/Prep 1 (45 pages) 776 Dosimat (42 pages) 717 Sample Changer (36 pages) 815 Robotic USB Sample Processor XL (113 pages) 815 Robotic USB Sample Processor XL (114 pages) 940 Professional IC Vario ONE/SeS/PP (126 pages) 838 Advanced Sample Processor Installation Instructions (109 pages) 700 Dosino (55 pages) 719 S Titrino (152 pages) Sitemap
preset measuring range " range " . This value can be
reduced in a total of 11 stages by a factor 1 (lowest
sensitivity) up to maximum a factor of 2000 (highest
sensitivity).
• The full-scale range is primarily used to increase the
sensitivity for the recording of the chromatogram
following the electronic background compensation of
the eluent sensitivity (auto-zero function, see also
description in section 4.6.3).
• For the selected full-scale range (FS), the linearity of
the conductivity measurement is assured in the
range -1.5 FS … +1.5 FS. If the measured value vio-
lates these limits, overload display 88 lights up, but
the measured value is still displayed. If the measured
value lies outside ± 1.8 FS, overload display 88 starts
to flash, at the same time display 11 shows the abso-
lute conductivity in place of the auto-zero value.
• The full-scale range determines the limits for the
output of the analog signal at analog outputs 11 11
(0 … 1 V) and 12 12 (0 … 10 mV). The polarity of the out-
put signal can be changed at any time with the pa-
rameter " polarity " to " + " (0 … +FS) or " – " (0 … –FS).

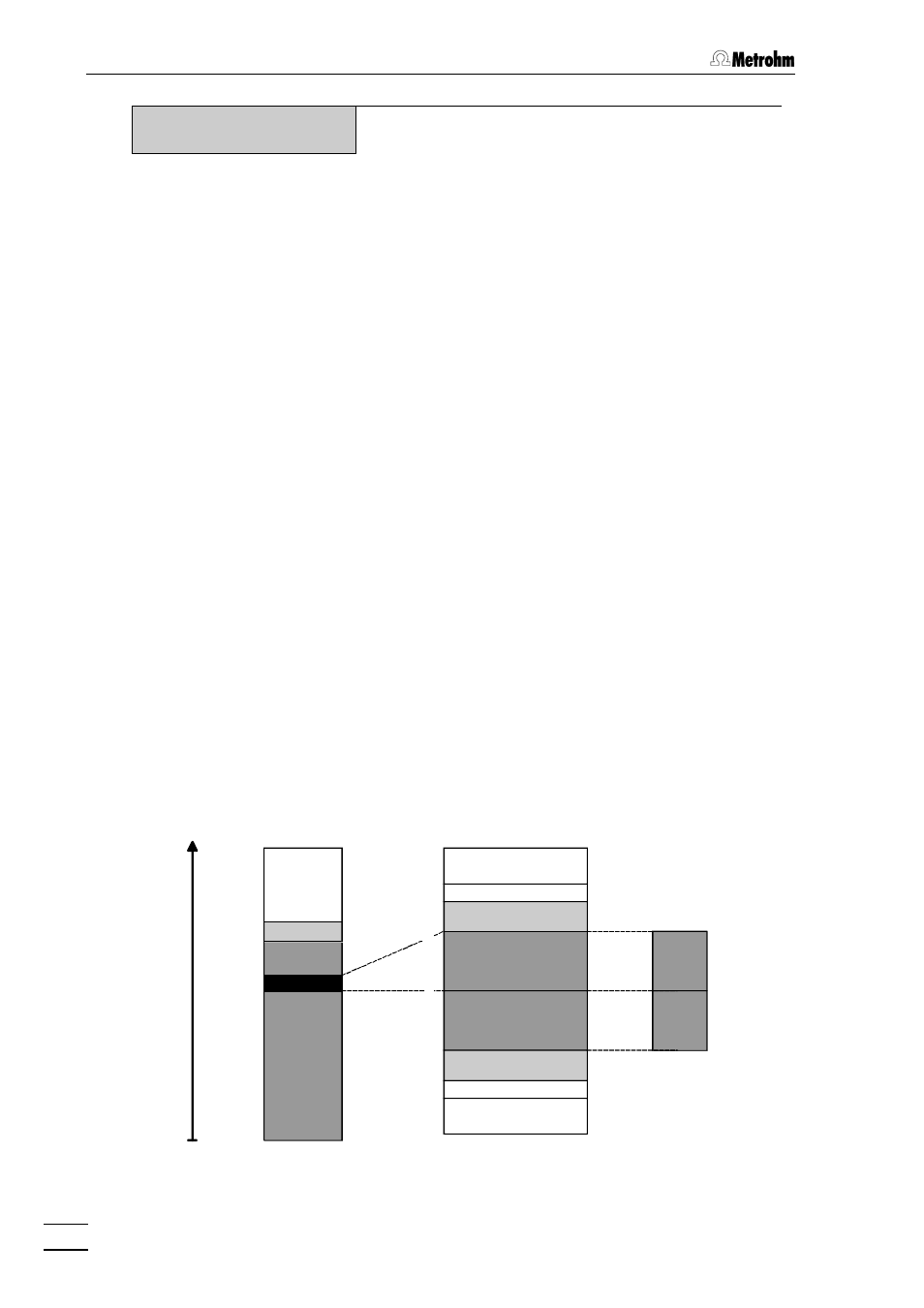

0
R
1.1 R
0
+ FS
– FS
+ 1.5 FS
+ 1.8 FS
– 1.5 FS
– 1.8 FS
0
+
–
0 V
1 V / 10 mV
1 V / 10 mV
Measuring range Full-scale range FS Analog output
Conductivity
Display
"
--------
"
Overload lit up
Overload flashes
Overload lit up
Overload flashes
