1 Introduction
732 IC Detector / 733 IC Separation Center
4
S
WARNING - Fire Hazard -
with the same type and rating of fuse
For continued protection replace only
Type 1.732.0010 Nr.
f=50-60 Hz
S=70 VA
Fuse
100-120V:
220-240V:
0,63A(T)
0,315A(T) RS 232
Detector Block
733 IC Separation Center
709 IC Pump
Output
Made by Metrohm Herisau Switzerland
0...1V 0...10mV
Remote
13 13 12 12 11 11 10 10
19 19 18 18 17 17 16 16 15 15 14 14
99

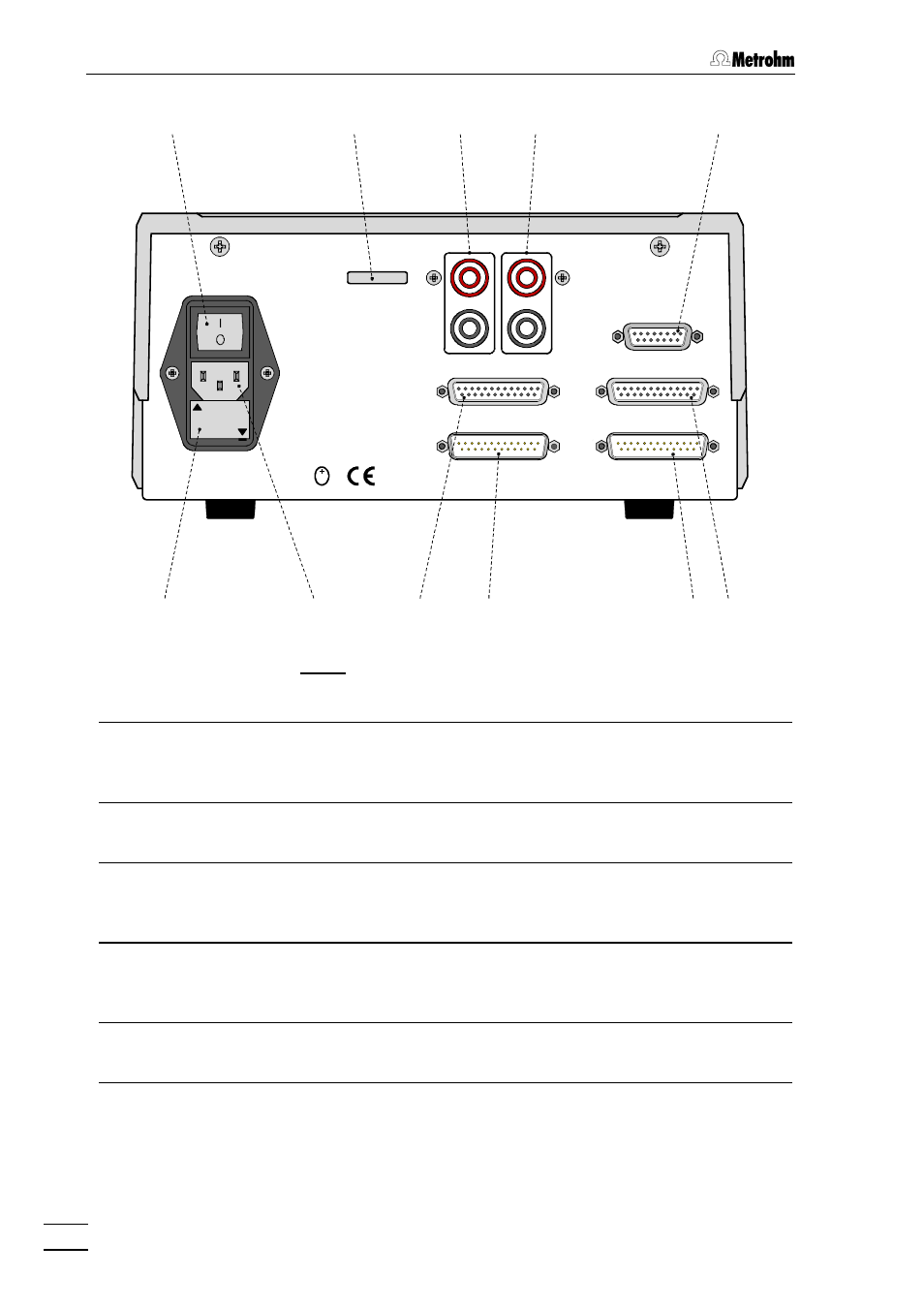

Fig. 3: Rear of the 732 IC Detector
99 Mains switch
switch to switch instrument on and off:
I = ON 0 = OFF
15 15 Connection for 709 IC Pump
RS232 interface, can also be used for
connection of a printer
10 10 Serial number 16 16 RS232 interface
connection of a printer, PC, etc.
11 11 Analog output 0 … …1 V
red socket: live
black socket: common
17 17 Remote interface
remote I/O lines for connection of
external devices
12 12 Analog output 0 … …10 mV
red socket: live
black socket: common
18 18 Mains connection plug
mains connection, see section 2.4
13 13 Connection for detector block 19 19 Fuse holder
changing the fuses, see section 2.4
14 14 Connection for 733 IC Separation
Center
