2.3 Connection of 733 IC Separation Center
732 IC Detector / 733 IC Separation Center
15
3 Connect waste container
• Lead the outlet capillaries of the two detector blocks to a
sufficiently large waste container and fix in place.
4 Connect 732 to 733
• Plug one end of the 6.2125.090 Connecting cable into con-
nection 14 14 "733 IC Separation Center“ of the first 732 IC De-
tector and fasten to the instrument by tightening the screws
in the cable connector (see Fig. 7).
• Plug other end of the 6.2125.090 Connecting cable into
connection 36 36 "732 IC Detector" of the 733 IC Separation
Center and fasten to the instrument by tightening the screws
in the cable connector.
• Plug one end of the 6.2125.090 Connecting cable into con-
nection 14 14 "733 IC Separation Center" of the second 732 IC
Detector and fasten to the instrument by tightening the
screws in the cable connector.
• Plug the other end of the 6.2125.090 Connecting cable into
connection 45 45 "732 IC Detector" of the 733 IC Separation
Center and fasten to the instrument by tightening the screws
in the cable connector.
RUN COM
6.2125.090 6.2125.090

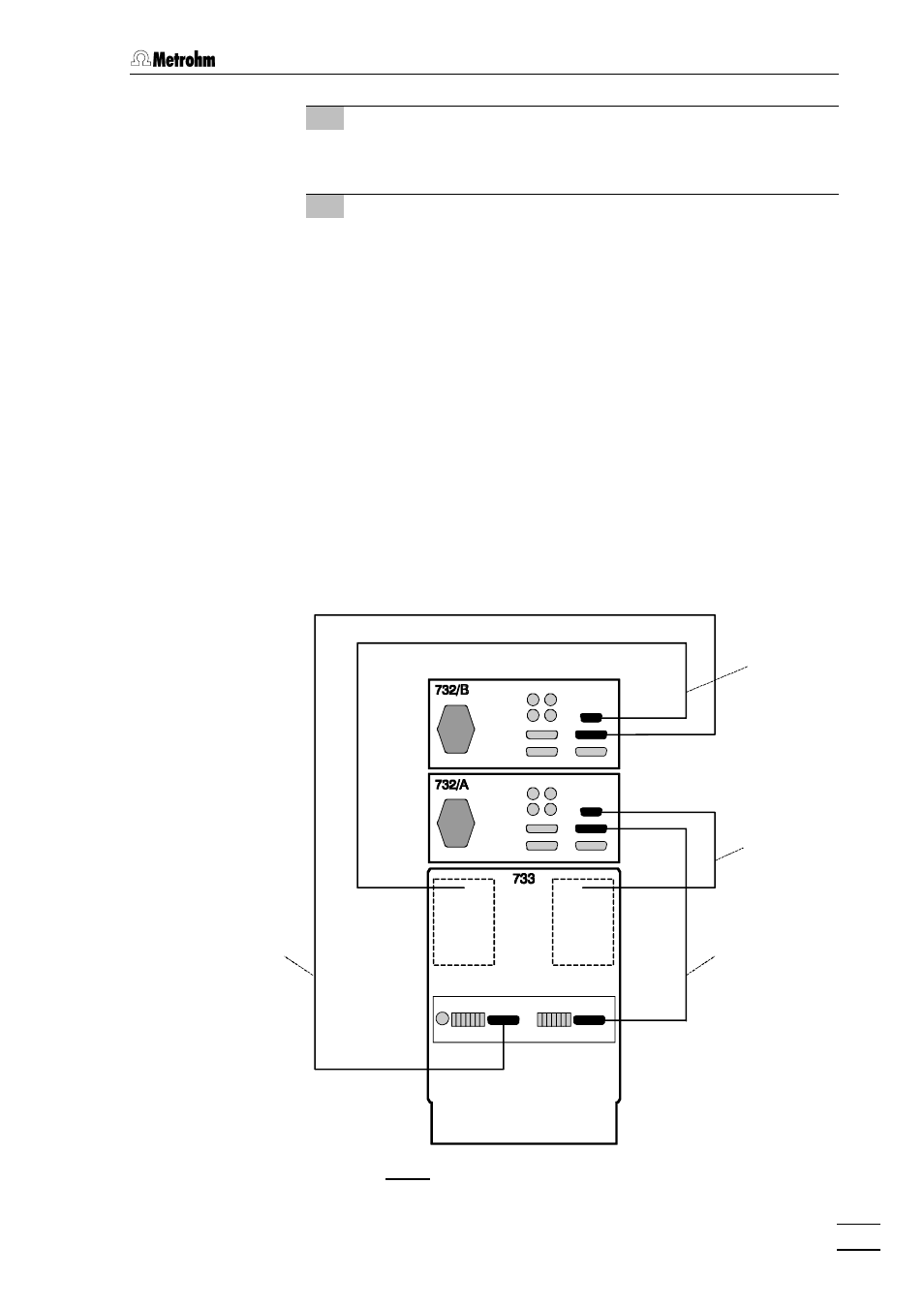

Fig. 7: Connection 732 – 2.733.0X20
Cable from
detector block
Cable from
detector block
