Text mode
Original mode

Appendix B

Components

B-39

B.24

FAN Backplane

The FAN backplane (FANBP) is a PCB that has a connector for connecting multiple
FAN units (FAN_A or FAN_B). Three types of FANBP are available: the FANBP_C
for the M8000, and FANBP_A and FANBP_B for the M9000.

FIGURE B-36

FIGURE B-37

, and

FIGURE B-38

show the FANBP.

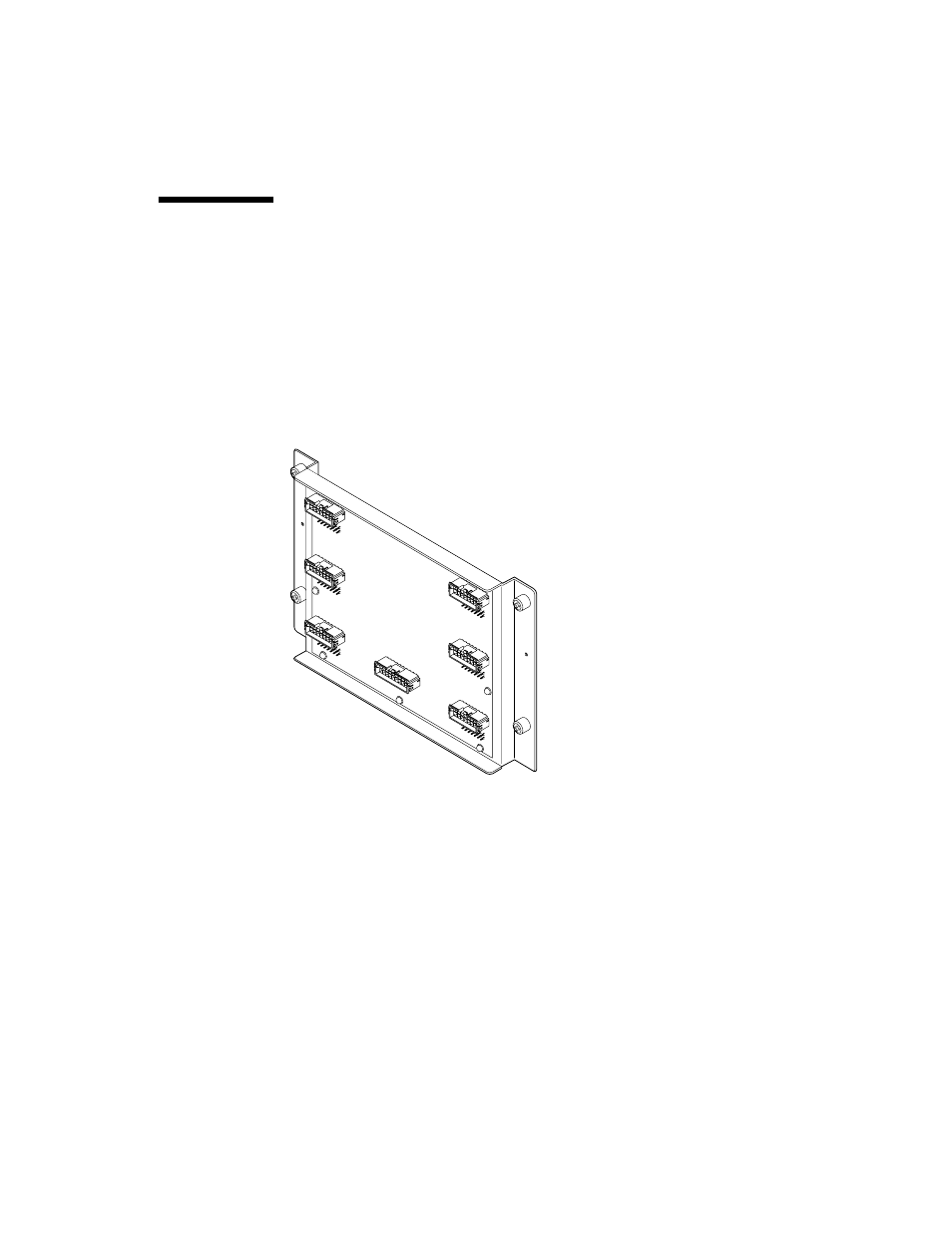

FIGURE B-36

FAN Backplane (FANBP_A)
