Chapter 8 FAN Unit Replacement 8-9
c. From here, perform the operation according to the instructions displayed in
the maintenance menu.
Check the states of LEDs (POWER LED: off; CHECK LED: blinking) on the
FAN unit to be replaced, and begin the actual replacement work when a
message instructing the user to replace the target FAN unit is displayed. Leave
the maintenance menu as is until
Step 7 .
3. Connect the wrist strap clip to a cabinet grounding port, and attach the band of
the wrist strap to one of your wrists.
4. Using a Phillips screwdriver, loosen the knob screw of the fixing bracket of the
FAN unit to release the bracket.
5. While grasping the handle of the FAN unit to be replaced, pull it out slowly
from the slot.

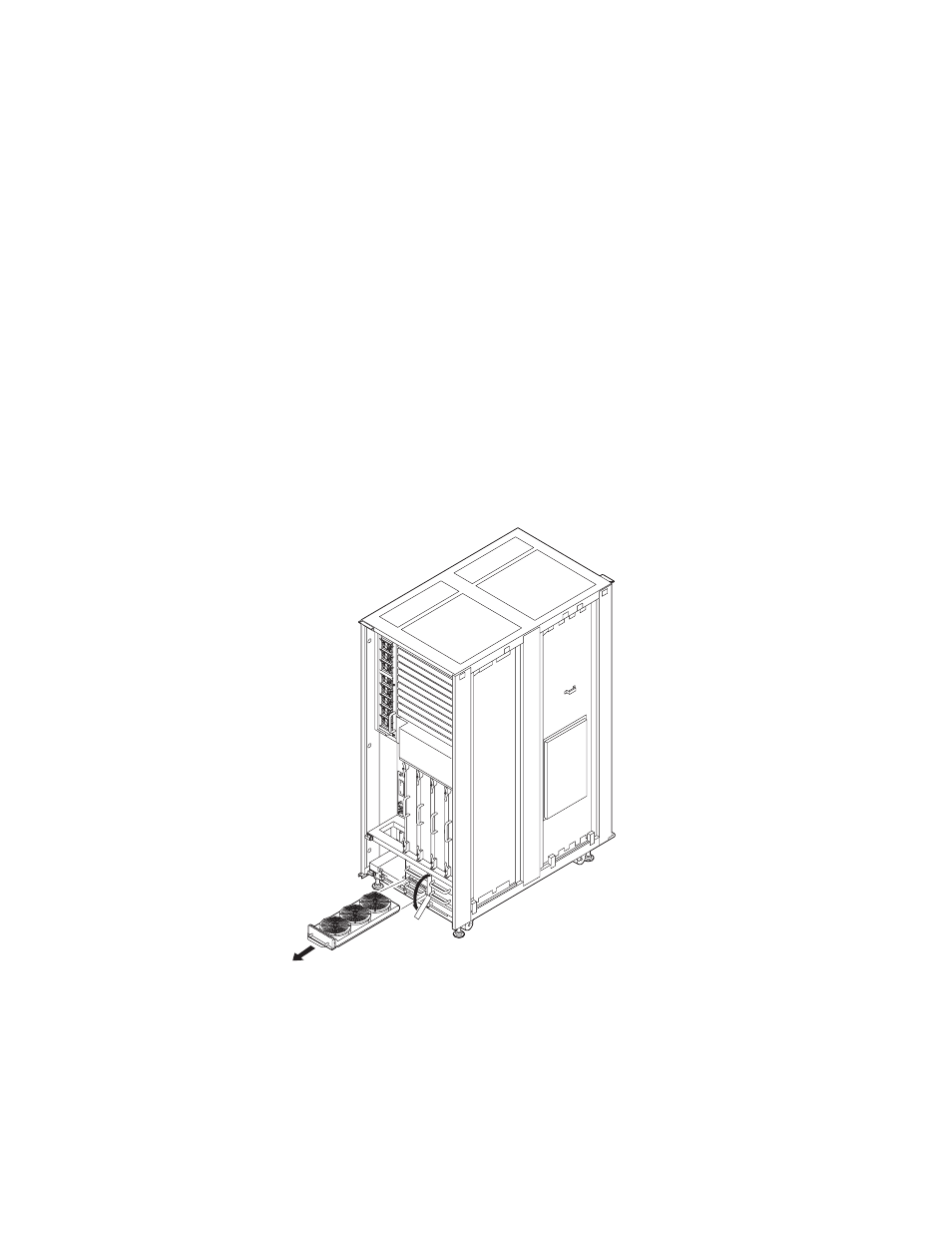

FIGURE 8-8 Removing the FAN Unit (Front of M8000)
1
2
