Appendix B Components B-13
B.8 Link Card (External I/O Expansion Unit
Connection Card)
The external I/O expansion unit connection card includes two link cards. One link
card is mounted on the host server. The other link card is mounted on the I/O boat.
The cards are supplied with a cable for connection.
FIGURE B-8 shows the PCIB-EX.

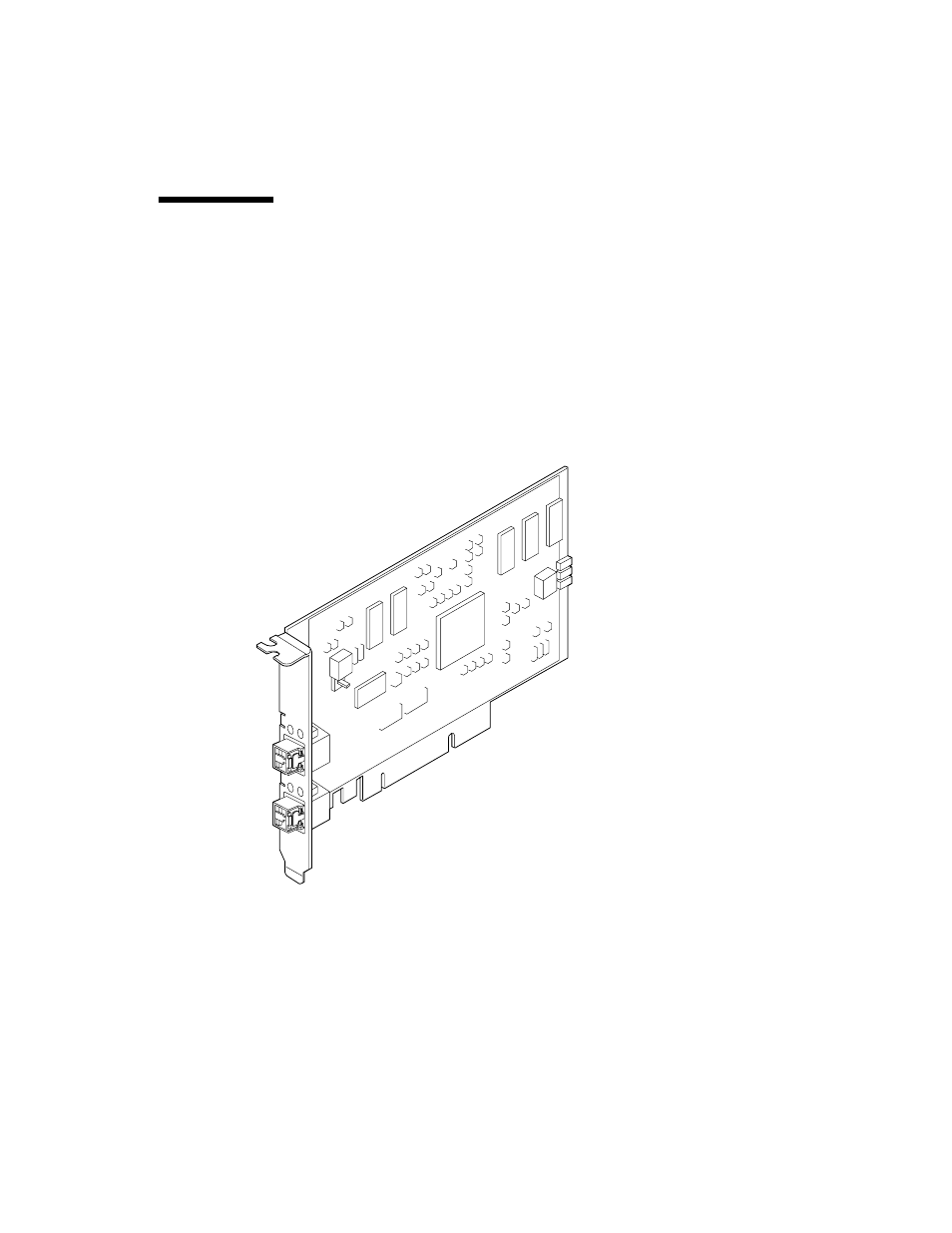

FIGURE B-8 External I/O Expansion Unit Connection Card (PCIB-EX)
The PCIB-EX has the following characteristics.
■ Active maintenance of a PCIB_EX is possible using the PHP function.
■ Active installation or removal of PCI cards (including link cards) is possible using
the PHP function.
■ The maximum cable length for a card is 25 m.
