FUJITSU SPARC ENTERPRISE M8000 User Manual
Page 151
Chapter 5
Internal Components Access
5-5
The procedure for removing the side panel is follows.
1. Using a Phillips screwdriver, completely loosen the one or two screws at the
lower part of the side panel.
2. Lift the side panel, and remove it from the cabinet.
3. Keep the side panel in a safe place.
To reinstall the side panel, reverse the above steps for removing it.

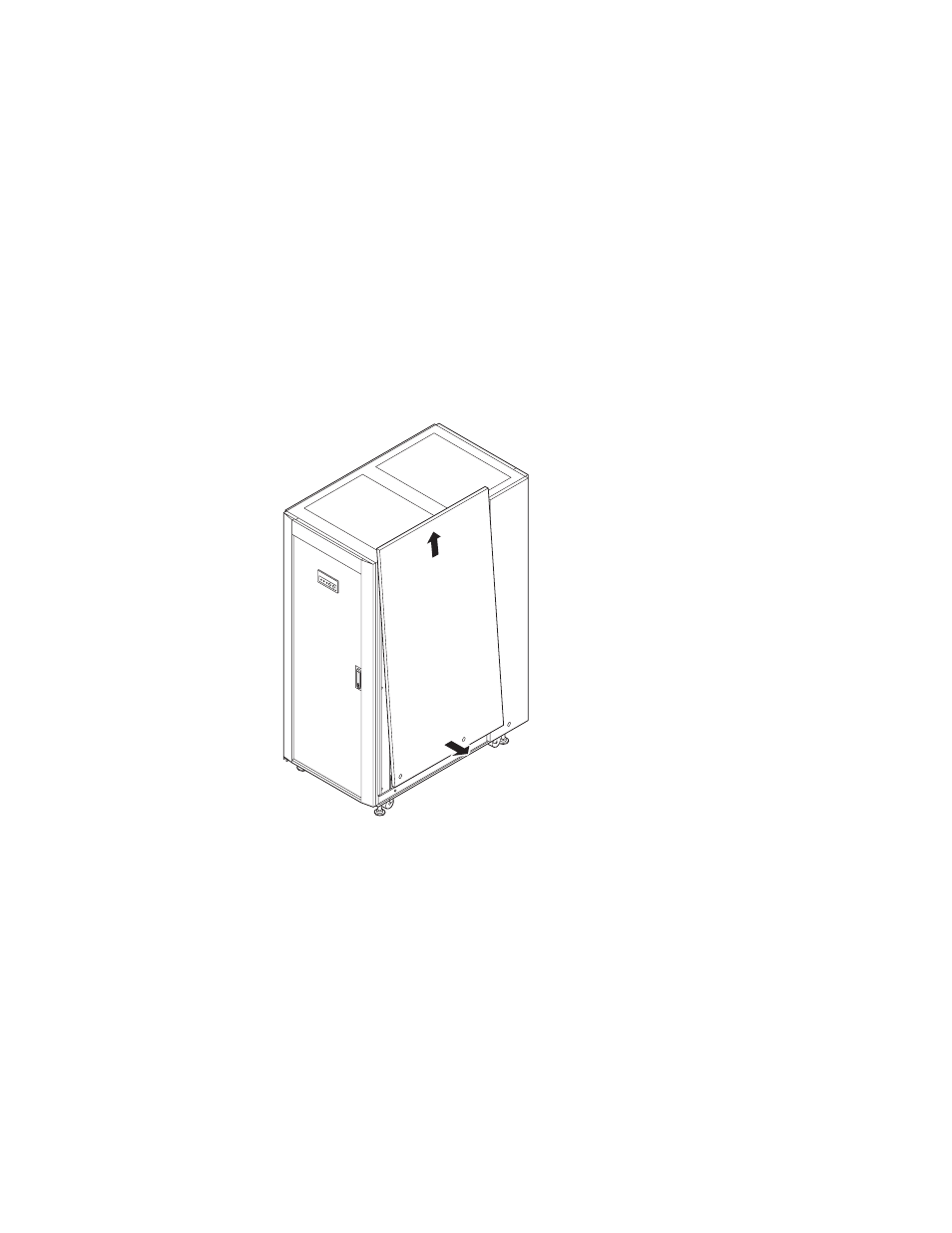

FIGURE 5-3
How to Remove a Side Panel
