FUJITSU SPARC ENTERPRISE M8000 User Manual
Page 421
Chapter 24
Addition and Deletion of a RDPF Option, Power Cabinet, and M9000 Expansion Cabinet
24-7

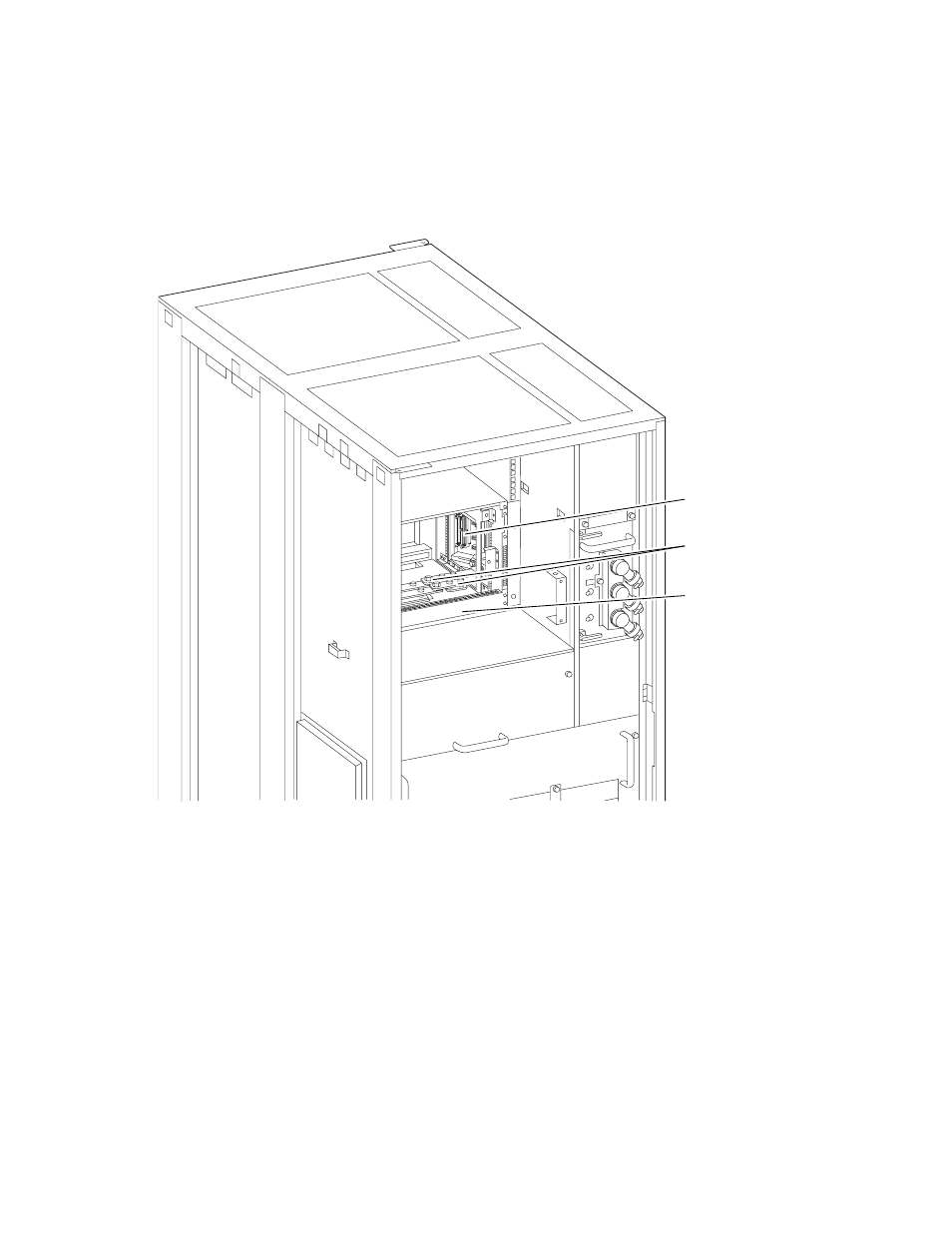

FIGURE 24-4
Mounting the Cable (Rear of M8000)
m. Mount the bracket with a conductive spring (with two screws) at the bottom
rear of the dual power feed unit.
n. Mount the connector unit that was removed in
at its original location.
bus bar
connector panel
conductive-spring-
attached bracket
