Text mode
Original mode

Chapter 13

PCI Slot Device Replacement 13-11

c. Align the PCI card with the center part of the lower latch of the cassette.

Then, while pressing the PCI card against the center part of each of the
upper latches of the cassette, tighten the fixing screws in the sequence
shown in

FIGURE 13-8

to fix the card in position..

Note –

To ensure that the PCI card is properly mounted, you need to confirm that

the PCI card base is properly centered at the latches and securely fastened in
position.

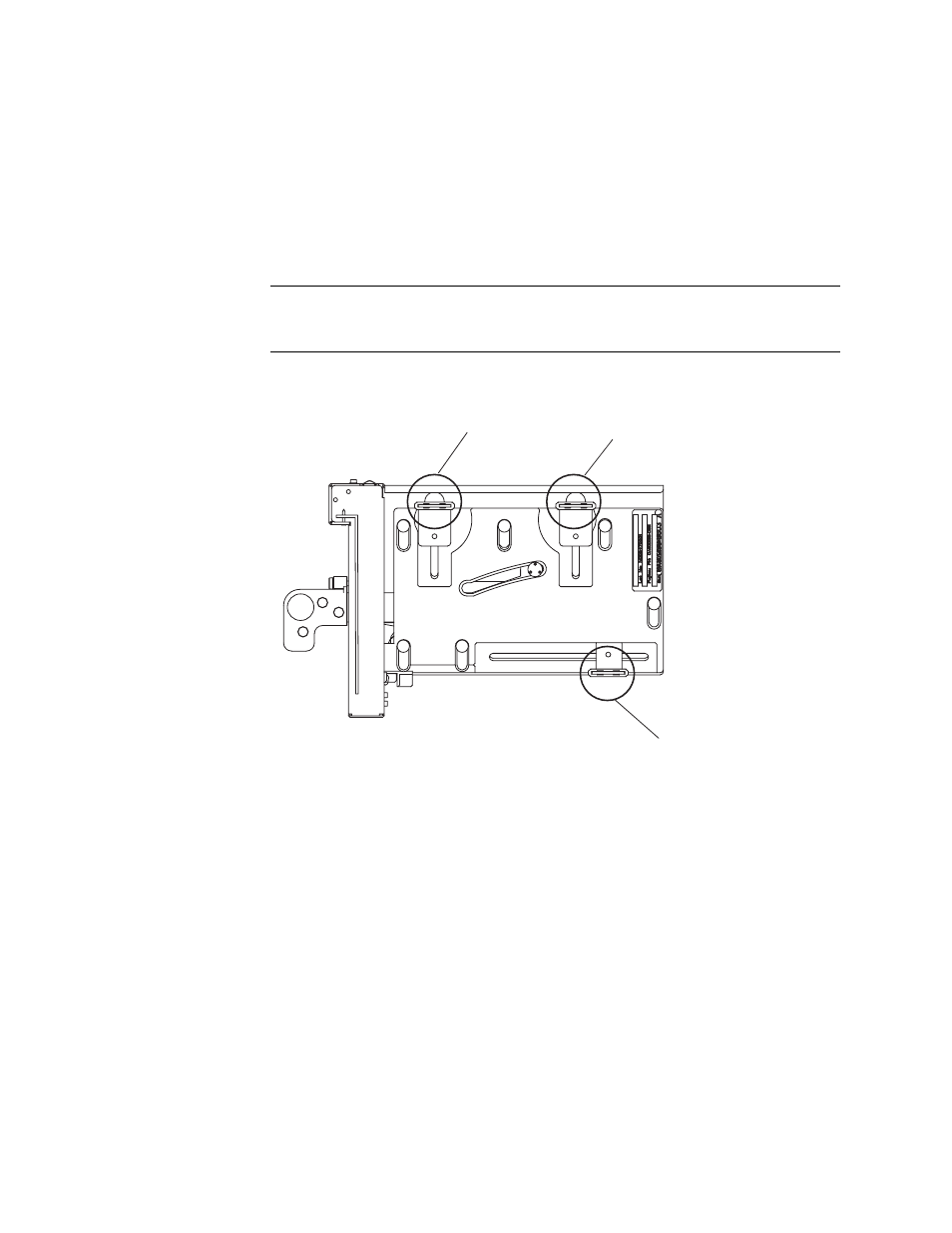

FIGURE 13-8

Sequence of Fixing the PCI Card in Position
