7-14 SPARC Enterprise M8000/M9000 Servers Service Manual • August 2009

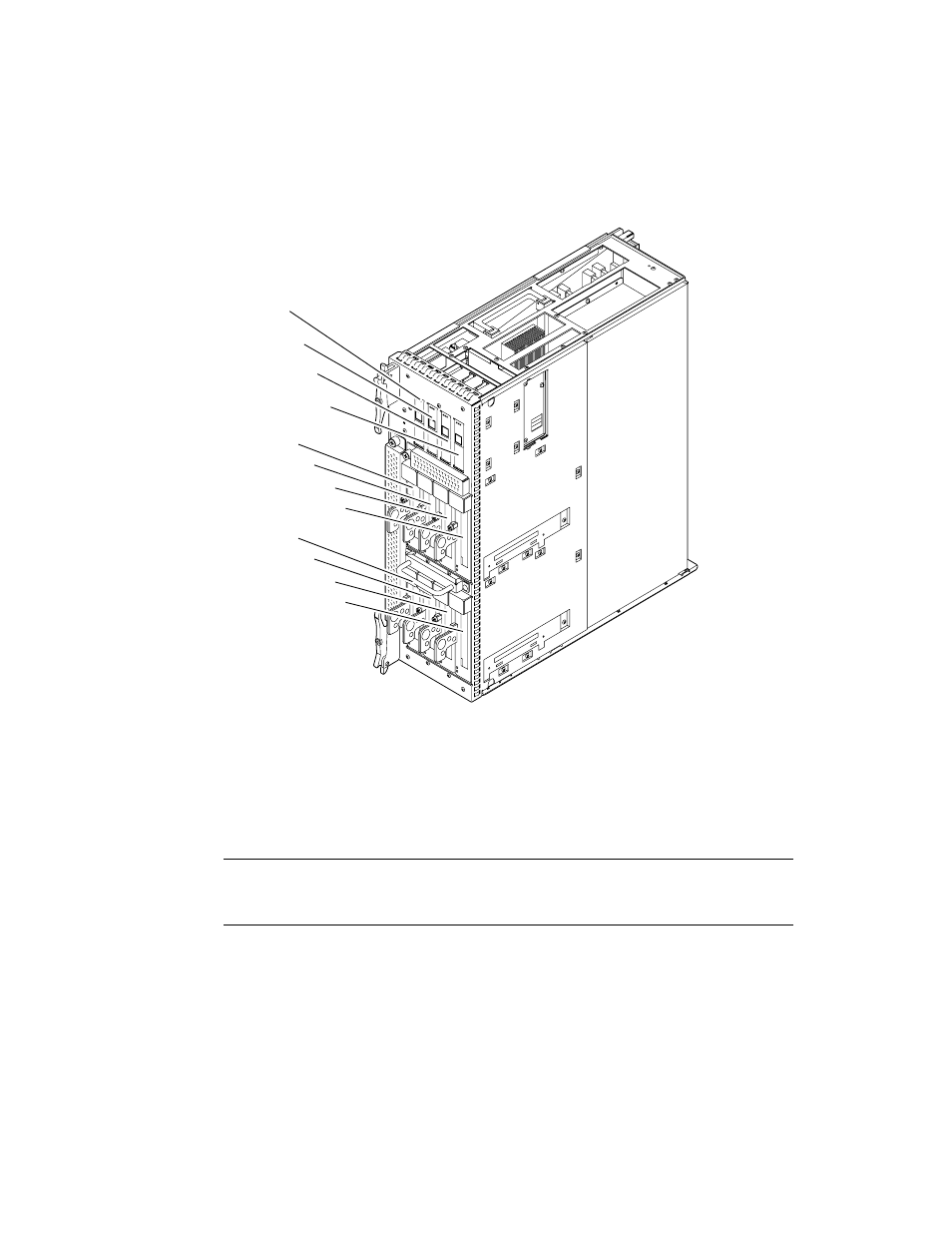

FIGURE 7-10 Locations of PCI Slots and HDDs
9. Mount the replacement IOU by following the removal instructions in Step 6 in
reverse order. Align the IOU with the slot guides, insert it carefully, and secure
it firmly.
Push the eject/lock levers as far as they will go, and then push the knob screws
on the upper and lower eject/lock levers to lock them in position. When the knob
screws remain in position, the IOU is securely mounted.
Note – Mount the dummy (filler) unit in the same manner as IOU. Since the same
levers are used on the dummy (filler) unit, please operate the eject/lock levers in the
same manner.
PCI#4
HDD#0
HDD#1
HDD#2
HDD#3
PCI#5
PCI#6
PCI#7
PCI#0
PCI#1
PCI#2
PCI#3
