Chapter 4

FRU Removal Preparation

4-31

4.5.3.3

SPARC Enterprise M8000 Server Three-Phase Power Feed

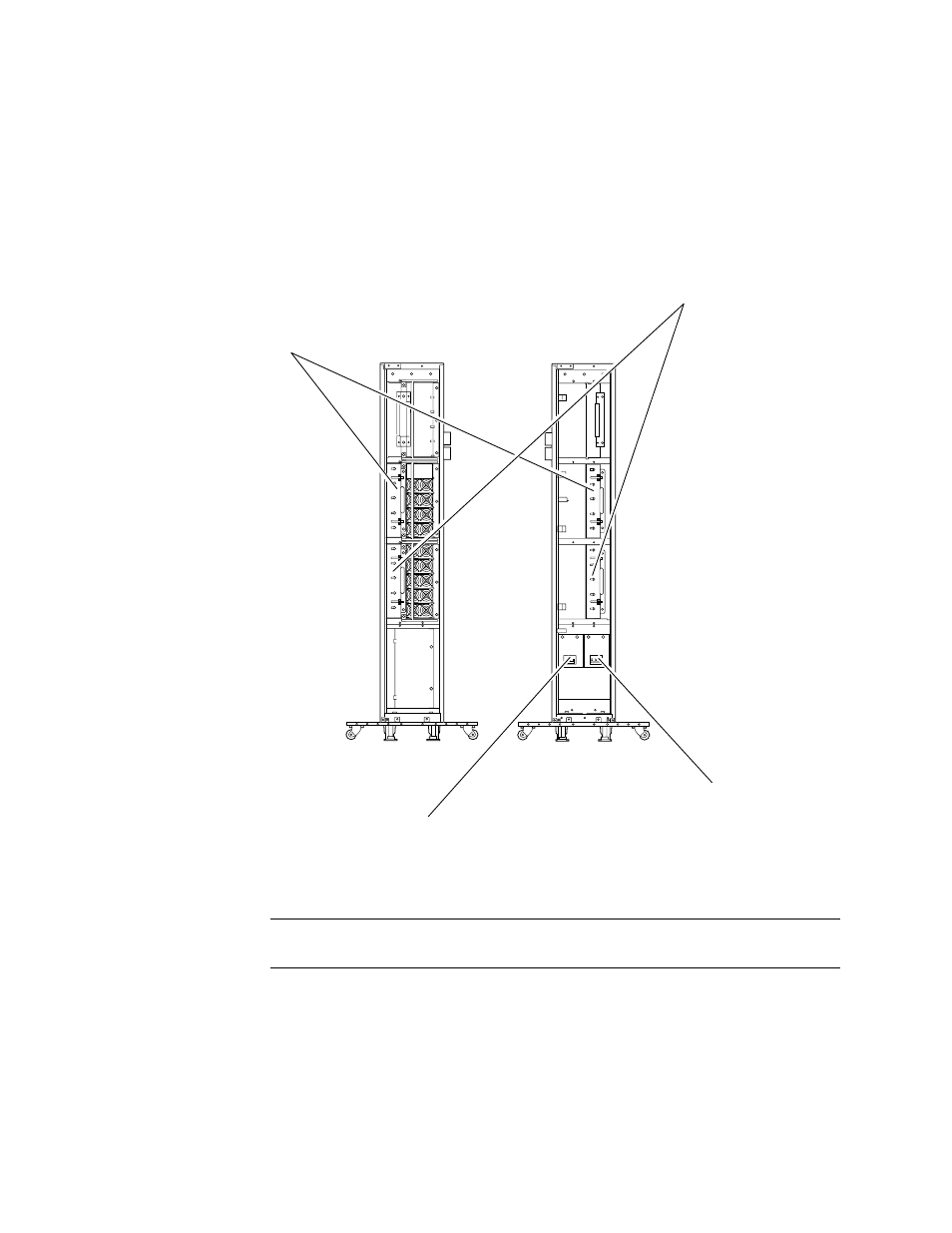

FIGURE 4-6

Main Line Switch Locations (Power Cabinet)

Note –

Same type of switch is used for main line switches in base cabinet and

power cabinet on a system with three-phase dual power feed.

M8000 three-phase power feed:

-Switch (x5)

-ACS_D

M8000 three-phase power feed:

-Switch (x4)

-ACS_D

M8000 three-phase power feed

(for dual power feed option):

-Main line switch (x1)

-ACSTPH_A (delta connection)
or ACSTPH_B (star connection)

M8000 three-phase power feed
(for base power feed):

-Main line switch (x1)

-ACSTPH_A (delta connection)

or ACSTPH_B (star connection)

Front

Rear
