20-4

SPARC Enterprise M8000/M9000 Servers Service Manual • August 2009

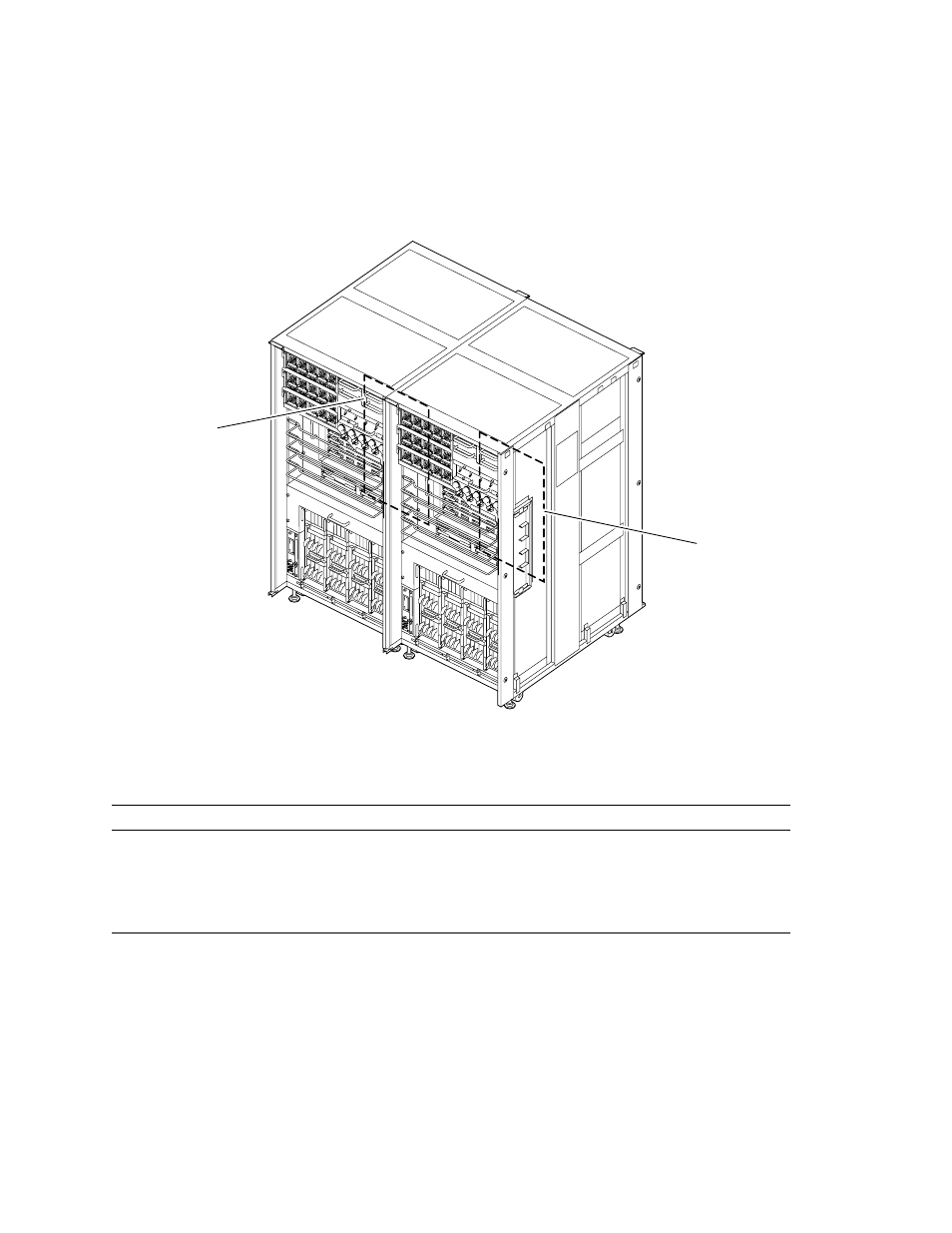

FIGURE 20-3

BP Mounting Locations (Front of M9000 with the Expansion Cabinet)

lists the abbreviated names and numbers of the BPs.

The cold replacement procedure is as follows:

1. Unlock and open a door of the server.

For details, see

TABLE 20-1

Abbreviated Names and Numbers of BPs

Model name

Abbreviated names and numbers

M8000

BP_A

M9000 with the base cabinet

BP_B

M9000 with the expansion cabinet (base cabinet side)

BP_B#0

M9000 with the expansion cabinet (expansion cabinet side)

BP_B#1

Base cabinet

Expansion cabinet

BP_B#0

BP_B#1
