18-4 SPARC Enterprise M8000/M9000 Servers Service Manual • August 2009

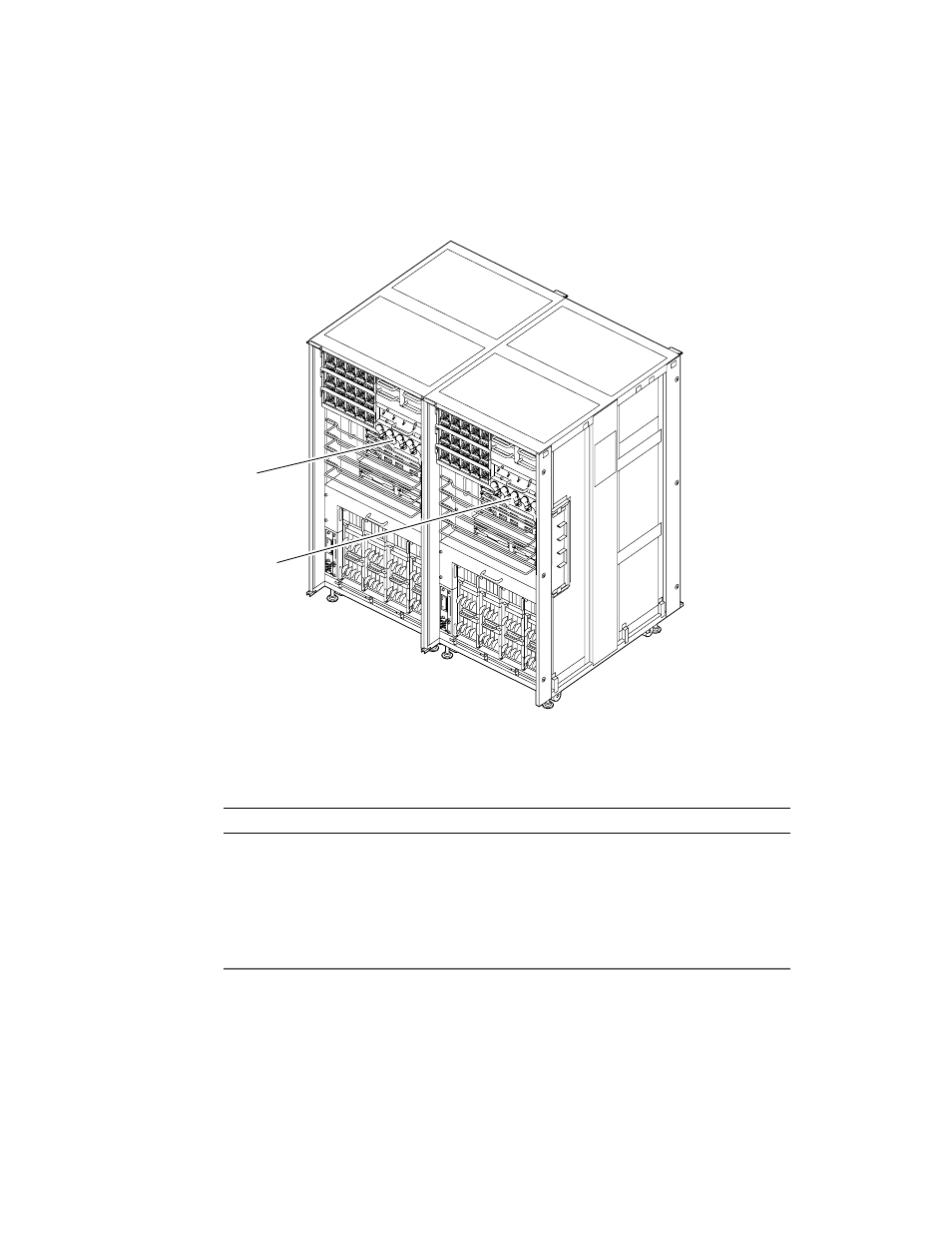

FIGURE 18-3 ACS Mounting Locations (Front of M9000 with the Expansion Cabinet)
TABLE 18-1 lists the abbreviated names and component numbers of the ACSs.
TABLE 18-1 Abbreviated Names and Numbers of ACSs
Model name Abbreviated names and numbers
M8000 ACS_A
M9000 with the base cabinet ACS_B
M9000 with the expansion cabinet (base
cabinet side) ACS_B#0
M9000 with the expansion cabinet
(expansion cabinet side) ACS_B#1
Base cabinet
Expansion cabinet
ACS_B#0
ACS_B#1
