11-8 SPARC Enterprise M8000/M9000 Servers Service Manual • August 2009

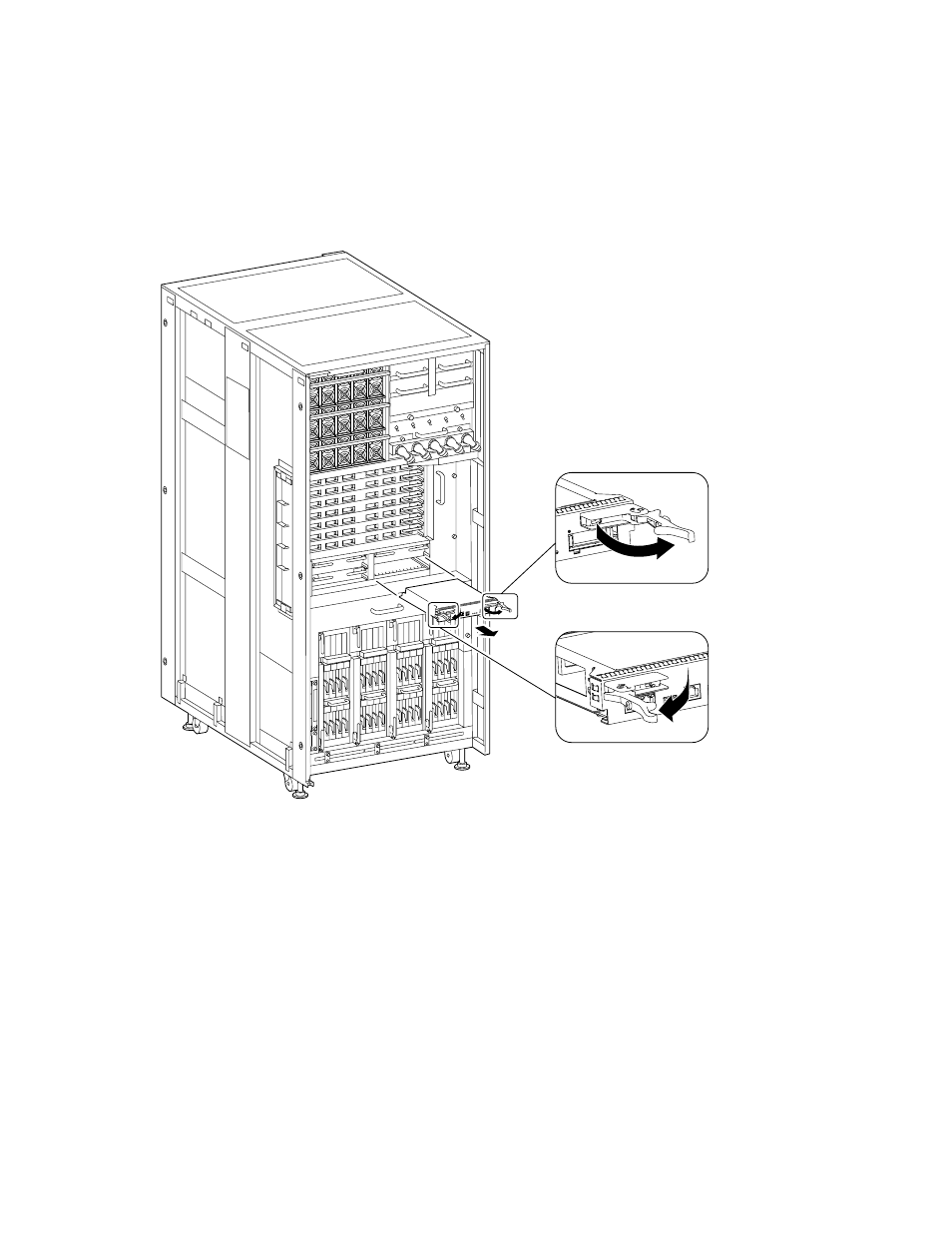

FIGURE 11-6 Removing the XSCFU (Front of the M9000 Base Cabinet)
7. Place the removed XSCFU on an antistatic conductive mat.
8. Mount the replacement XSCFU by following the removal instructions in Step 5
and Step 6 in reverse order. Align the XSCFU with the slot guides, insert it
carefully, and secure it firmly.
Push the levers as far as they will go, and then push the knob screws on the
eject/lock levers to lock them in position. When the knob screws remain in
position, the XSCF unit is securely mounted.
