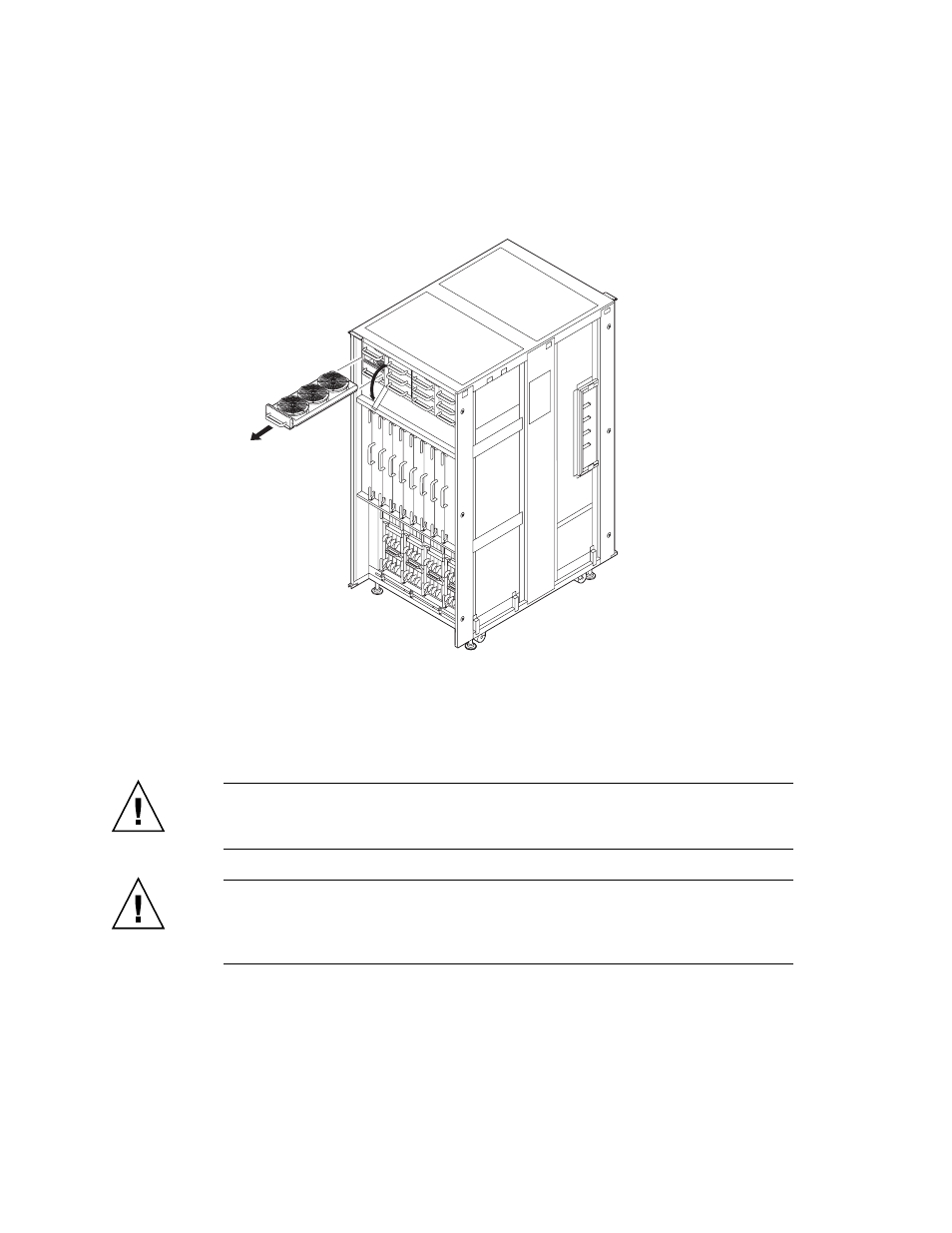

FIGURE 8-11

Removing the FAN Unit (Rear of M9000)

6. Place the removed FAN unit on an antistatic conductive mat.

7. Mount the replacement FAN unit by following the removal instructions in

Step 4

and

Step 5

in reverse order. Align the FAN unit with the slot guides,

insert it carefully, and secure it firmly.

Caution –

Each cabinet contains multiple FAN unit so that the cooling

specifications are satisfied even if one FAN unit fails. When replacing a FAN unit,
however, replace it as quickly as possible.

Caution –

Do not forcibly push the FAN unit when inserting it, even if it is not

moving smoothly. If the FAN unit is forcibly inserted despite the presence of any
obstruction in a slot or any problem with a connector pin, serious damage may
result.
