Figure 11-3 – FUJITSU SPARC ENTERPRISE M8000 User Manual
Page 256
11-4
SPARC Enterprise M8000/M9000 Servers Service Manual • August 2009

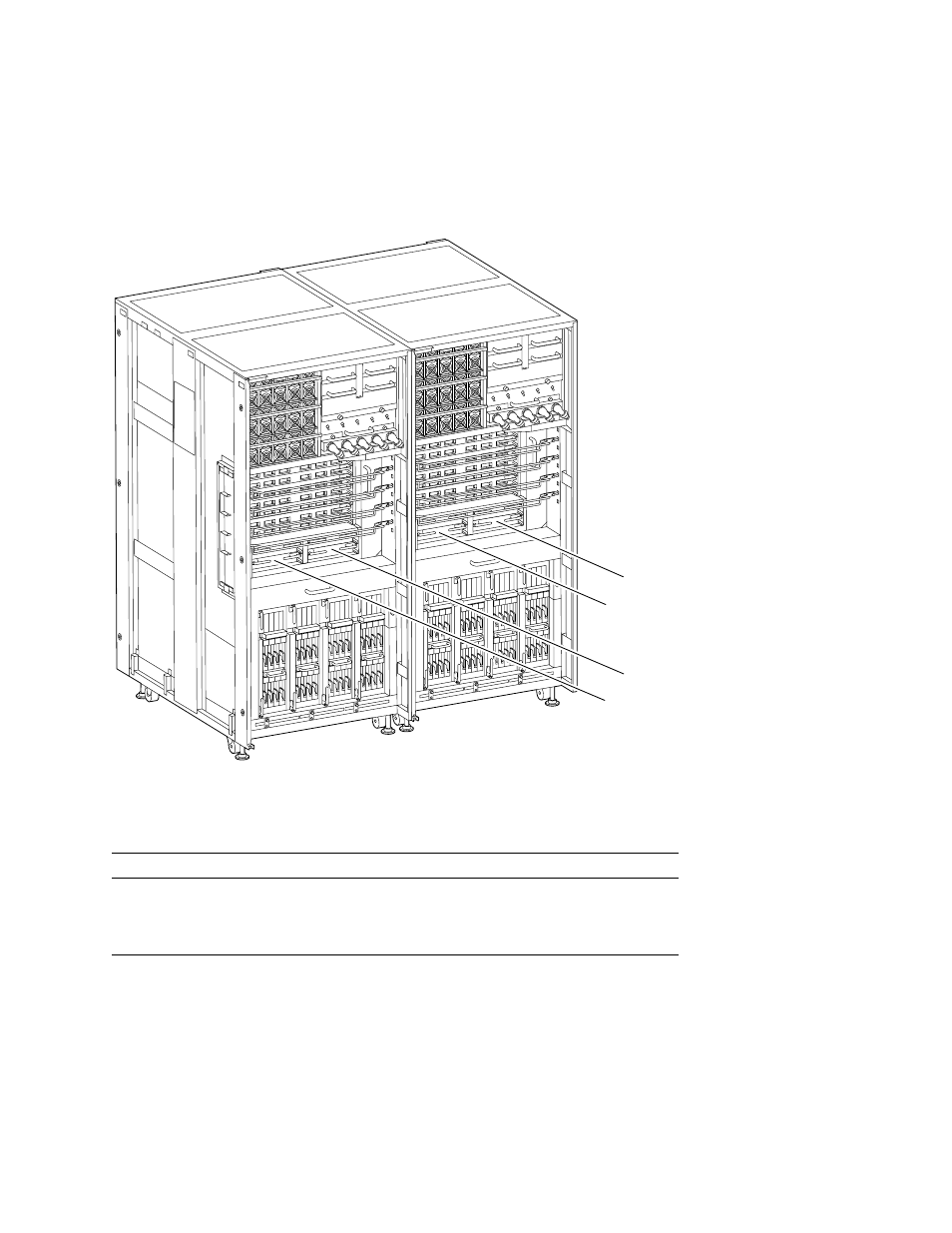

FIGURE 11-3
XSCFU Mounting Locations (Front of M9000 with the Expansion Cabinet)
lists the abbreviated names and component numbers of the XSCFUs.
TABLE 11-1
Abbreviated Names and Component Numbers of XSCFUs
Model name
Abbreviated names and numbers
M8000
XSCFU_B#0, 1
M9000 base cabinet
XSCFU_B#0, 1
M9000 expansion cabinet
XSCFU_C#0, 1
XSCFU_C#0
XSCFU_C#1
XSCFU_B#0
XSCFU_B#1
