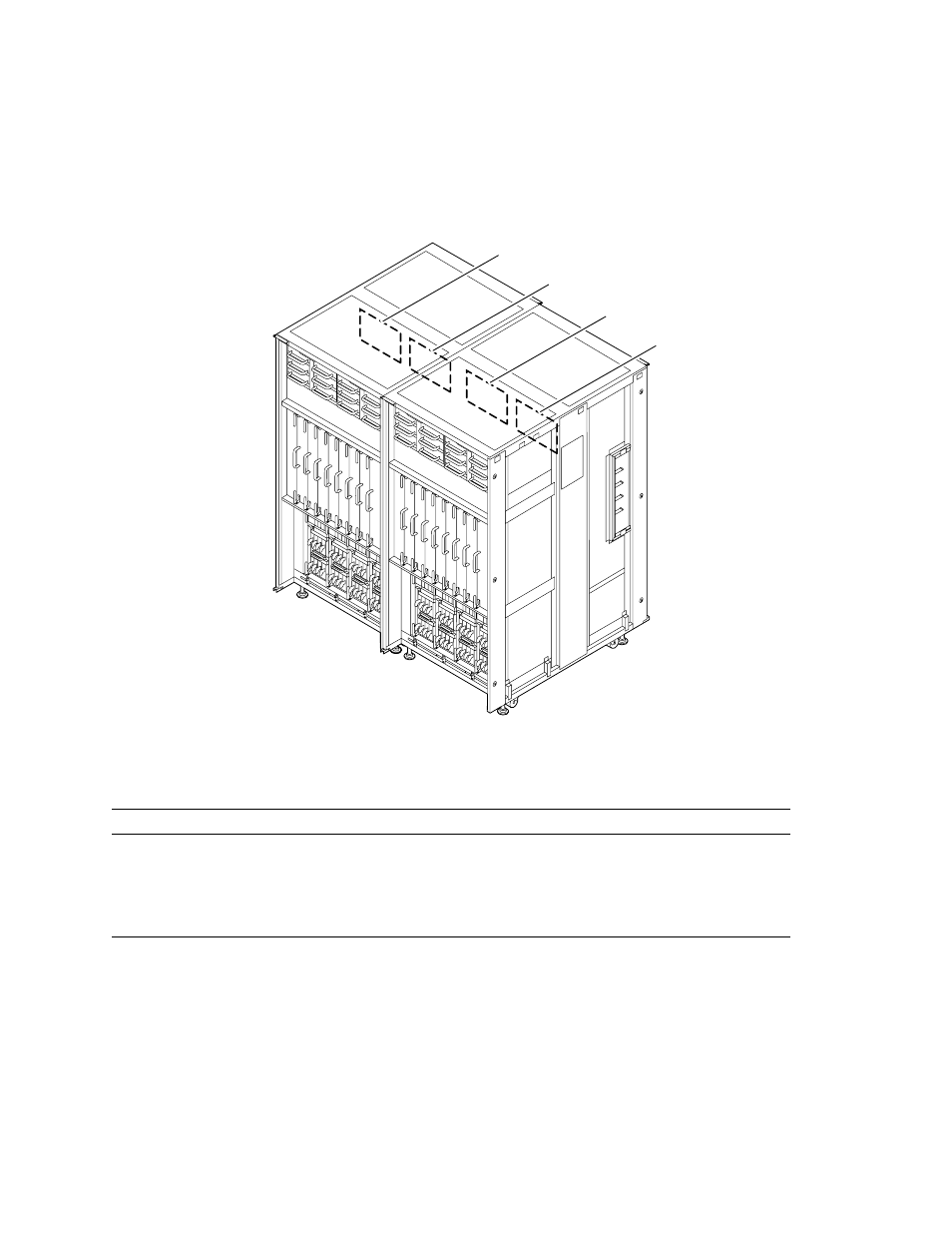

FIGURE 20-15

FANBP Mounting Locations (Rear of M9000 with the Expansion Cabinet)

lists the abbreviated names and component numbers of the FANBPs.

The cold replacement procedure is as follows:

1. Unlock and open a door of the server.

For details, see

TABLE 20-3

Abbreviated Names and Component Numbers of the FANBPs

Model name

Abbreviated names and numbers

M8000

FANBP_C#0 (front), FANBP_C#1 (rear)

M9000 with the base cabinet

FANBP_A, FANBP_B

M9000 with the expansion cabinet (base cabinet side)

FANBP_A#0, FANBP_B#0

M9000 with the expansion cabinet (expansion cabinet side)

FANBP_A#1, FANBP_B#1

Expansion cabinet

Base cabinet

FANBP_A#1

FANBP_B#1

FANBP_A#0

FANBP_B#0
