FUJITSU SPARC ENTERPRISE M8000 User Manual
Page 383
Chapter 20
Backplane Replacement
20-27
a. Using a Phillips screwdriver, loosen two thumb screws on each the left and
right sides of the FANBP (FANBP_A or FANBP_B in the M9000) or three
thumb screws in each the upper and lower parts of the FANBP (FANBP_C in
the M8000).
b. Remove the FANBP.

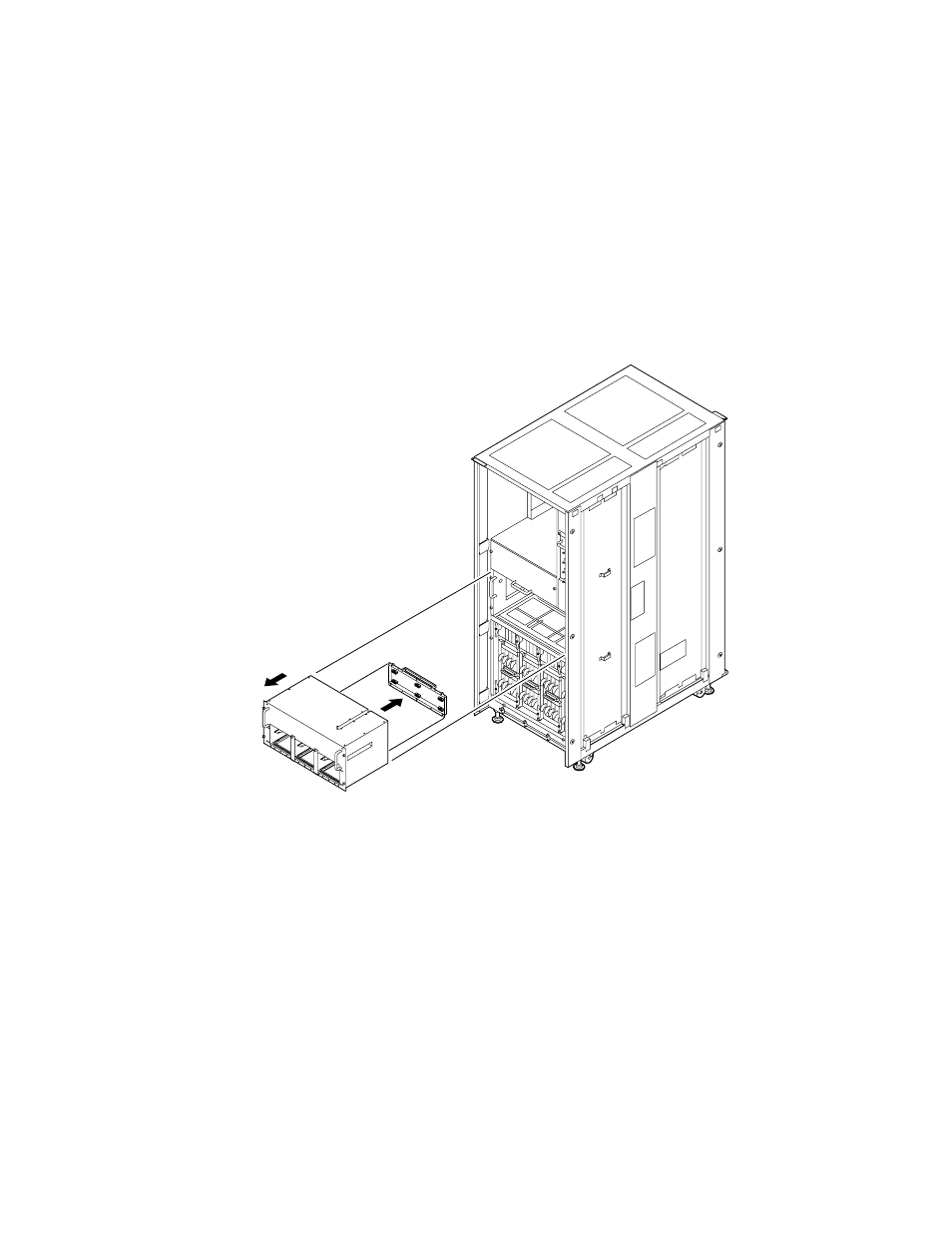

FIGURE 20-16
Removing the FANBP (Rear of the M8000)
