6-32

SPARC Enterprise M8000/M9000 Servers Service Manual • August 2009

2. Attach the replacement CPU Module.

a. Slide and insert the guide pin on the DDC side of the CPU Module along

the groove of the CMU guide lock.

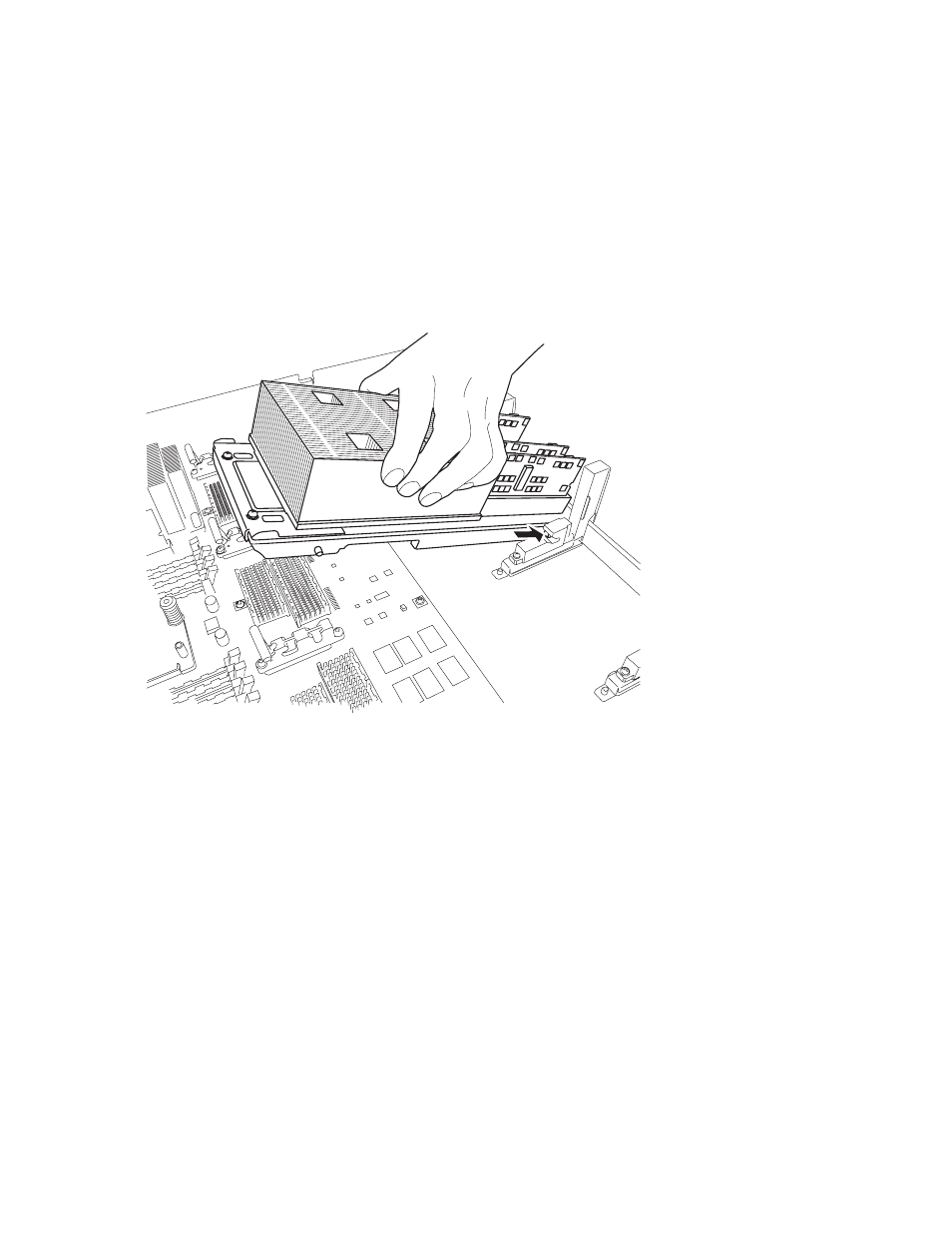

FIGURE 6-14

Set CPU Module on the Guide Lock (1)
