Page 476: B–30
B-30
SPARC Enterprise M8000/M9000 Servers Service Manual • August 2009
B.18
FAN Unit
The FAN unit consists of two to three cabinet cooling FAN units. Two types of FAN
unit are available: the FAN_A type, which is the common FAN unit for SPARC
Enterprise, and the FAN_B type, which is the a dedicated FAN unit for the M8000.
and
show the FAN unit.

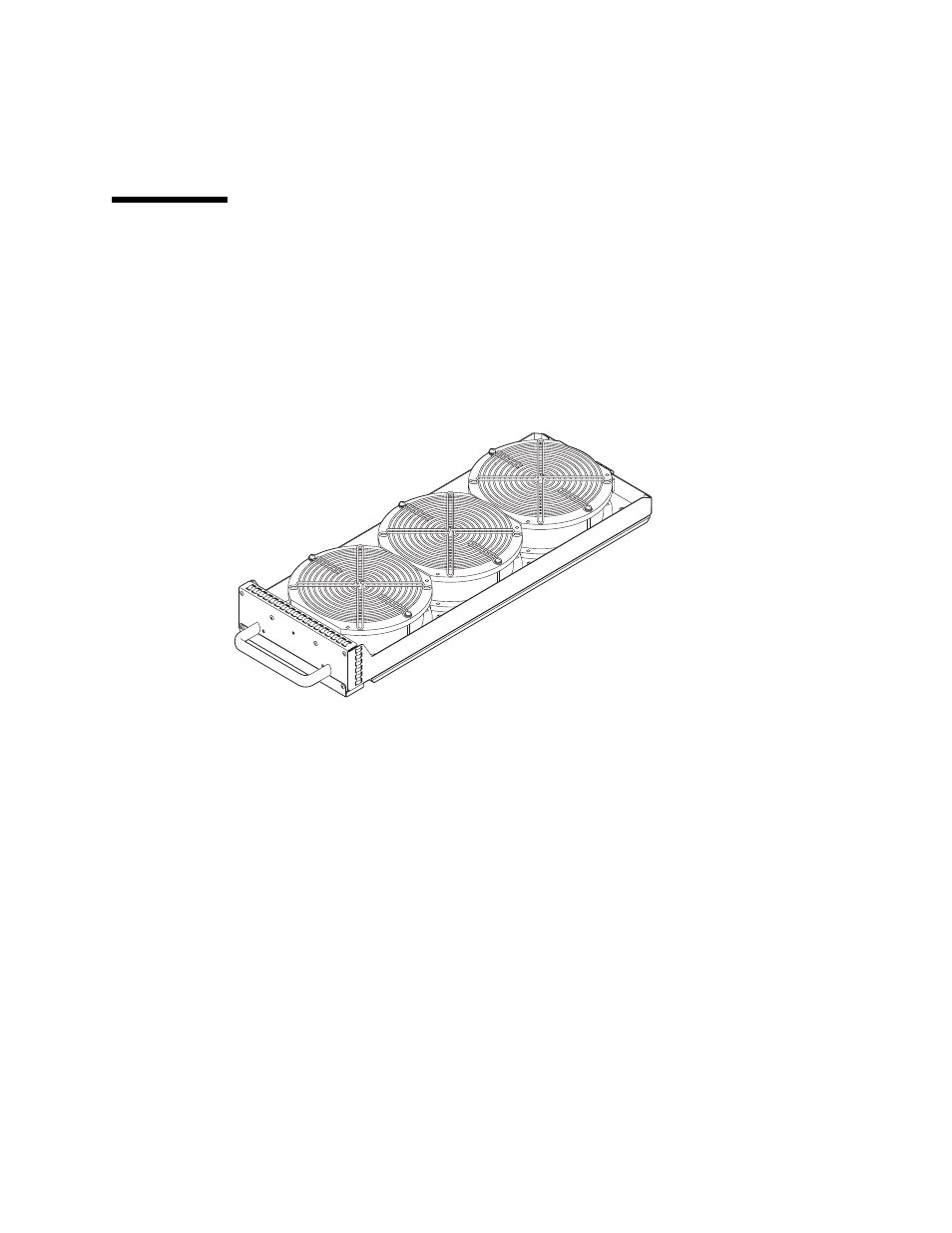

FIGURE B-27
FAN Unit (FAN_A)
