Figure b-26 – FUJITSU SPARC ENTERPRISE M8000 User Manual
Page 475
Appendix B
Components
B-29
■
The ACS_D is an internal current power feed unit for the SPARC Enterprise
M8000 server/SPARC Enterprise M9000 server three-phase dual power feed
cabinet. This unit supplies single-phase current to the server. It does not use
external cables.

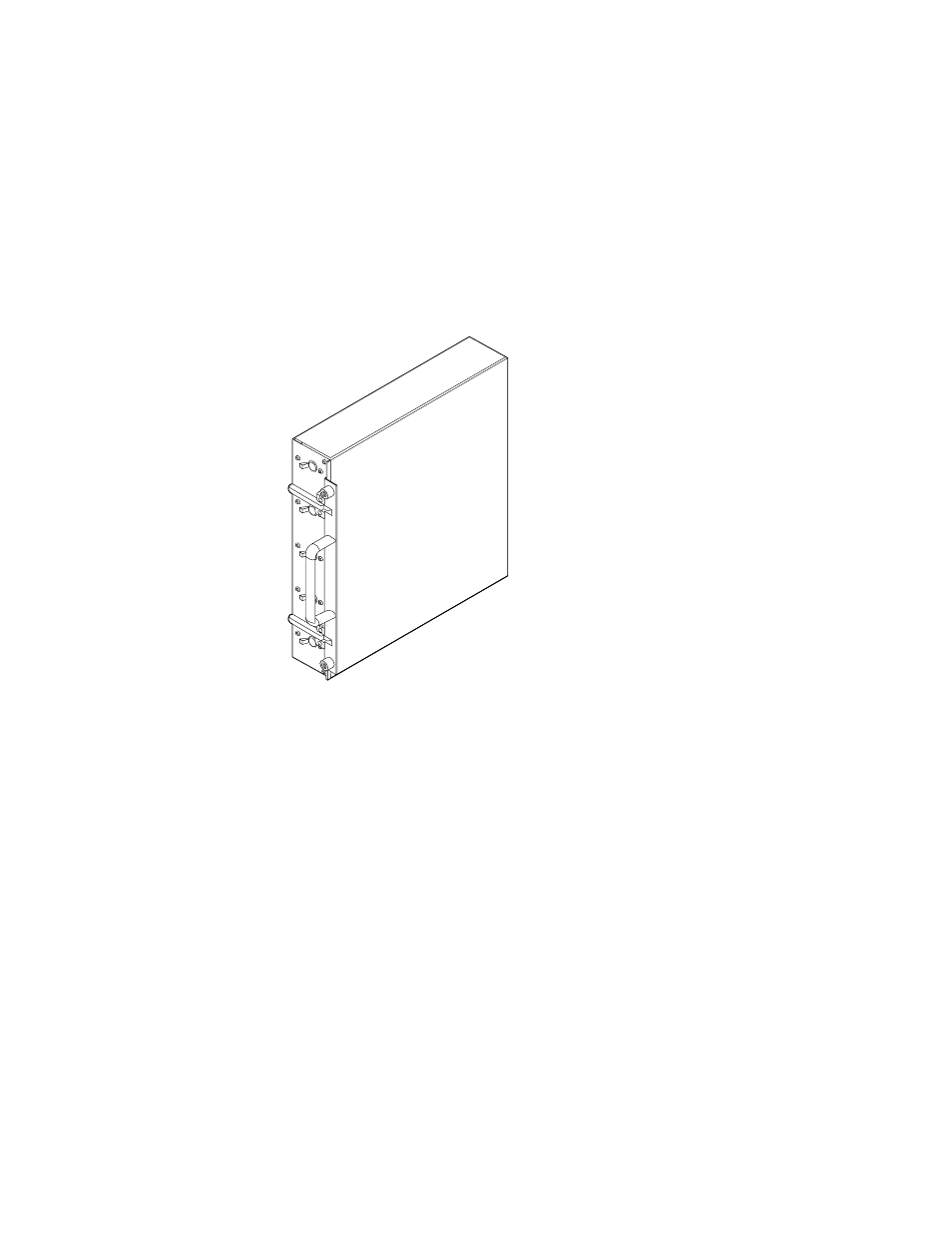

FIGURE B-26
AC Section (ACS_D)
ACS has the following characteristics.
■
Only cold replacement is available for the ACS.
